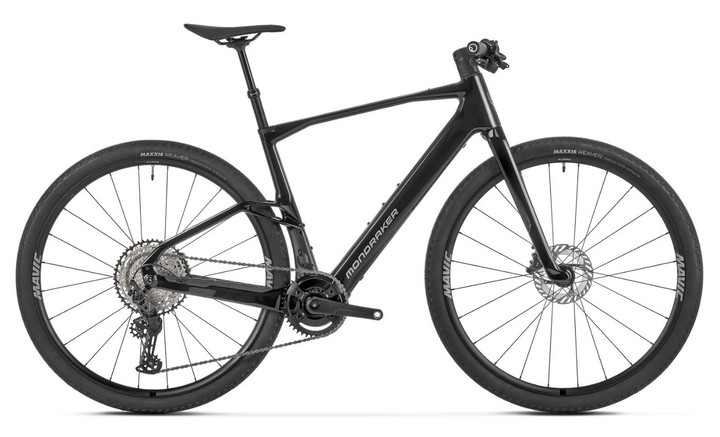

Mondraker Dusty S 580 Flat
ALL-ROUND. ALLROUND READY FOR EVERYTHING.
The new Dusty breaks down the barriers between disciplines to create a new way of thinking about the e-bike. Dusty was born to explore gravel. The all-new Dusty is a full evolution: a second-generation platform that transcends the gravel category entirely and steps into something bigger, something we simply call “all-round”. Because that’s exactly what it is.
Because not every ride needs drop bars.
The Flat Bar models deliver a more upright and confident riding position without sacrificing the Dusty's character. A flat handlebar and dropper seatpost provide extra control on technical descents while adding comfort and confidence to everyday riding, creating a bike that's just as capable in the city as it is beyond it.
BUILT FROM THE INSIDE OUT
A frame designed to take you anywhere.
The new Dusty is built around an all-new Stealth Air Carbon frame, designed from the ground up to deliver the perfect balance of lightweight performance, stiffness and comfort. At just 1.710g, it integrates the entire drive system without compromising Mondraker's unmistakable design language: clean lines, seamless integration and a platform ready for any adventure.
THE MOTOR THAT GETS OUT OF THE WAY.
Natural assistance. Power when you need it.
The new TQ HPR60 drive system delivers 60Nm of torque and up to 200% assistance with an exceptionally natural riding feel. Quiet, lightweight and efficient, it disappears above 25km/h, allowing the bike to keep rolling as naturally as if it had no motor at all.
THREE MODES. ONE DUSTY FOR EVERY RIDE.
Fine-tune the assistance to match your ride.
The Dusty's three assistance modes have been specifically tuned around its Allround philosophy. From maximum efficiency for everyday riding to full power when the terrain demands it, every mode can be easily customized through the TQ E-Bike App.
- FRAME:
- Dusty Stealth Air Carbon, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, Flatmount brake compatible, integrated dropout speed sensor.
- FRAME MATERIAL:
- Carbon
- FORK BRAND:
- Mondraker (Rigid)
- FORK:
- Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
- FORK TRAVEL:
- Rigid Fork
- MOTOR:
- TQ
- MOTOR CONTROLLER:
- Included

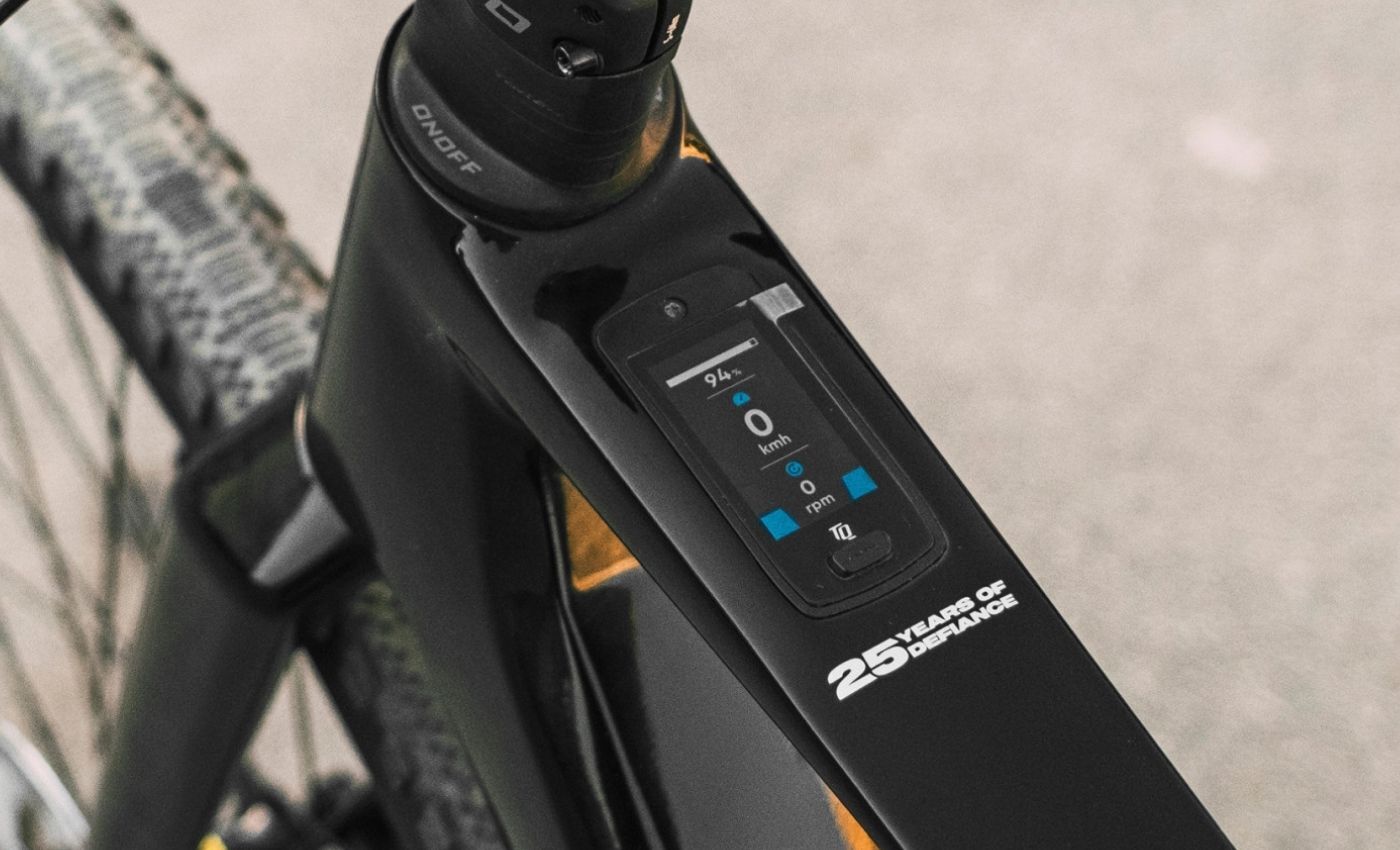

- DISPLAY:
- TQ LED Display with Bluetooth & ANT+ Connectivity
- DRIVE UNIT:
- TQ HPR (60 Nm)
- BATTERY:
- TQ HPR Battery V05 580Wh
- RANGE EXTENDER:
- Available for Purchase
- WHEEL SIZE:
- 700 c
- WHEELS:
- Rims: Mavic Allroad Disc, 25mm internal width, hookless, 28 spokers Front Hub: Mavic, 12x100mm, Centerlock Rear Hub: Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, Centerlock, MS Freehub
- TYRES:
- Maxxis Reaver 700x50, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead
- DROPPER SEATPOST:
- Yes
- SEATPOST:
- X-Fusion Manic, diameter 27,2mm,1X Remote lever, All sizes: 310x100mm
- SADDLE:
- Fizik Vento Argo X5 140mm
- CRANKSET:
- E.13 Piedmont Core E*Spec, S size: 160mm M size: 165mm ML size: 165mm L size: 170mm XL size: 170mm
- STEM:
- Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
- GRIPS:
- Ergon GRX black
- SHIFTERS:
- Shimano SLX SL-M7100-R, Rapid Fire Plus, 12s
- BRAKE BRAND:
- Shimano
- HYDRAULIC BRAKES:
- Yes
- BRAKES:
- Shimano CUES U8000, U8010 flatmount caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
- REAR DERAILLEUR:
- Shimano SLX RD-M7100-SGS, 12s
- CHAIN:
- Shimano SLX CN-M7100, Quick-Link
- NUMBER OF GEARS:
- 12 Speed
- PEDALS:
- Available for Purchase
- EXTRAS:
- N/A
- PLEASE NOTE:
- Mondraker reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials
