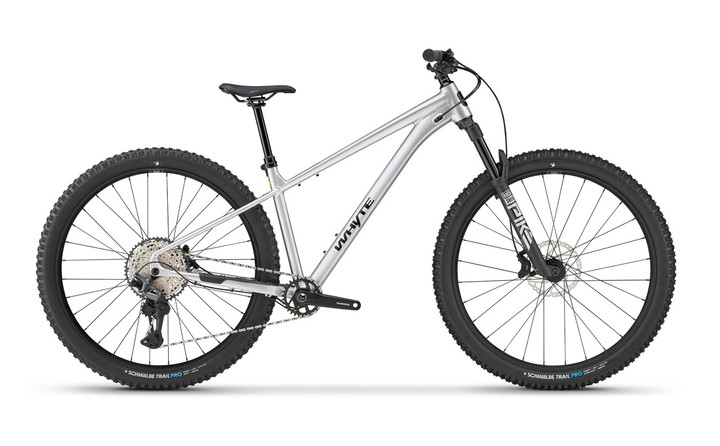

Whyte Secta RSX 2026
The Whyte Secta RSX 2026 is the flagship model in Whyte’s modern trail hardtail range. Built around a lightweight, weatherproof 6061 T6 aluminium frame, it combines progressive geometry with a premium component package designed for fast singletrack, technical climbs and demanding descents.
A 130mm RockShox Pike Select fork provides the support and control needed for rougher trails, while fast-rolling 29in wheels and Schwalbe’s latest radial tyres deliver confident grip across loose, rocky and mixed conditions. Shimano XT 1x12-speed gearing, powerful four-piston brakes and a size-specific TransX dropper complete a hardtail built for aggressive year-round riding.
Fast, capable and ready for anything
The Secta RSX blends Whyte’s progressive 29er geometry with the carefully balanced ride height of a 130mm short-offset fork. A slack 63.5-degree head angle improves stability on steep and technical descents, while size-specific seat angles help place the rider in an efficient position for climbing.
The result is a composed and confidence-inspiring hardtail that remains responsive when the trail tightens. Whether you are tackling a long natural loop, riding technical trail-centre features or pushing harder through fast singletrack, the Secta RSX delivers direct handling without feeling nervous or unpredictable.
RockShox Pike Select suspension
A 130mm RockShox Pike Select fork gives the Secta RSX the control needed to take full advantage of its aggressive geometry. Its DebonAir spring provides a sensitive and supportive feel, while adjustable compression and rebound allow the fork to be tuned around rider weight, terrain and riding style.
The stiff 35mm chassis helps maintain steering accuracy through rough sections and hard compressions, giving the front of the bike a precise and controlled feel when speeds begin to increase.
Shimano XT 12-speed drivetrain
Shimano XT 1x12-speed gearing provides fast, accurate shifting across a wide 10-51T cassette. Paired with a 30T chainring, the drivetrain offers the low gearing required for steep and technical climbs without sacrificing useful range on faster trails and linking sections.
Shimano MT620 four-piston hydraulic disc brakes and 180mm rotors provide powerful, consistent braking at both wheels. This gives the Secta RSX dependable control on steep descents and in the wet conditions for which Whyte bikes are developed.
Schwalbe radial tyres and tubeless-ready wheels
WTB KOM Team rims feature a wide 30mm internal profile and are supplied tubeless compatible. They are paired with a 29 x 2.5in Schwalbe Albert Trail Radial tyre at the front and a Schwalbe Romy Trail Radial at the rear.
This combination balances front-end grip and braking confidence with efficient rear-wheel rolling performance. The radial construction allows the tyre casing to conform more effectively to the trail surface, helping maintain traction across roots, rocks and loose ground.
A frame built for UK conditions
The Secta RSX uses a precision-formed 6061 T6 aluminium frame with sealed internal cable runs and weather-protected cable ports. External routing around the head tube keeps servicing straightforward, while a sealed seatpost collar helps protect the frame against water and trail debris.
A compact seat tube and generous standover clearance create plenty of room to move around the bike. The TransX +RAD dropper provides 150mm of travel on the Small, 170mm on the Medium and 200mm on Large and Extra Large frames, with 30mm of adjustment available to fine-tune the extended height.
Additional frame details include SRAM UDH compatibility, a threaded bottom bracket, Boost rear spacing and mounts beneath the top tube for carrying a tool or spare tube. Clearance for rear tyres up to 29 x 2.6in also leaves useful room for mud when riding throughout the British winter.
Whyte Secta RSX 2026 key specifications
- 6061 T6 precision-formed aluminium hardtail frame
- 130mm RockShox Pike Select fork
- Progressive 29in trail geometry with a 63.5-degree head angle
- Shimano XT M8200 1x12-speed drivetrain
- 10-51T Shimano cassette with 30T chainring
- Shimano MT620 four-piston hydraulic disc brakes
- 180mm front and rear brake rotors
- WTB KOM Team tubeless-compatible rims
- Schwalbe Albert Trail Radial 29 x 2.5in front tyre
- Schwalbe Romy Trail Radial 29 x 2.5in rear tyre
- Size-specific TransX +RAD adjustable dropper post
- SRAM UDH-compatible derailleur hanger
- Raw Silver gloss finish
The Whyte Secta RSX is aimed at riders who want the speed, simplicity and direct response of a hardtail without limiting where or how hard they can ride. Its premium fork, XT drivetrain, powerful brakes and aggressive geometry make it equally suited to all-day adventures and fast, technically demanding trail riding.
Geometry
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A – Reach (mm) | 420 | 445 | 470 | 495 |
| B – Stack (mm) | 649.4 | 644 | 662 | 671 |
| C – Head Angle (° degrees) | 63.5 | 63.5 | 63.5 | 63.5 |
| D – Seat Angle (° degrees) | 75.5 | 76 | 76.5 | 77 |
| E – BB Height (mm) | 298 | 298 | 298 | 298 |
| F – Wheelbase (mm) | 1187.4 | 1215.1 | 1246.4 | 1275.9 |
| G – Rear Centre (mm) | 443.4 | 443.4 | 443.4 | 443.4 |
| H – Standover Height (mm) | TBC | TBC | TBC | TBC |
| I – Seat Tube Length (mm) | 395 | 420 | 445 | 470 |
| J – Head Tube Length (mm) | 105 | 114 | 125 | 135 |
What is Frame Protection and is it worth fitting it to the Secta?
What is tubeless setup and can the Secta be set up tubeless?
What equipment & info will the bike arrive with?
Is it possible to see the Secta in your showroom & is it possible to have a test ride or demo it?
What type of bike is the Secta and what is it designed for?
What type of terrain is the Secta ideally suited towards?
How should you clean & maintain the Whyte Secta RSX?
Can you tell me about the Whyte brand?
I'm new to riding, what essential bits of kit do I need to get going?
Where can I ride the Whyte Secta RSX?
Technical
Where can I find all of the major components that come on the bike?
Can you fit a water bottle on the bike?
What warranty comes on the Whyte Secta RSX?
Does the Whyte Secta RSX come with pedals?
Can I get hold of spare / replacement parts easily for the Whyte Secta RSX?
Can I add upgrades to the bike?
Purchasing
Why choose MTB Monster?
Do you offer 0% finance for the Whyte Secta RSX?
Do you accept Cycle To Work vouchers? How does it work?
I'm still sorting my payment method, can I reserve a bike?
The bike is not yet in stock, can I pre-order one?
How will the bike be delivered & what are the setup requirements?
What are the delivery options?
Can I collect the bike in the store?
I still have more questions, can I speak to someone?
- FRAME:
- 6061-T6 aluminium, multi-shaped tubing; Single Chain Ring (SCR) 1x-specific design; 1.125–1.5in tapered Zero-Stack headtube; full 300mm reamed depth 30.9mm seat tube; Post Mount 180mm disc dropout; SRAM UDH spec derailleur hanger; 12mm x 148mm Boost.
- FRAME MATERIAL:
- Aluminium
- FORK BRAND:
- RockShox
- FORK:
- RockShox Pike Select 29in, 130mm travel, 44mm offset, DebonAir, Fast Black coating, adjustable compression and rebound, tapered steerer, 110mm x 15mm Boost, Maxle Stealth
- FORK TRAVEL:
- 130 mm
- WHEEL SIZE:
- 29
- WHEELS:
- Rims: WTB KOM Team, 30mm internal width, tubeless compatible, 32 hole rear, 28 hole front Rear Hub: Alloy, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole, MS freehub / Front hub Alloy, 15mm x 110mm Boost spacing, 28 hole
- TYRES:
- Schwalbe Albert Trail, Radial, Tubeless, 29in x 2.5in, front; Schwalbe Romy Trail, Radial, Tubeless 29in x 2.5in, rear
- DROPPER SEATPOST:
- Yes
- SEATPOST:
- TranzX +RAD adjustable dropper post, 30.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; size L-XL 200mm drop)
- SADDLE:
- WTB Solano
- CRANKSET:
- Shimano MT510, 32T, 170mm, 52mm chainline
- STEM:
- Whyte alloy, 35mm extension, 31.8mm bar bore
- GRIPS:
- Whyte Enduro lock-on
- SHIFTERS:
- Shimano XT M8200, 12 speed, I Spec EV
- BRAKE BRAND:
- Shimano
- HYDRAULIC BRAKES:
- Yes
- BRAKES:
- Shimano MT620 four piston hydraulic disc brakes with 180mm rotors
- REAR DERAILLEUR:
- Shimano XT M8200, 12 speed
- CHAIN:
- KMC X12 with Quick-Link, 120 links
- NUMBER OF GEARS:
- 12 Speed
- PEDALS:
- Fibre reinforced composite platform
- EXTRAS:
- N/A
- TYPE OF BIKE:
- Trail
- DESIGNED FOR:
- Exploring new trails or going on longer rides where you encounter varied terrain. More relaxed geometry than a Cross Country bike and an excellent balance of climbing ability and downhill capability making it a great all-rounder
- IDEAL TERRAIN:
- Singletrack trails with some technical descents. Up to and including red routes at trail centres.
- PLEASE NOTE:
- Although Whyte have taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.
