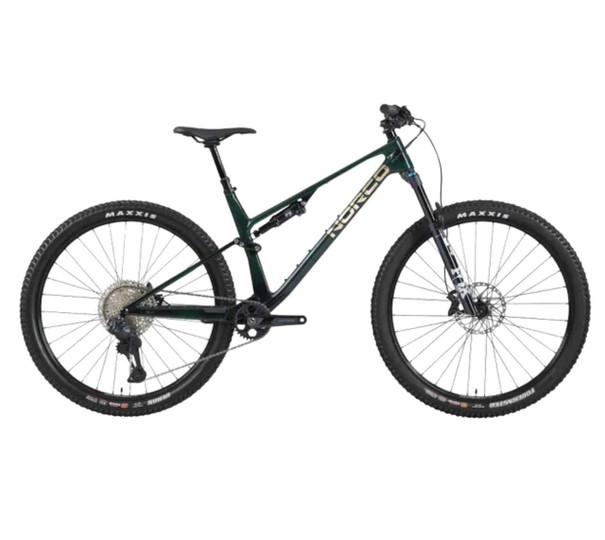

Norco Revolver FS C2 130 2026
The Revolver C2 130 has 130 mm of travel on the front and 120mm on the rear. With a half-degree slacker head tube angle this bike will go double duty on trail rides as well as spicy XC race days. You'll be amazed at what a 130/120 travel bike can do. Unlock all the secret lines—if you love light, fast, and playful all-day adventures, this one is for you.

The Revolver C2 130 is the lightest and most capable full-suspension frame Norco has ever built. At the core of its efficiency is our advanced approach to the Flex-Pivot design, letting us get improved performance out of the lightweight inline shocks we’re spec'ing that would typically be reserved for heavier and larger volume air shocks. With modern, aggressive XC geometry, consistant weight distribution across sizes, and a carbon frame layup optimized per frame size for stiffness and compliance, it’s a strong foundation for driving up and charging down.

With aggressive XC geometry and a carbon frame layup optimized for each frame size to enhance stiffness and compliance, Revolver maintains consistent kinematic and weight distribution across all sizes. It's a strong foundation for any rider to drive up and charge down, beyond the expected.

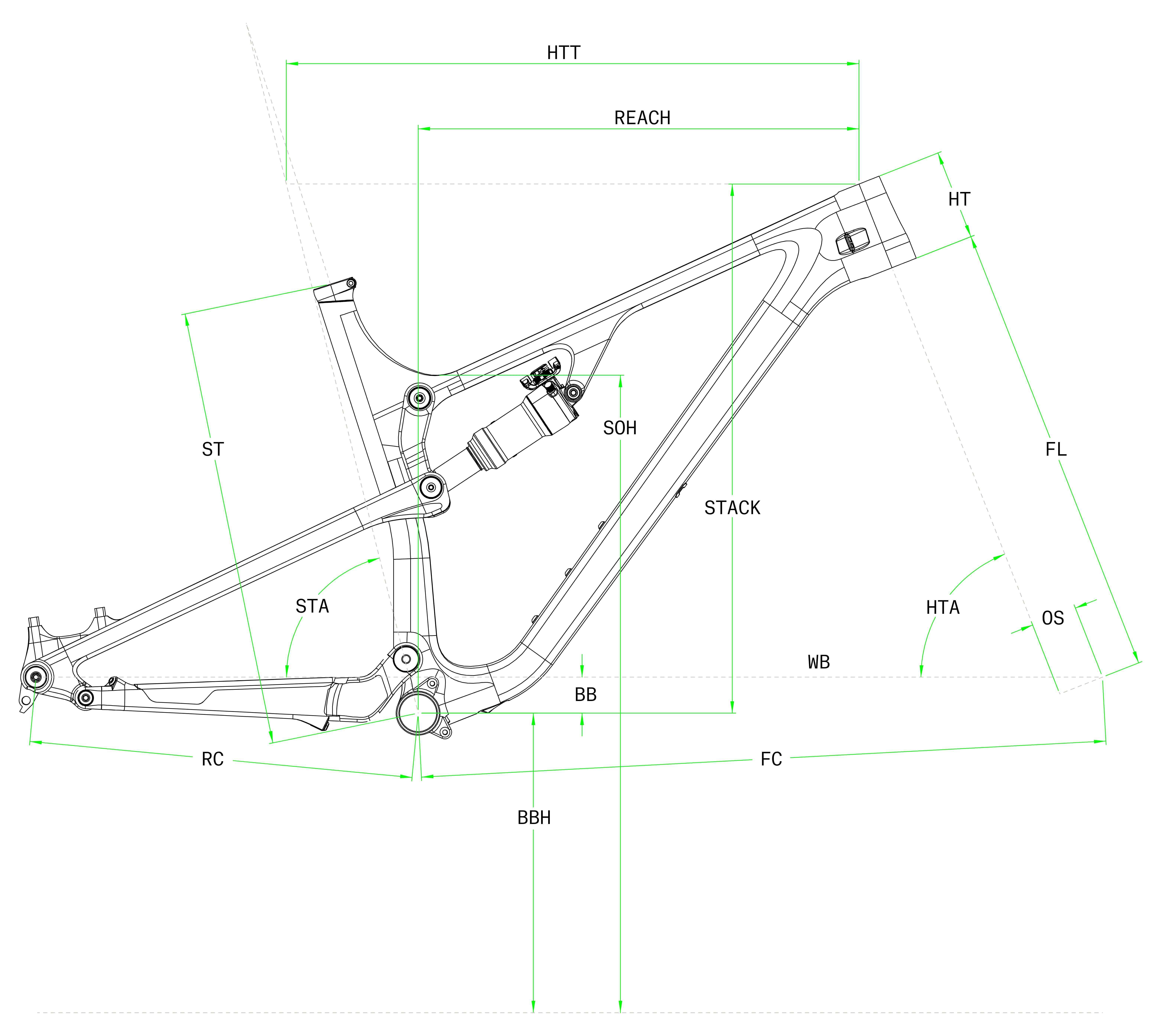

| Geometry | S1 | S2 | S3 | S4 | S5 | |
|---|---|---|---|---|---|---|
| Wheel Size | 29" | |||||
| Travel (F/R) | 130/120mm | |||||
| Reach | 418 | 443 | 468 | 493 | 518 | |
| Stack | 589 | 598 | 607 | 616 | 625 | |
| HTA | Head Angle | 66.5° | ||||
| OS | Fork Offset | 44 | ||||
| ST | Seat Tube | 392 | 434 | 453 | 477 | 491 |
| STA | Eff. Seat Angle | 74.5 | 75 | 75.25 | 75.5 | — |
| RC | Rear Centre | 422 | 426 | 430 | 434 | 438 |
| RC | RC @ Sag | 422 | 426 | 430 | 434 | 438 |
| BB | BB Drop | 32 | ||||
| BBH | BB Height | 342 | ||||
| HTT | Top Tube (Horiz) | 581 | 606 | 631 | 655 | 680 |
| WB | Wheelbase | 1135 | 1168 | 1201 | 1234 | 1267 |
| SOH | Standover | 683 | 687 | 691 | 698 | 704 |
| HT | Head Tube | 90 | 100 | 110 | 120 | 130 |
| Trail | 118 | |||||
| Post Drop | 120 | 120 | 150 | 170 | 200 | |
| Max Insertion | 220 | 220 | 250 | 270 | 300 | |
| Crank Length | 165 | 170 | 170 | 175 | 175 | |
| Bottle Fit | 1x750 | 2x620 | 2x620 | 2x750 | 2x750 | |
FAQs: Norco Revolver C2 130
Basics
What size bike do I need?
What is Frame Protection and is it worth fitting it to the Revolver?
What is tubeless setup and can the Revolver be set up tubeless?
What equipment & info will the bike arrive with?
Is it possible to see the Revolver in your showroom & is it possible to have a test ride or demo it?
What type of bike is the Norco Revolver C2 130 and what is it designed for?
What type of terrain is the Revolver ideally suited towards?
How should you clean & maintain the Norco Revolver C2 130?
Can you tell me about the Norco brand?
I'm new to riding, what essential bits of kit do I need to get going?
Where can I ride the Norco Revolver C2 130?
Technical
Where can I find all of the major components that come on the bike?
Can you fit a water bottle on the bike?
What warranty comes on the Norco Revolver C2 130?
Does the Norco Revolver C2 130 come with pedals?
Can I get hold of spare / replacement parts easily for the Norco Revolver C2 130?
Can I add upgrades to the bike?
Purchasing
Why choose MTB Monster?
Do you offer 0% finance for the Norco Revolver C2 130?
Do you accept Cycle To Work vouchers? How does it work?
I'm still sorting my payment method, can I reserve a bike?
The bike is not yet in stock, can I pre-order one?
How will the bike be delivered & what are the setup requirements?
What are the delivery options?
Can I collect the bike in the store?
I still have more questions, can I speak to someone?
- FRAME:
- Carbon Frame, 120mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
- FRAME MATERIAL:
- Carbon
- FORK BRAND:
- Fox
- FORK:
- Fox 34SL Performance Float 130mm, Grip 2 fork
- FORK TRAVEL:
- 130 mm
- REAR SHOCK:
- Fox Float SL Performance, 190x45mm, standard
- WHEEL SIZE:
- 29
- WHEELS:
- Rims: Stans Arch D, 28mm ID, 32H, 29" Front Hub: Shimano Deore HB-TC500, 15x110mm Boost, 32H, C-lock Rear Hub: Shimano Deore FH-TC500, 148x12 Boost, Microspline, 32H, C-lock
- TYRES:
- Front: Maxxis Forekaster, 3C MaxxTerra EXO, 29x2.40" Rear: Maxxis Rekon, 3C MaxxTerra EXO, 29x2.40"
- DROPPER SEATPOST:
- Yes
- SEATPOST:
- TranzX YSI36, 31.6mm, 120mm (S1, S2) - 150mm (S3) - 170mm (S4) - 200mm (S5)
- SADDLE:
- WTB Silverado Medium
- CRANKSET:
- Shimano Deore FC-M6120, 32T, CL55, 165mm (S1), 170mm (S2,S3), 175mm (S4,S5)
- STEM:
- Alloy CNC, 50mm Length, 35mm Clamp
- GRIPS:
- WTB Wavelength
- SHIFTERS:
- Shimano Deore XT Di2
- WIRELESS SHIFTING:
- Yes
- BRAKE BRAND:
- Shimano
- HYDRAULIC BRAKES:
- Yes
- BRAKES:
- Shimano Deore MT520, 4-Piston, Metallic Pads
- REAR DERAILLEUR:
- Shimano Deore XT Di2
- CHAIN:
- Shimano Deore CN-M6100-12, 12sp
- NUMBER OF GEARS:
- 12 Speed
- PEDALS:
- Available for Purchase
- EXTRAS:
- N/A
- TYPE OF BIKE:
- Cross Country
- DESIGNED FOR:
- Speed and efficiency on the climbs, perfect for covering longer distances quickly due to a lightweight frame.
- IDEAL TERRAIN:
- Smoother, single-track off-road trails with minimal technical features. Can be used for both road and off-road riding.
- PLEASE NOTE:
- Norco reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.
