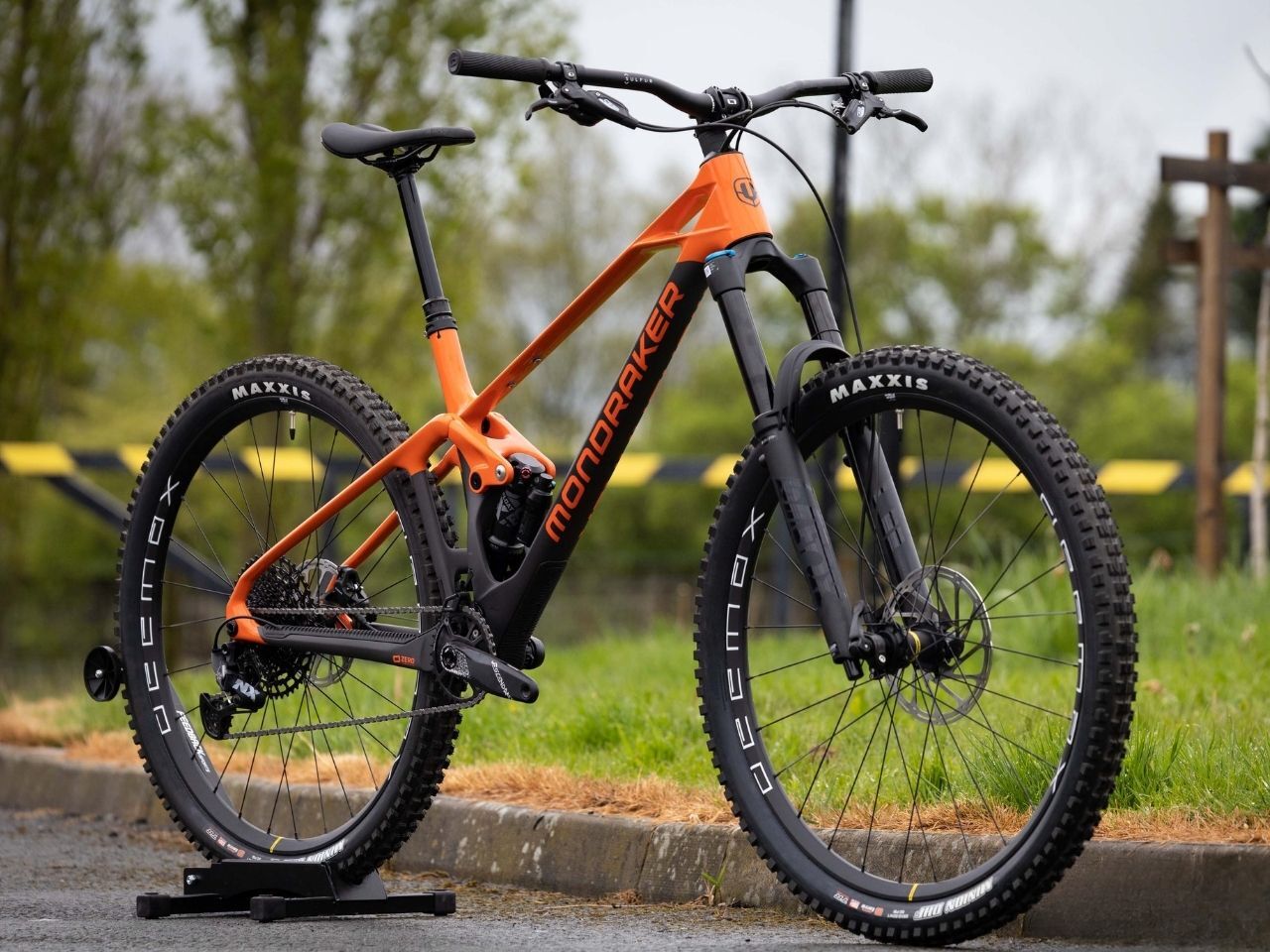

Mondraker Foxy Carbon R
The FOXY CARBON R is the most economical of the carbon framed models, yet maintains exactly the same frame as that of the XR and RR CARBON. It comes equipped with Fox suspension, 160mm up front and 150mm at the rear. It’s equipped with SRAM’s NX Eagle 12-speed transmission, e*thirteen’s LG1 Plus Enduro wheels, SRAM’s G2 R 4-piston brakes and ONOFF components, the latter highlighting the Pija telescopic seatpost. The geometry change kit is optional on this model.

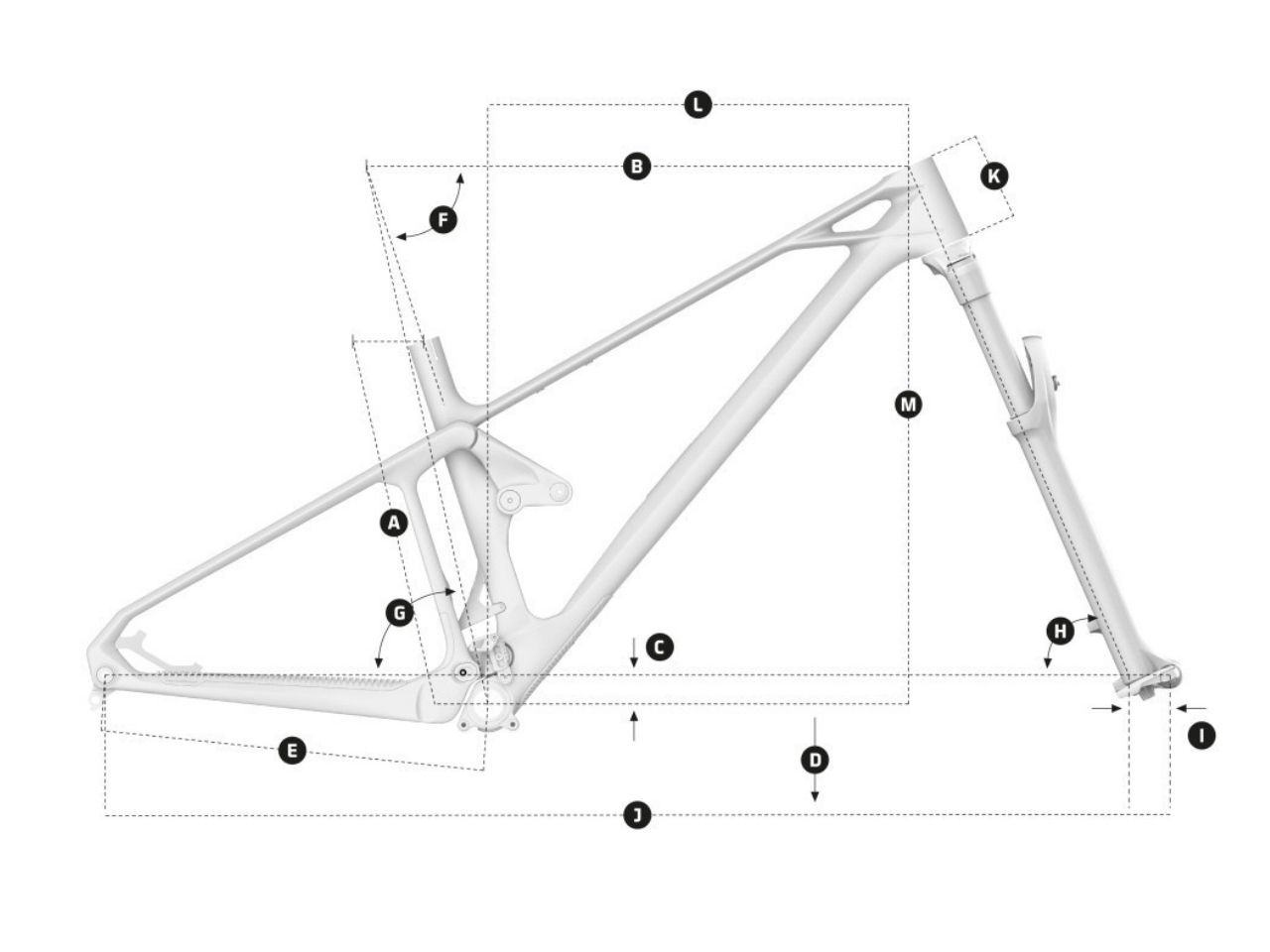

| FRAME SIZE | S [STD/LOW] | M [STD/LOW] | L [STD/LOW] | XL [STD/LOW] | |
|---|---|---|---|---|---|
| A | Seattube length | 375 mm | 415 mm | 445 mm | 500 mm |
| B | Toptube length | 600 mm | 620 mm | 650 mm | 670 mm |
| C | Bottom bracket drop | -23/-28 mm | -23/-28 mm | -23/-28 mm | -23/-28 mm |
| D | Bottom bracket height | 350 mm/345 mm | 350 mm/345 mm | 350 mm/345 mm | 350 mm/345 mm |
| E | Chainstay length | 435 mm/445 mm | 435 mm/445 mm | 435 mm/445 mm | 435 mm/445 mm |
| F | Seat tube angle | 70.5°/70° | 70.5°/70° | 70.5°/70° | 70.5°/70° |
| G | Effective seattube angle | 76°/75.5° | 76°/75.5° | 76°/75.5° | 76°/75.5° |
| H | Headtube angle | 65°/64.5° | 65°/64.5° | 64.5° | 65°/64.5° |
| I | Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| J | Wheelbase | 1203 mm/1210 mm | 1227 mm/1233 mm | 1253 mm/1260 mm | 1279 mm/1286 mm |
| K | Headtube length | 90 mm | 100 mm | 115 mm | 130 mm |
| L | Reach | 445 mm/440 mm | 465 mm/460 mm | 485 mm/480 mm | 505 mm/500 mm |
| M | Stack | 615 mm/617 mm | 617 mm | 637 mm/641 mm | 651 mm/656 mm |
- FRAME:
- Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, En
- FRAME MATERIAL:
- Carbon
- FORK BRAND:
- Fox
- FORK:
- Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
- FORK TRAVEL:
- 160 mm
- REAR SHOCK:
- Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
- WHEEL SIZE:
- 29
- WHEELS:
- Rims: e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes Front Hub: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts Rear Hub: e*thirteen Boost 12x148mm, triple-seal
- TYRES:
- Front: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead Rear: Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
- DROPPER SEATPOST:
- Yes
- SEATPOST:
- ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
- SADDLE:
- SDG BEL-AIR 3.0, LPU foam, steel rails
- CRANKSET:
- Truvativ Descendant 6K Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
- STEM:
- ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
- GRIPS:
- ONOFF Desert, 1lock-on, 135mm
- SHIFTERS:
- Sram Trigger NX Eagle, 12s, X-Actuation 1:1
- BRAKE BRAND:
- SRAM
- HYDRAULIC BRAKES:
- Yes
- BRAKES:
- Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
- REAR DERAILLEUR:
- Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
- CHAIN:
- Sram NX Eagle, 12s, Powerlock
- NUMBER OF GEARS:
- 12 Speed
- PEDALS:
- Available for Purchase
- EXTRAS:
- N/A
- TYPE OF BIKE:
- Trail / All Mountain
- DESIGNED FOR:
- Exploring new trails or going on longer rides where you encounter varied terrain. More relaxed geometry than a Cross Country bike and an excellent balance of climbing ability and downhill capability making it a great all-rounder
- IDEAL TERRAIN:
- Singletrack trails with some technical descents. Up to and including red routes & black routes at trail centres.
- PLEASE NOTE:
- Mondraker reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials
