Amflow PX Carbon 2027 - Latest AVINOX M2S EMTB
The Amflow PX Carbon 2027 is Amflows latest EMTB - for a brand that has quickly disrupted the e-MTB landscape. Developed through the Avinox platform, Amflow has focused from the outset on integrating motor technology as the foundation of the bike, shaping a ride experience that feels intuitive, balanced and connected to the trail.

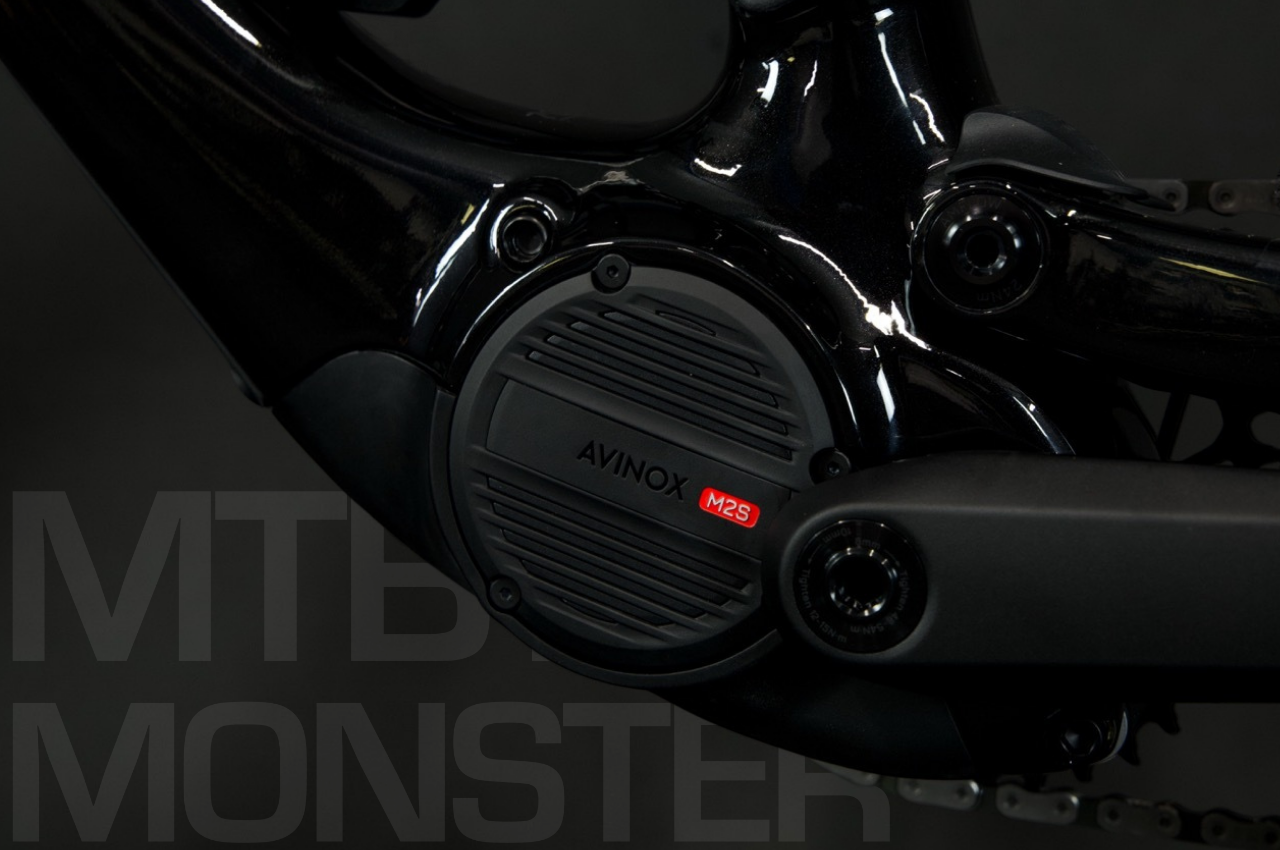

AVINOX M2S DRIVE SYSTEM
Driving the PX Carbon is the latest Avinox M2S motor system, a unit that has rapidly earned recognition for its balance of power, precision and responsiveness. Advancing on from the previous Avinox platform - it delivers a level of integration and control that sets a new benchmark for how e-MTB systems perform on real terrain.
MOTOR FEATURES
POWERFUL
• 130Nm torque | 150Nm torque in Boost Mode
• 1500w Peak Power in Boost Mode | 250w Nominal Power
• 800% Assistance level
COMPACT
• 107mm (H) x 172mm (L)
• 2.65kg
ADVANCED
• Multi Sensor Fusion Algorithm
• Built in IMU; torque/cadence/wheel speed sensors; barometer;
compass; ambient light sensor
• Speed Sensor acts like traction control with seamless assistance
transfer from pedal to rear tyre for predictable traction everywhere
DURABLE
• IP66 rated water protection

Riding Assistance Modes
ECO | Efficiently enhance long-range riding. Features lower assistance for tackling flatter terrain.
AUTO | Utilise the multi-sensor fusion to automatically and continuously adjust assistance based on riding resistance.
TRAIL | Aimed at mixed technical trails, enabling riders to effectively
overcome terrain challenges.
TURBO | Assists with steep climbs and empowers riders to navigate challenging obstacles and terrain.
BOOST | Up to 60 seconds of 150Nm torque and max 1500 Watts power
output for extreme terrain.

What is the weight of the Amflow PX Carbon 2027?
The Amflow PX Carbon - is in the 20kg class.

Cutting-Edge Endurance: The 700Wh Avinox Battery System
The Amflow PX Carbon features the revolutionary 700Wh Avinox FP700 battery, a unit that successfully challenges the traditional trade-off between weight and range. By utilizing high-density automotive-grade cells, Amflow has achieved a class-leading energy density of 220Wh/kg. This allows for a massive 144km range while keeping the battery weight to a remarkably lean 3.18kg, ensuring the bike maintains its agile, flickable handling on technical trails.
This next-generation battery system isn't just about capacity; it’s about rapid recovery. The included 12A/508W GaN charger is compact and lightweight, making "Charge Fast, Ride Free" a reality for UK riders. Whether you’re stopping for a quick pub lunch or a mid-session break, the 3x super-fast charging ensures you spend more time on the dirt and less time at the wall:
-
0% to 80% charge: Approximately 1 hour 16 minutes.
-
0% to 100% charge: Approximately 1 hour 46 minutes.
Designed to eliminate range anxiety on even the most ambitious all-day epics, the FP700 battery provides the sustained power delivery required to fully unlock the Avinox M2S motor, making it the ultimate power source for the modern eMTB.
The Perfect All-Rounder
What sets Amflow apart is its approach to the complete riding experience. Every element is designed to work in harmony, creating a bike that feels cohesive, capable and intuitive, whether climbing technical terrain or carrying speed through demanding trails. This focus on “flow” is central to the brand, shaping bikes that respond naturally to rider input while maintaining the support expected from a full-power system.

Built-in Display, Smartphone Connectivity
The brain of the Avinox Drive System is the Control Display. This 2-inch full-color OLED touchscreen is integrated directly into the frame. It displays real-time ride data and estimated range, and enables quick changes of the display content with a simple slide.

Smart Heart Rate Control
No complex parameter settings are required. Riders simply set a target heart rate zone in the Avinox Ride app and pair a heart rate monitor. The drive system then automatically adjusts drive unit output based on real-time data, keeping you in the optimal heart rate zone to ensure safety.

Amflow 2027 Reviews & Comparison Tools
Curious how the PX stacks up against the more utility-focused PR? Use our on-page Compare Tool to see why the PX is the definitive choice for high-tier performance.
-
Comparing them side-by-side makes it easy to spot the key differences that affect your ride:
-
Battery Configuration: Compare the PR’s removable 800Wh battery system against the PX’s integrated 700Wh setup.
-
Motor Systems: View the 125Nm Avinox M2 (Standard PR) vs. the flagship 150Nm M2S (PR Pro & PX) specs.
-
Frame & Weight: Contrast the reinforced PR chassis with the ultra-lightweight PX carbon layup.
-
Component Tiering: Compare suspension travel, wheelsets, and drivetrain options across the 2027 range.
Amflow PX & PR | Buyers Guide | Differences and Comparison

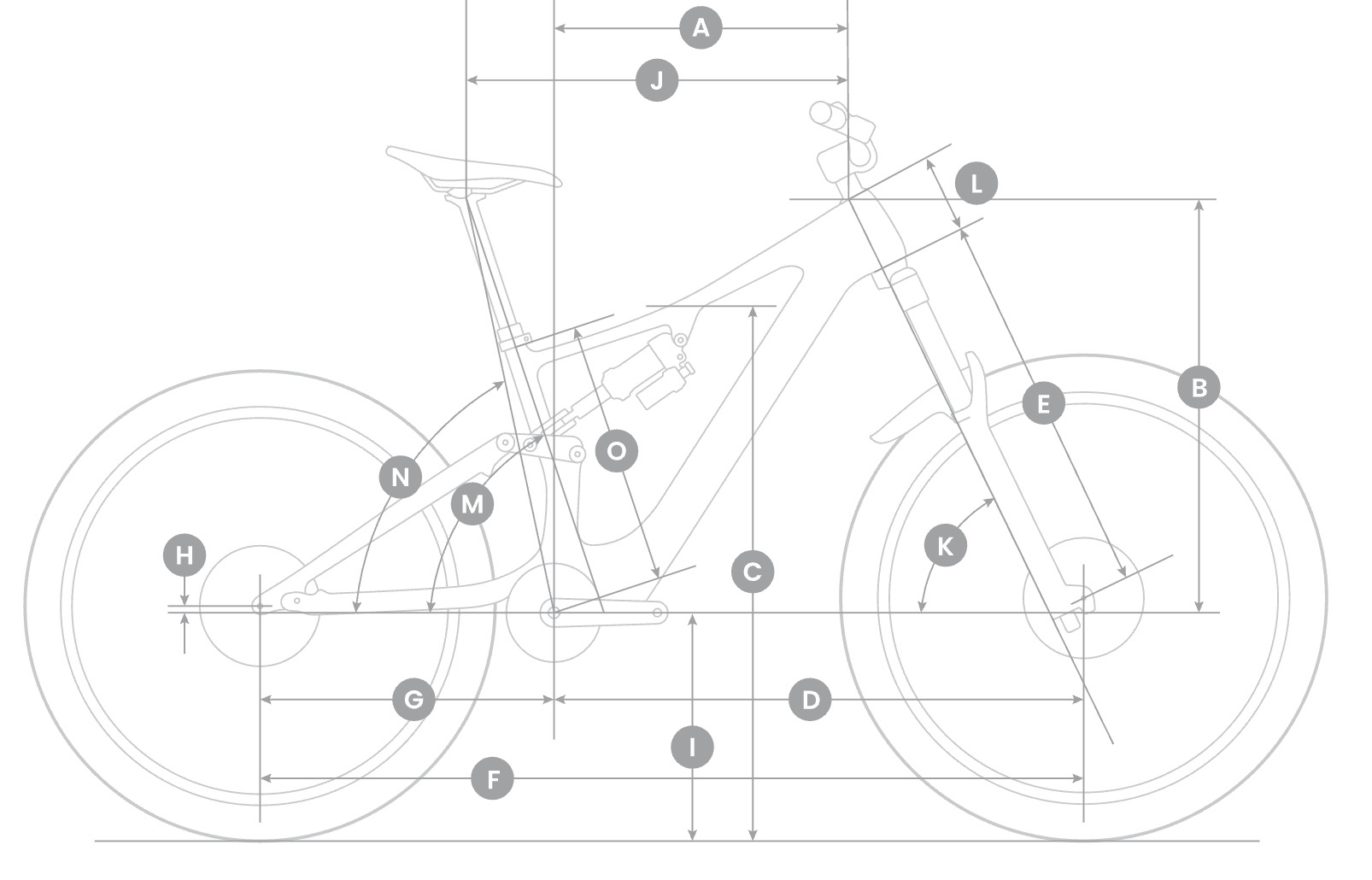

Geometry

| ID | Measurement | M | L | XL | XXL |
|---|---|---|---|---|---|
| A | Reach (mm) | 455 | 478 | 503 | 528 |
| B | Stack Height (mm) | 622.1 | 632.2 | 645.9 | 659 |
| C | Standover Height (mm) | 780 | 785 | 790 | 795 |
| D | Front Center (mm) | 793.1 | 820.9 | 852 | 883.9 |
| E | Fork Length (mm) | 570 | 570 | 570 | 570 |
| F | Wheelbase (mm) | 1231.3 | 1259.1 | 1290.2 | 1322.1 |
| G | Chainstay Length (mm) | 438/451 | 438/451 | 438/451 | 438/451 |
| H | Bottom Bracket Drop (mm) | 10.5/23.7 | 10.5/23.7 | 10.5/23.7 | 10.5/23.7 |
| I | Bottom Bracket Height (mm) | 345.5 | 345.5 | 345.5 | 345.5 |
| J | Effective Top Tube Length (mm) | 586.9 | 619.7 | 642.8 | 672.2 |
| K | Head Tube Angle | 64.2 | 64.2 | 64.2 | 64.2 |
| L | Head Tube Length (mm) | 109 | 120 | 135 | 150 |
| M | Actual Seat Tube Angle | 72° | 72° | 72° | 72° |
| N | Effective Seat Tube Angle | 78° | 78° | 78° | 77.7° |
| O | Seat Tube Height (mm) | 415 | 427 | 447 | 466 |
FAQs: Amflow PX Carbon 2027
Basics
What size bike do I need?
What is Frame Protection and is it worth fitting it to the PX?
What is tubeless setup and can the PX be set up tubeless?
What equipment & info will the bike arrive with?
Is it possible to see the PX in your showroom & is it possible to have a test ride or demo it?
What type of bike is the PX and what is it designed for?
What type of terrain is the PX ideally suited towards?
Can the Amflow PX Carbon 2027 get wet and muddy?
How should you clean & maintain the Amflow PX Carbon 2027?
Can you tell me about the Amflow brand?
I'm new to riding, what essential bits of kit do I need to get going?
Where can I ride the Amflow PX Carbon 2027?
Technical
Where can I find all of the major components that come on the bike?
Can you fit a water bottle on the Amflow PX Carbon 2027?
What warranty comes on the Amflow PX Carbon 2027?
Does the Amflow PX Carbon 2027 come with pedals?
Can I get hold of spare / replacement parts easily for the Amflow PX Carbon 2027?
Are electric bikes legal? How fast can the Amflow PX Carbon 2027 go?
Do I need a license to ride the Amflow PX Carbon 2027 in the UK?
Can I add upgrades to the bike?
What is the difference between the new Amflow PX and PR models?
Electric / Battery
How should I store the bike?
What is the battery lifespan on a Amflow PX Carbon 2027?
Are Lithium-Ion batteries safe?
Is the internal battery removable on the Amflow PX Carbon 2027?
What is the expected range of the battery on the Amflow PX Carbon 2027?
What is a range extender and can you add one to the Amflow PX Carbon 2027?
Does the bike arrive fully charged and ready to go?
How to charge the battery on the Amflow PX Carbon 2027?
How long does it take to charge the battery?
How is the motor protected ?
Purchasing
Why choose MTB Monster?
Do you offer 0% finance for the Amflow PX Carbon 2027?
Do you accept Cycle To Work vouchers? How does it work?
I'm still sorting my payment method, can I reserve a bike?
The bike is not yet in stock, can I pre-order one?
How will the bike be delivered & what are the setup requirements?
What are the delivery options?
Can I collect the bike in the store?
I still have more questions, can I speak to someone?
- FRAME:
- Carbon Phantom Black
- FRAME MATERIAL:
- Carbon
- FORK BRAND:
- Fox
- FORK:
- 2027 FOX 36 Performance, 160mm travel, GRIP damper, Sweep/LSR adjustment, 15x110mm, 44mm offset
- FORK TRAVEL:
- 160 mm
- REAR SHOCK:
- 2027 FOX Float X Performance, 2-position lever, custom tune, LSR adjustment, 210 × 55mm, air shock|
- MOTOR:
- Avinox
- MOTOR CONTROLLER:
- Avinox Wireless Controllers
- DISPLAY:
- Avinox Screen: 2-inch OLED Control Display
- DRIVE UNIT:
- Avinox M2S (130 Nm)
- BATTERY:
- Avinox 700 Wh Battery
- RANGE EXTENDER:
- N/A
- CHARGER:
- Avinox Fast Charger: 12A/508W
- WHEEL SIZE:
- 27.5 R 29 F
- WHEELS:
- Amflow XMA-30 Mullet Version Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt Rear Hub: Alloy, 4 sealed bea
- TYRES:
- Front: Schwalbe Magic Mary, 29×2.5 Gravity Pro, Radial Rear: Schwalbe Albert, 27.5×2.5 Gravity Pro, Radial
- DROPPER SEATPOST:
- Yes
- SEATPOST:
- Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm)
- SADDLE:
- Amflow Mountain Saddle
- CRANKSET:
- Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
- STEM:
- Amflow Mountain Bike Split Stem
- GRIPS:
- Amflow Enduro Grip 2 Lock-on Grips
- SHIFTERS:
- SRAM AXS Pod Controller
- WIRELESS SHIFTING:
- Yes
- BRAKE BRAND:
- Magura
- HYDRAULIC BRAKES:
- Yes
- BRAKES:
- Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
- REAR DERAILLEUR:
- SRAM S1000 Eagle Transmission Derailleur
- CHAIN:
- SRAM Eagle 70 Transmission Flattop Chain
- NUMBER OF GEARS:
- 12 Speed
- PEDALS:
- Available for Purchase
- EXTRAS:
- N/A
- TYPE OF BIKE:
- Trail / All Mountain
- DESIGNED FOR:
- Exploring new trails or going on longer rides where you encounter varied terrain. More relaxed geometry than a Cross Country bike and an excellent balance of climbing ability and downhill capability making it a great all-rounder
- IDEAL TERRAIN:
- Singletrack trails with some technical descents. Up to and including red routes & black routes at trail centres.
- PLEASE NOTE:
- Please note that Amflow reserve the right to make changes to the information provided for this bike at any time without notice. this can include the equipment, specifications, models, colours, and materials.
