Mondraker Crafty Carbon S 2027 - Green

Mondraker

£5,799.00
Shipping:
Calculated at Checkout
In Stock
Adding to cart… The item has been added
Pre Order Reserve with £200 Cycle To Work Reservation

Finance Options

Available as a payment option during checkout.









This is some hidden content.

Now available with the latest Bosch 2.0 update - delivering up to 120 Nm of torque

Mondraker Crafty Carbon S 2027

The Mondraker Crafty Carbon S 2027 combines a Stealth Air Carbon front triangle with a Stealth Alloy rear triangle and Mondraker’s updated Zero Suspension System, delivering 150mm of rear travel. Up front, a RockShox ZEB Base 29 fork with 160mm of travel works with the RockShox Super Deluxe Base rear shock, while Mondraker’s Forward Geometry and 29-inch wheels complete the chassis. The frame also features an internally removable battery, UDH compatibility and internal cable routing.

At the heart of the Crafty Carbon S is the Bosch Performance Line CX Smart System, powered by an 800Wh Bosch PowerTube battery and controlled through the Kiox 400C display and Bosch Mini Remote. The 12-speed drivetrain uses a SRAM 70 Eagle T-Type rear derailleur and trigger shifter, paired with a 10-52T SRAM XS-1270 cassette and 34T T-Type chainring. Braking comes from four-piston SRAM DB8 brakes with 200mm Centerline rotors front and rear, giving the bike a substantial braking setup to complement its long-travel suspension.

Mondraker Crafty Carbon S 2027

The wheelset pairs Mavic E-Access XR30 29-inch wheels with a 30mm internal rim width and Maxxis Assegai 2.5-inch front and Minion DHR II 2.5-inch rear tyres. The Assegai uses MaxxGrip compound with EXO+ protection, while the DHR II features MaxxTerra compound and a DoubleDown casing. An E.13 Helix Core E*Spec Plus crankset and X-Fusion Manic dropper post round out the build. At a listed 24.8kg, the Crafty Carbon S brings together a carbon front triangle, 160/150mm suspension, Bosch's 800Wh system and a robust component package for riders looking for a long-travel e-MTB built around capable all-mountain and enduro-style riding.

mondraker-crafty-carbon-r-2026

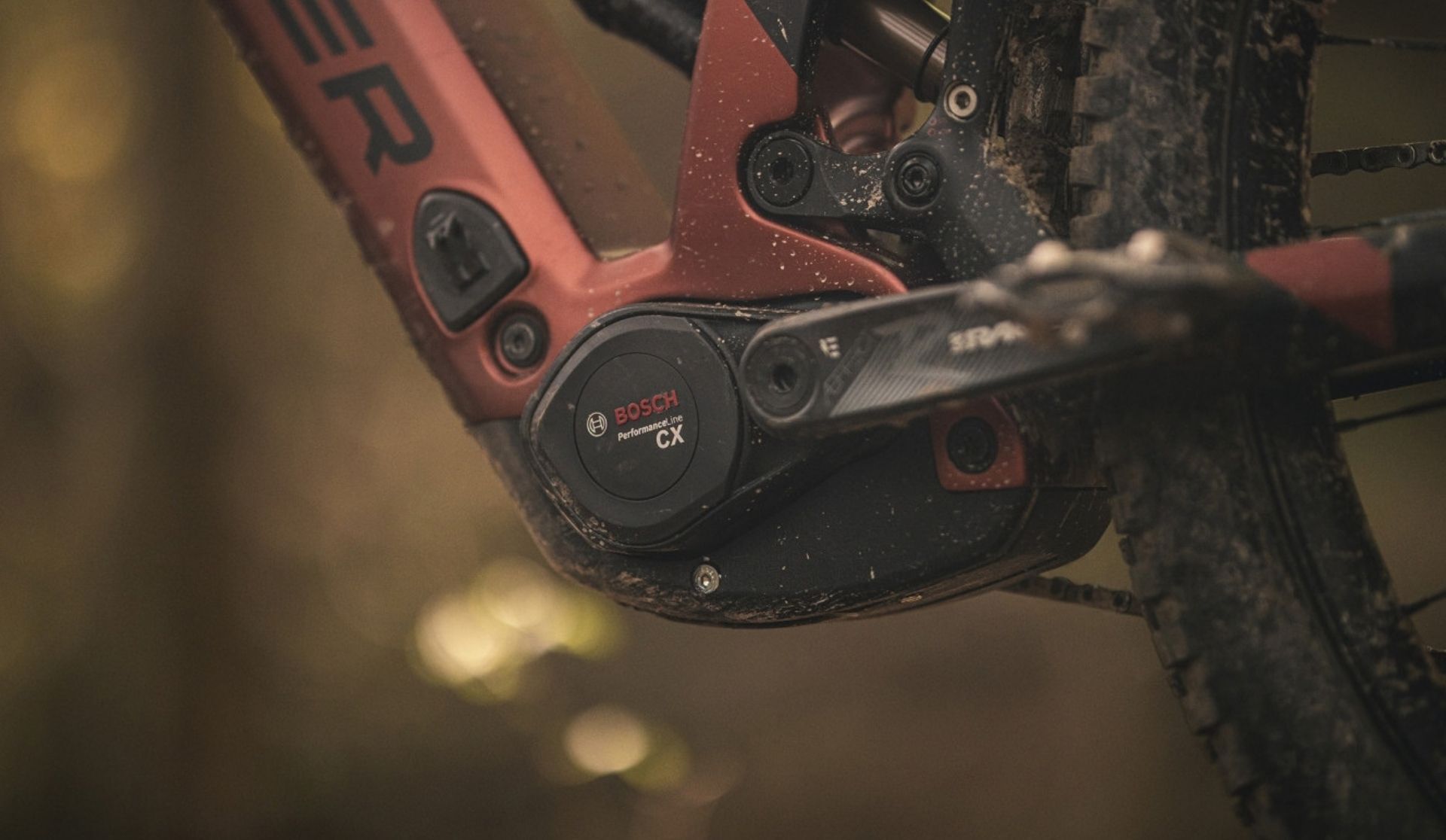

New Bosch CX

This top-tier e-Bike wouldn’t be complete without the latest evolution of the Bosch Performance Line CX motor. Now 100g lighter and more compact thanks to an updated internal architecture, it maintains the familiar 85Nm of torque and 600W peak power - but with noticeably smoother power delivery and improved control. With the latest Bosch update, torque output is now fully customisable, offering an adjustable range from 85Nm up to 120Nm to better suit different terrains, riding styles, and rider preferences.

From May 2026, this update will allow the maximum motor torque to be increased from 100 Nm to 120 Nm on any 5th-generation Bosch CX or CX-R motor, as well as increasing the maximum pedal assistance from 400% to up to 600%.

More torque to tackle the toughest climbs. More push in technical sections. More acceleration for those tricky sections. More power when the terrain gets tougher.

But the difference isn’t just in the numbers.

Mondraker Crafty Carbon R 2027

AIM: OPTIMIZATION

As with the recently released SLY, Crafty Carbon now comes in 5 different sizes thanks to the addition of an ‘ML’ option.

A standout feature is the incorporation of two different chainstay lengths dependant on frame size. Chainstay length has a significant impact on how a bike handles, and gone are the day of one-size-fits-all. By having two different chainstay lengths we can keep the same ‘feel’ of a Crafty Carbon regardless of frame size. Forward Geometry is thus optimized by adapting chainstay length to frame size. The S, M, and ML sizes get 455mm chainstays, while the L and XL sizes grow by one centimetre to 465mm, ensuring that regardless of frame size the ride ‘feel’ stays consistent throughout the range. Crafty Carbon is our first bike to offer two different chainstay lengths.

Geometry

 Mondraker Crafty Carbon RR 2026

 FRAME SIZES [STD/LOW]M [STD/LOW]M/L [STD/LOW]L [STD/LOW]XL [STD/LOW]
A Seattube length 380 mm 410 mm 435 mm 460 mm 490 mm
B Toptube length 581 mm/582 mm 596 mm/597 mm 618 mm/619 mm 640 mm/641 mm 662 mm/663 mm
C Bottom bracket drop -25 mm/-30 mm -25 mm/-30 mm -25 mm/-30 mm -25 mm/-30 mm -25 mm/-30 mm
D Bottom bracket height 350 mm/345 mm 350 mm/345 mm 350 mm/345 mm 350 mm/345 mm 350 mm/345 mm
E Chainstay length 455 mm/456 mm 455 mm/456 mm 455 mm/456 mm 465 mm/466 mm 465 mm/466 mm
F Seat tube angle 73.92°/73.65° 73.92°/73.65° 73.92°/73.65° 73.92°/73.65° 73.92°/73.65°
G Effective seattube angle 77.95°/77.6° 77.95°/77.6° 77.95°/77.6° 77.95°/77.6° 77.95°/77.6°
H Headtube angle 64.5°/64.15° 64.5°/64.15° 64.5°/64.15° 64.5°/64.15° 64.5°/64.15°
I Fork Offset 44 mm 44 mm 44 mm/44 mm 44 mm/44 mm 44 mm/44 mm
J Wheelbase 1240 mm/1241 mm 1255 mm/1256 mm 1280 mm/1281 mm 1314 mm/1315 mm 1338 mm/1339 mm
K Headtube length 120 mm 120 mm 130 mm 140 mm 150 mm
L Reach 445 mm/441 mm 460 mm/456 mm 480 mm/476 mm 500 mm/496 mm 520 mm/516 mm
M Stack 638 mm/641 mm 638 mm/641 mm 647 mm/650 mm 656 mm/659 mm 665 mm/668 mm

FAQs: Mondraker Crafty Carbon S

Basics

What size bike do I need?



What is Frame Protection and is it worth fitting it to the Crafty?



What is tubeless setup and can the Crafty be set up tubeless?



What equipment & info will the bike arrive with?



Is it possible to see the Crafty in your showroom & is it possible to have a test ride or demo it?



What type of bike is the Crafty and what is it designed for?



What type of terrain is the Crafty ideally suited towards?



Can the Mondraker Crafty Carbon S get wet and muddy?



How should you clean & maintain the Mondraker Crafty Carbon S ?



Can you tell me about the Mondraker brand?



I'm new to riding, what essential bits of kit do I need to get going?



Where can I ride the Mondraker Crafty Carbon S ?



Technical

Where can I find all of the major components that come on the bike?



Can you fit a water bottle on the Mondraker Crafty Carbon S ?



What warranty comes on the Mondraker Crafty Carbon S ?



Does the Mondraker Crafty Carbon S come with pedals?



Can I get hold of spare / replacement parts easily for the Mondraker Crafty Carbon S ?



Are electric bikes legal? How fast can the Mondraker Crafty Carbon S go?



Do I need a license to ride the Mondraker Crafty Carbon S in the UK?



Can I add upgrades to the bike?



Electric / Battery

How should I store the bike?



What is the battery lifespan on a Mondraker Crafty Carbon S ?



Are Lithium-Ion batteries safe?



Is the internal battery removable on the Mondraker Crafty Carbon S ?



What is the expected range of the battery on the Mondraker Crafty Carbon S ?



What is a range extender and can you add one to the Mondraker Crafty Carbon S ?



Does the bike arrive fully charged and ready to go?



How to charge the battery on the Mondraker Crafty Carbon S ?



How long does it take to charge the battery?



How is the motor protected ?



Purchasing

Why choose MTB Monster?



Do you offer 0% finance for the Mondraker Crafty Carbon S ?



Do you accept Cycle To Work vouchers? How does it work?



I'm still sorting my payment method, can I reserve a bike?



The bike is not yet in stock, can I pre-order one?



How will the bike be delivered & what are the setup requirements?



What are the delivery options?



Can I collect the bike in the store?



I still have more questions, can I speak to someone?


FRAME:
Crafty Stealth Air Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG i
FRAME MATERIAL:
Carbon Main Frame / Alloy Rear Triangle
FORK BRAND:
RockShox
FORK:
RockShox ZEB Base 29, Delta RC, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload
FORK TRAVEL:
160 mm
REAR SHOCK:
RockShox Super Deluxe Base, 185x55mm. Settings: external bottom out, 15 cliks rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
MOTOR:
Bosch
MOTOR CONTROLLER:
Bosch Smart System Mini Remote & System Controller
DISPLAY:
Bosch Kiox 400
DRIVE UNIT:
Bosch Performance Line CX Gen 5 (85 Nm - 120 Nm ) Smart System
BATTERY:
Bosch PowerTube 800 Wh Battery
REMOVABLE BATTERY:
Yes
RANGE EXTENDER:
Available for Purchase
CHARGER:
Included
WHEEL SIZE:
29
WHEELS:
Rims: Mavic E-Access XR30, 29 Boost 30mm internal width, tubeless ready, 28 spokes Front Hub: Mavic, Boost 15x110mm, IS 6 bolts Rear Hub: Mavic hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG reinforced freehub
TYRES:
Front: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead Rear: Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD casing, 2x120TPI, folding bead
DROPPER SEATPOST:
Yes
SEATPOST:
X-Fusion Manic TA, Travel adjust, diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm), ML size: 469x170mm, L size: 532x200, XL size: 532x200
SADDLE:
Ergon SM-10
CRANKSET:
E.13 Helix Core E*Spec Plus, All sizes: 155mm
HANDLEBAR:
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
STEM:
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
GRIPS:
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
SHIFTERS:
Sram Trigger 70, 12s, T-Type Actuation
BRAKE BRAND:
SRAM
HYDRAULIC BRAKES:
Yes
BRAKES:
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
REAR DERAILLEUR:
Sram 70 Eagle, T-Type, 12s
CHAIN:
Sram 70 Eagle T-Type, 12s Flattop, PowerLock
NUMBER OF GEARS:
12 Speed
PEDALS:
Available for Purchase
EXTRAS:
N/A
TYPE OF BIKE:
Enduro
DESIGNED FOR:
Conquering challenging terrain that mixes technical climbs with rough, steep descents. Its superb balance of weight and downhill capability making it a firm favourite with more aggressive riders.
IDEAL TERRAIN:
Excels on downhill sections with features like drops, jumps, rock gardens, and loose scree. Whether you're racing enduro, hitting the bike park, or tackling a black run, an enduro MTB can handle it all.
PLEASE NOTE:
Mondraker reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials
