Marin Rift Zone 1 2026 - Dark Purple
Fully Built by a Cytech Mechanic
Size Guide

Whyte bikes: delivery limited to certain areas. Check HERE before ordering.

This product is unavailable in Australia. View products available in your country HERE

This product is unavailable in Canada. View products available in your country HERE

This product is unavailable in the EU. View products available in your country HERE

This product is unavailable in Hong Kong. View products available in your country HERE

This product is unavailable in New Zealand. View products available in your country HERE

This product is unavailable in Norway. View products available in your country HERE

This product is unavailable in Saudi Arabia. View products available in your country HERE

This product is unavailable in South Africa. View products available in your country HERE

This product is unavailable in Sweden. View products available in your country HERE

This product is unavailable in Switzerland. View products available in your country HERE

This product is unavailable in the United Arab Emirates. View products available in your country HERE

This product is unavailable in the USA. View products available in your country HERE

Marin Rift Zone 1 2026 - Dark Purple

Marin

£1,499.00
Price Match Request
Check Availability
XS 27.5 £1,499.00 Due: January
S 27.5 £1,499.00 Due: January
M 27.5 £1,499.00 Due: March
M 29 £1,499.00 Due: March
L 29 £1,499.00 Due: February
XL 29 £1,499.00 Due: January
Shipping:
Calculated at Checkout
In Stock
Adding to cart… The item has been added
Pre Order Reserve with £200 Cycle To Work Reservation

Finance Options

Available as a payment option during checkout.

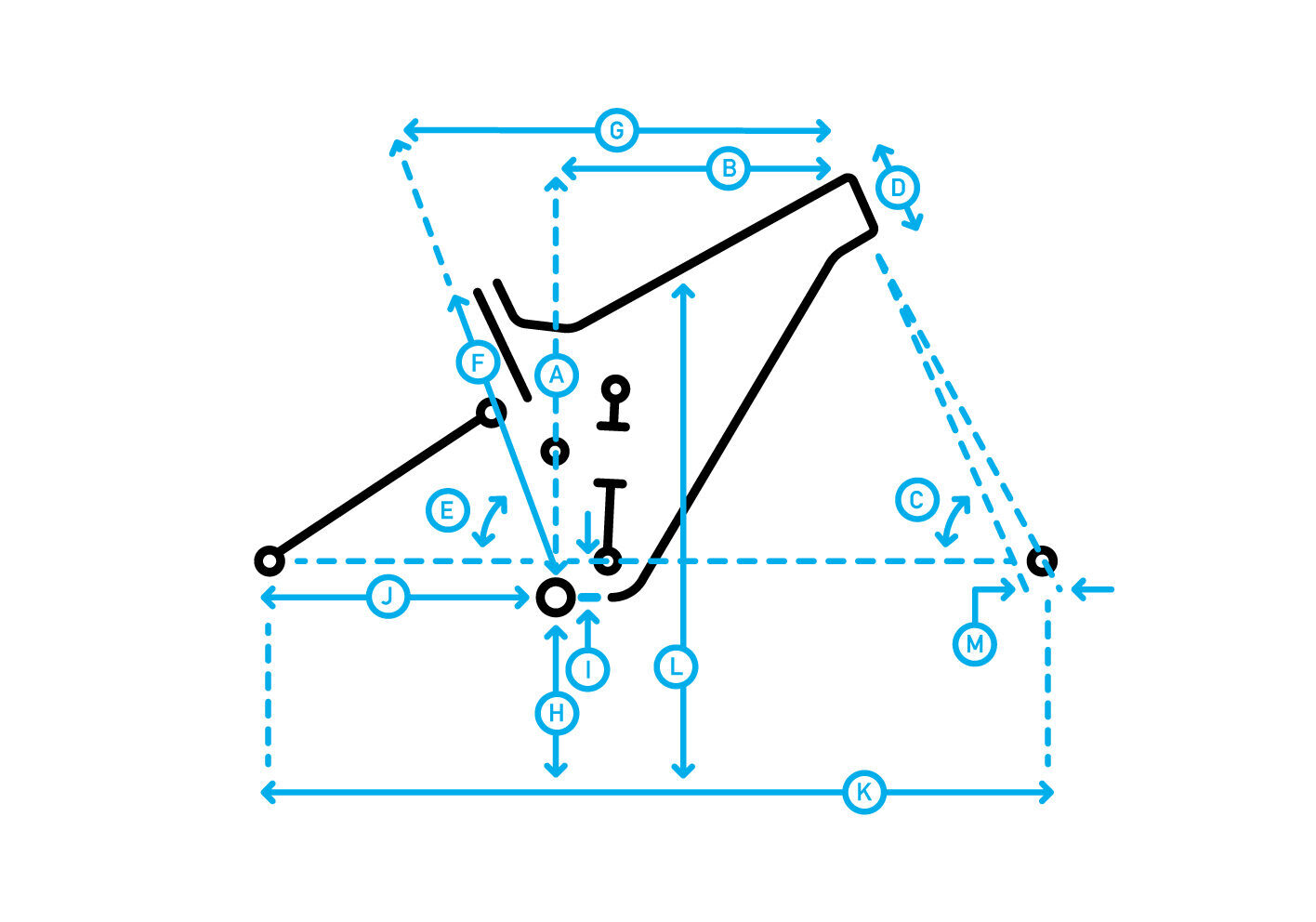

SizeXSSM (27.5)M (29)LXL
A Stack 569.1 600.7 605.2 637.3 637.3 641.8
B Reach 415 430 450 460 485 515
C Headtube Angle 65.5° 65.5° 65.5° 65.5° 65.5° 65.5°
D Headtube Length 115 120 125 115 125 130
E Seattube Angle 77° 77° 77° 77° 77° 77°
F Seattube Length 330 390 400 400 425 430
G Toptube Effective 552.6 568.7 589.7 605 632.1 663.2
H BB Height 339 339 339 343 343 343
I BB Drop 35 35 35 35 35 35
J Chainstay 430 430 430 430 430 430
K Wheelbase 1147.8 1164.8 1186.9 1205.1 1234.4 1266.3
L Standover Height 661.7 677.8 687.8 691.2 701.7 700.5
M Fork Offset 44 44 44 44 44 44
Seatpost Diameter 30.9 30.9 30.9 30.9 30.9 30.9
Handlebar Width 780 780 780 780 780 780
Stem Length 35 35 35 35 35 35
Crank Length 170 170 170 170 170 170
FRAME:
Series 3 6061 Aluminum, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs
FRAME MATERIAL:
Aluminium
FORK BRAND:
X-Fusion
FORK:
X-Fusion Slide (29") or Sweep (27.5") Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset
FORK TRAVEL:
140 mm
REAR SHOCK:
X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom
WHEEL SIZE:
29
WHEELS:
Rim: Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible / Front Hub: Joytech D041-B15, 110x15mm, 6-Bolt / Rear Hub: Joytech D142TSE-B5, 141QR, 6-Bolt
TYRES:
Vee Tire Co. Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless Compatible
DROPPER SEATPOST:
Yes
SEATPOST:
X-Fusion Manic, 1x Composite Remote, Size XS-S 150mm Travel, Size M-XL 170mm Travel, 30.9mm
SADDLE:
Marin Speed Concept
CRANKSET:
Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
HANDLEBAR:
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
STEM:
Marin 3D Forged Alloy, 35mm
GRIPS:
Marin MTN, Closed End
SHIFTERS:
Tektro, SL M5100-11R, 11-Speed
BRAKE BRAND:
Tektro
HYDRAULIC BRAKES:
Yes
BRAKES:
Tektro HD-M280 Hydraulic, 180mm Rotor
REAR DERAILLEUR:
Tektro RD-5100-L, Long Cage, Clutch
CHAIN:
KMC X-11 Silver and Black
NUMBER OF GEARS:
11 Speed
PEDALS:
Available for Purchase
FRONT MUDGUARD:
MTB Monster Mudguard
EXTRAS:
Closed 9-12 Thru-Axle Bolt On System
TYPE OF BIKE:
Trail
DESIGNED FOR:
Exploring new trails or going on longer rides where you encounter varied terrain. More relaxed geometry than a Cross Country bike and an excellent balance of climbing ability and downhill capability making it a great all-rounder
IDEAL TERRAIN:
Singletrack trails with some technical descents. Up to and including red routes at trail centres.
PLEASE NOTE:
Marin reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials
