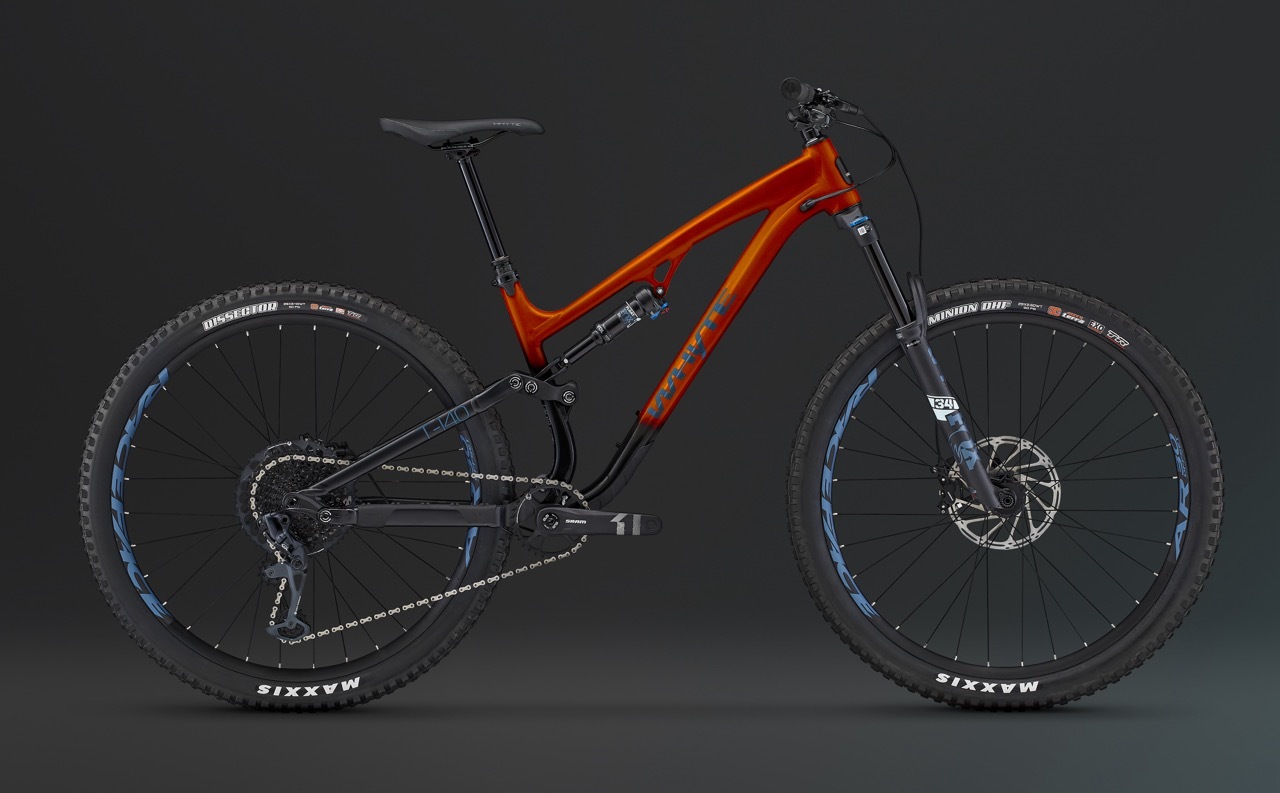

Whyte T-140 RS
Explore Everywhere
The mid-range Whyte T-140 RS is Whyte's fastest and most versatile full-suspension trail MTB that's perfect for finding every sort of fun on any terrain. Add in a specially curated parts selection for the best blend of performance and value so your money goes as far as you will, our extended lifetime frame and pivot bearing warranties, and weather-sealed features, and you've got everyday excellence, every where.
Combining 140mm front travel with 135mm rear travel, the T-140 RS delivers the perfect blend of impeccable rough terrain control and pedalling efficiency, wth a balanced ride that will have you attacking every trail with confidence and speed while still delivering that rush of involvement and reward. All combined so you can go further and faster, with the confidence to play hard, wherever the trail takes you.
Key Features
– 140mm front and 135mm of rear suspension travel.
– 6061 aluminium SCR frame with ISCG 2 guide mounts + geometry adjustment + Boost dropouts.
– Fox Float 34 Performance Elite 29in fork + custom-tuned Fox DPS – Performance Elite Evol LV shock.
– SRAM GX Eagle 12 speed mechanical transmission (32T chainring x 11-52T cassette).
– 29in trail-smoothing wheels front and rear
– Can be converted to MX wheels (29er front, 27.5in rear) for a more gravity-focused ride.
Built for trail, designed for confidence.
This bike is intended for riding on rough off-road trails which require technical skills where loss of contact between the wheels and surface may occur. It is is designed with the holistic Whyte Total Geometry approach to deliver you the most extraordinary confidence-inspiring ride, every ride.

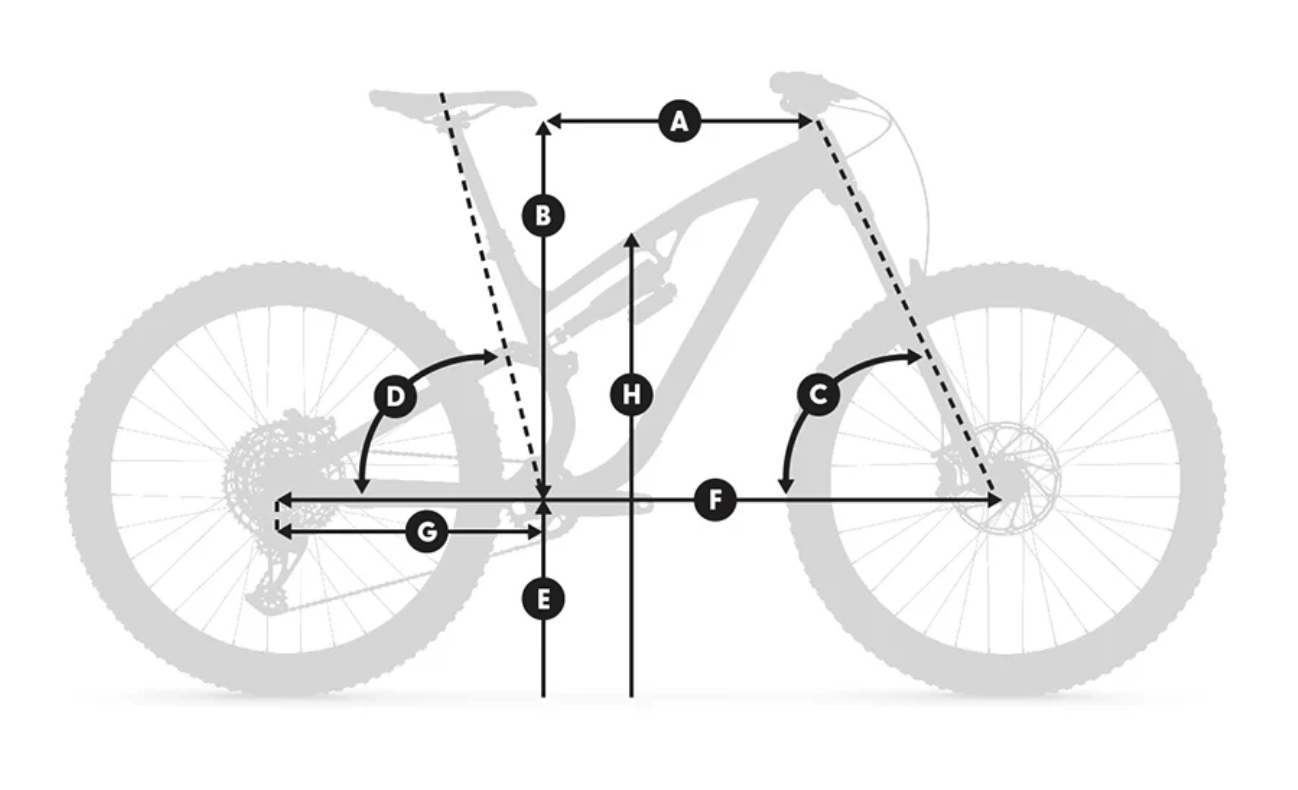

Geometry
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A - Reach (mm) | 430 | 455 | 483 | 510 |
| B - Stack (mm) | 621.4 | 633.2 | 646.8 | 658.5 |
| C - Head Angle (°) | 65.3 (64.7) | 65.3 (64.7) | 65.3 (64.7) | 65.3 (64.7) |
| D - Seat Angle (°) | 76.4 | 76.2 | 76 | 75.8 |
| E - BB Height (mm) | 338 (330) | 338 (330) | 338 (330) | 338 (330) |
| F - Wheelbase (mm) | 1184.7 | 1215.1 | 1249.5 | 1282 |
| G - Rear Centre (mm) | 435 | 435 | 435 | 435 |
| H - Standover Height (mm) | 735 | 735 | 735 | 735 |
| I - Seat Tube Length (mm) | 395 | 420 | 445 | 470 |
| J - Head Tube Length (mm) | 107 | 120 | 135 | 148 |
- FRAME:
- 6061 Alloy, SCR Aluminium Front Triangle with Tapered Head Tube, ISCG 2 Guide Mounts, Alloy Symmetrical SCR Rear Triangle, Shape.it and 148mm Boost Dropouts
- FRAME MATERIAL:
- Aluminium
- FORK BRAND:
- Fox
- FORK:
- Fox Float 34 Performance Elite 29", 140mm Travel, 44mm Offset, Grip 2 Damper, Tapered Steerer, 110mm x 15mm Boost E-Thru Axle
- FORK TRAVEL:
- 140 mm
- REAR SHOCK:
- Fox DPS Performance Elite, Evol LV, Adjustable Rebound and 3 Position Compression, 210 x 50mm, custom tuned for Whyte
- WHEEL SIZE:
- 29
- WHEELS:
- Spokes: DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples / Rims: Race Face AR-30, Offset, 30mm Wide, Sleeved Joint, Tubeless Ready, 32 Hole /
- TYRES:
- Front: Maxxis Minion DHF TR 29" x 2.5" WT 60TPI, EXO Sidewall Protection, 3C Maxx Terra / Rear: Maxxis Dissector TR 29" x 2.4" WT 120TPI, EXO+ Sidewall Protection, 3C Maxx Terra
- DROPPER SEATPOST:
- Yes
- SEATPOST:
- Whyte Drop.It II, 30.9mm, Adjust, M 120-150mm, L 140-170mm, XL 170-200mm Travel, Paddle Remote Lever
- SADDLE:
- Whyte Custom, Dual Density, Triple Panel Design
- CRANKSET:
- SRAM GX, Direct Mount 32T, DUB, 165mm
- STEM:
- Whyte Gravity Stem, 35mm Extension
- GRIPS:
- Whyte Lock-on Enduro Grip
- SHIFTERS:
- SRAM GX Eagle Trigger MMX, 12 Speed
- BRAKE BRAND:
- Sram
- HYDRAULIC BRAKES:
- Yes
- BRAKES:
- SRAM Guide G2 R, 4 Piston, 180mm Disc
- REAR DERAILLEUR:
- SRAM GX Eagle 12 Speed
- CHAIN:
- SRAM GX Eagle, 12 Speed
- NUMBER OF GEARS:
- 12 Speed
- PEDALS:
- Available for Purchase
- FRONT MUDGUARD:
- MTB Monster Mudguard
- EXTRAS:
- N/A
- TYPE OF BIKE:
- Trail
- DESIGNED FOR:
- Exploring new trails or going on longer rides where you encounter varied terrain. More relaxed geometry than a Cross Country bike and an excellent balance of climbing ability and downhill capability making it a great all-rounder
- IDEAL TERRAIN:
- Singletrack trails with some technical descents. Up to and including red routes at trail centres.
- PLEASE NOTE:
- Although Whyte have taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.
