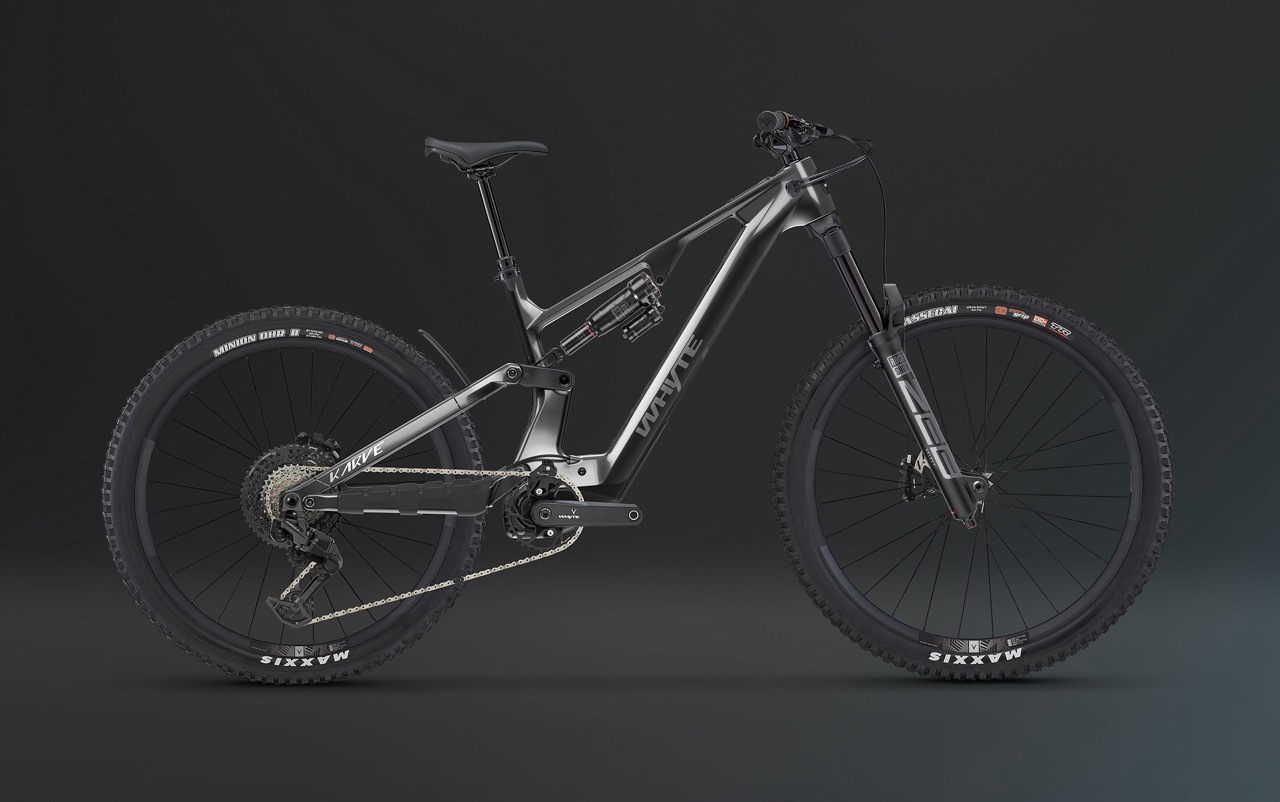

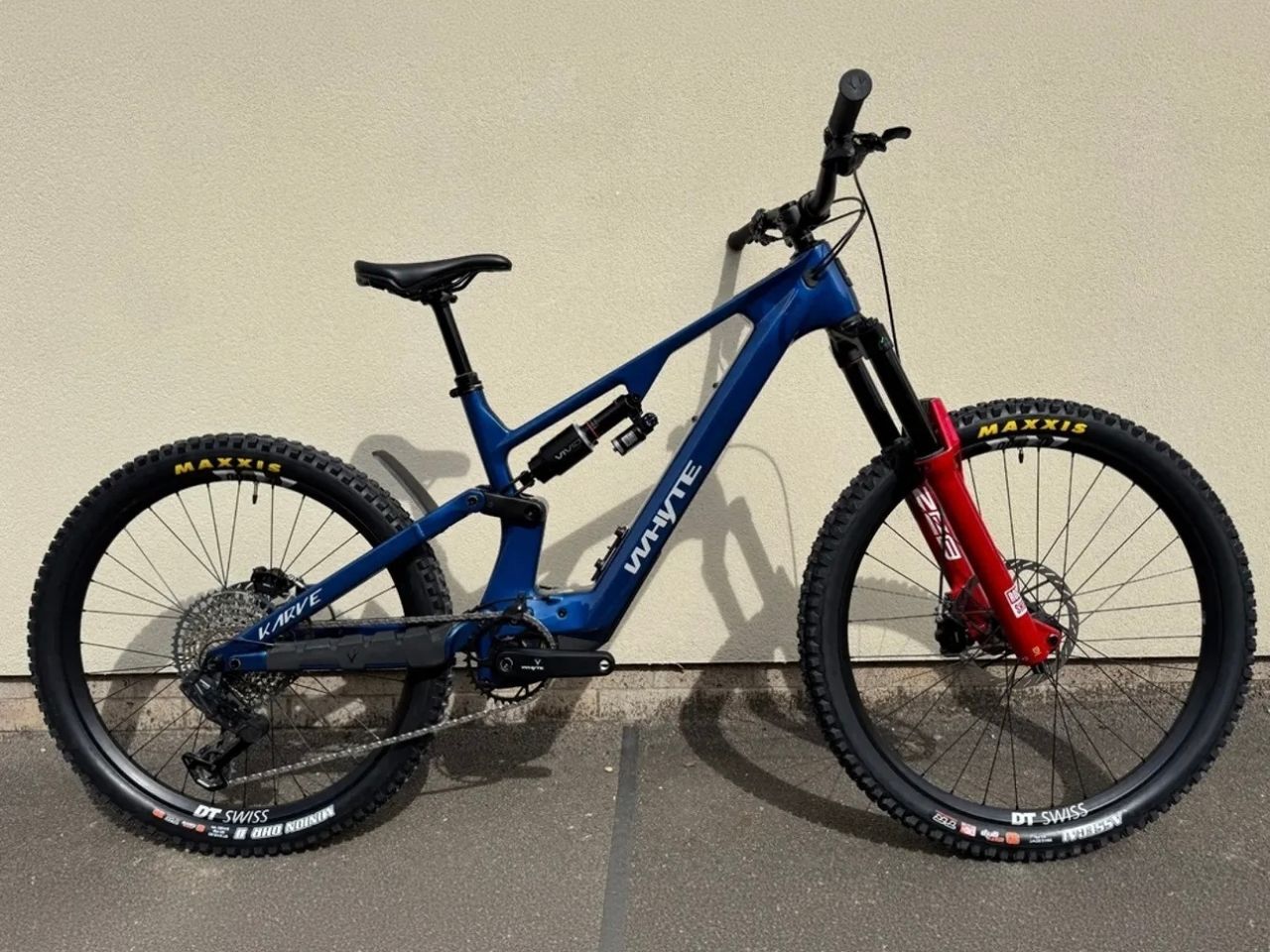

Whyte Karve Evo RS V1 2027 - Whyte Latest Avinox EMTB
For the most extreme lines. Supreme self-shuttle machines. With the power of AVINOX inside - with up to 150Nm of peak torque!
Designed, developed and proven on the toughest UK terrain and conditions, Karve EVO is made for gravity thrill seekers, self-shuttlers, bike-park senders, and big mountain riders looking for the biggest thrills and the very best descending and self-shuttle performance possible.

Key Features
– 180mm front + 180mm rear of Whyte custom-tuned suspension travel.
– Uni-directional carbon fibre front triangle with 6061 T6 aluminium rear triangle frame + proportional sizing for perfect fit across every size + geometry adjustment + full weatherproofing.

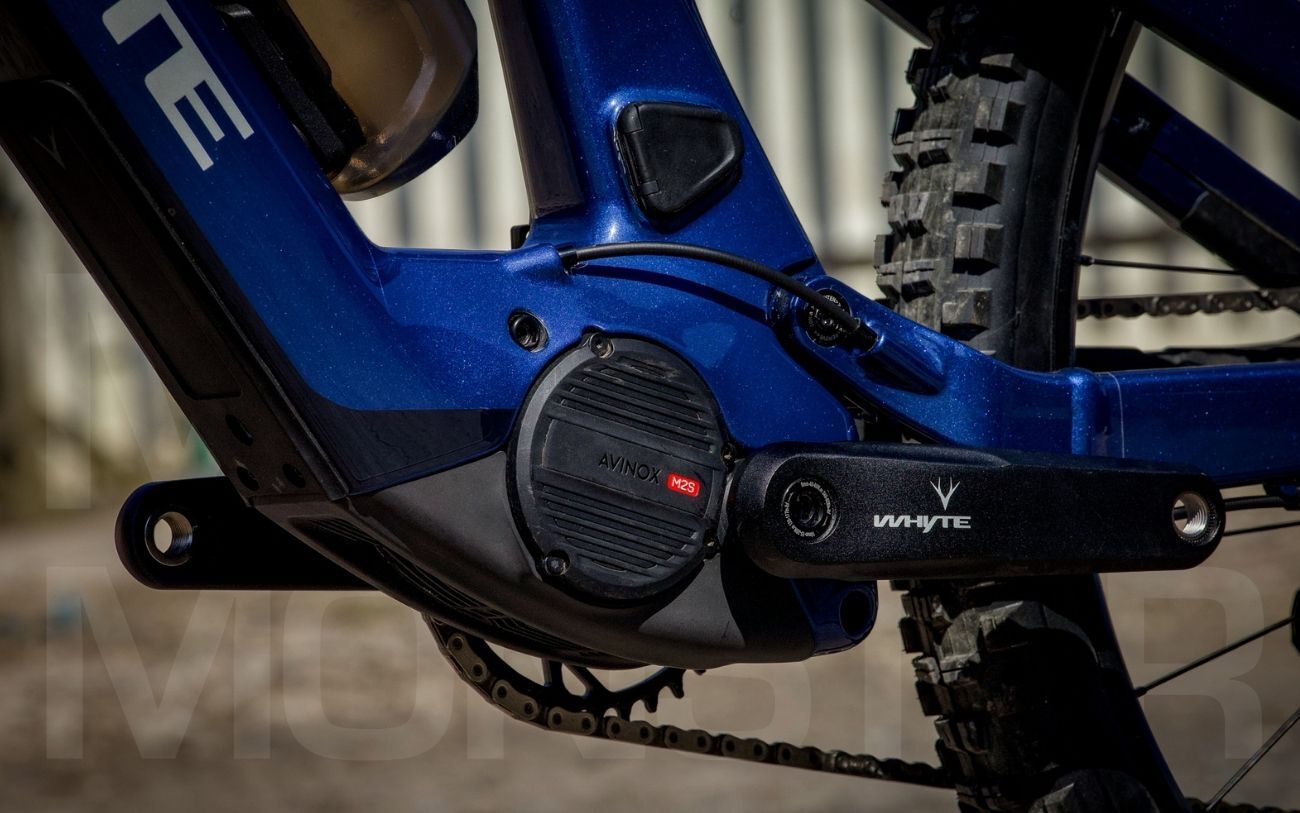

– DJI Avinox's very latest M2S full-torque (up to 150Nm), full-power (1300W peak) motor system.
– 800Wh internal battery.
– 29in front + 27/5in rear MX (mixed)/‘mullet’ wheels (ready to be converted to 29er front + rear).
– Adjustable travel full-insertion dropper posts (with frame size size-specific drops).
Geometry
| Size | Reach | Stack | Head angle | Seat angle | Bottom bracket | Wheelbase | Rear centre | Standover height | Seat tube length | Headtube length |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 457 | 636.8 | 63.3 / 62.7 | 77.8 | 350.1 | 1259.2 | 445 | 795 | 420 | 109 |
| L | 482 | 647.5 | 63.3 / 62.7 | 77.5 | 350.1 | 1299.5 | 455 | 795 | 445 | 121 |
| XL | 507 | 661.9 | 63.3 / 62.7 | 77.1 | 350.1 | 1341.7 | 465 | 795 | 470 | 137 |
FAQs: Whyte Karve Evo RS V1 2027
Basics
What size bike do I need?
What is Frame Protection and is it worth fitting it to the Karve?
What is tubeless setup and can the Karve be set up tubeless?
What equipment & info will the bike arrive with?
Is it possible to see the Karve in your showroom & is it possible to have a test ride or demo it?
What type of bike is the Karve and what is it designed for?
What type of terrain is the Karve ideally suited towards?
Can the Whyte Karve Evo RS V1 2027 get wet and muddy?
How should you clean & maintain the Whyte Karve Evo RS V1 2027 ?
Can you tell me about the Whyte brand?
I'm new to riding, what essential bits of kit do I need to get going?
Where can I ride the Whyte Karve Evo RS V1 2027 ?
Technical
Where can I find all of the major components that come on the bike?
Can you fit a water bottle on the Whyte Karve Evo RS V1 2027 ?
What warranty comes on the Whyte Karve Evo RS V1 2027 ?
Does the Whyte Karve Evo RS V1 2027 come with pedals?
Can I get hold of spare / replacement parts easily for the Whyte Karve Evo RS V1 2027 ?
Are electric bikes legal? How fast can the Whyte Karve Evo RS V1 2027 go?
Do I need a license to ride the Whyte Karve Evo RS V1 2027 in the UK?
Can I add upgrades to the bike?
Electric / Battery
How should I store the bike?
What is the battery lifespan on a Whyte Karve Evo RS V1 2027 ?
Are Lithium-Ion batteries safe?
Is the internal battery removable on the Whyte Karve Evo RS V1 2027 ?
What is the expected range of the battery on the Whyte Karve Evo RS V1 2027 ?
What is a range extender and can you add one to the Whyte Karve Evo RS V1 2027 ?
Does the bike arrive fully charged and ready to go?
How to charge the battery on the Whyte Karve Evo RS V1 2027 ?
How long does it take to charge the battery?
How is the motor protected ?
Purchasing
Why choose MTB Monster?
Do you offer 0% finance for the Whyte Karve Evo RS V1 2027 ?
Do you accept Cycle To Work vouchers? How does it work?
I'm still sorting my payment method, can I reserve a bike?
The bike is not yet in stock, can I pre-order one?
How will the bike be delivered & what are the setup requirements?
What are the delivery options?
Can I collect the bike in the store?
I still have more questions, can I speak to someone?
- FRAME:
- Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 Alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts
- FRAME MATERIAL:
- Carbon
- FORK BRAND:
- RockShox
- FORK:
- RockShox ZEB Select, 180mm travel, 44mm offset, Linear XL, Delta RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth
- FORK TRAVEL:
- 180 mm
- REAR SHOCK:
- RockShox Super Deluxe Select RT, DebonAir, Fast Black coating, adjustable rebound, 230 x 62.5mm, custom tuned for Whyte
- MOTOR:
- Avinox
- MOTOR CONTROLLER:
- Avinox Wireless Controllers
- DISPLAY:
- Avinox Screen: 2-inch OLED Control Display
- DRIVE UNIT:
- Avinox M2S (130 Nm)
- BATTERY:
- Avinox 800 Wh Battery
- RANGE EXTENDER:
- Available for Purchase
- CHARGER:
- Charger 4A (230V)
- WHEEL SIZE:
- 27.5 R 29 F
- WHEELS:
- Rims: Whyte eMTB sleeved rims, 30mm internal width, tubeless ready, 29" front, 27.5" rear | Font hub: Alloy, double sealed cartridge bearings, 12mm x 100mm thru axle, 32 hole | Rear Hub: Alloy, e-bike specific, double sealed cartridge bearings, 12mm
- TYRES:
- Maxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 27.5 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear)
- DROPPER SEATPOST:
- Yes
- SEATPOST:
- TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop)
- SADDLE:
- Whyte Custom
- CRANKSET:
- Whyte 155mm long ISIS crank arms, SRAM direct mount, 36T chainring, T-Type
- STEM:
- Whyte, 35mm extension, 35mm bar bore
- GRIPS:
- Whyte Enduro lock-on
- SHIFTERS:
- SRAM Eagle 90, 12 speed
- WIRELESS SHIFTING:
- Yes
- BRAKE BRAND:
- SRAM
- HYDRAULIC BRAKES:
- Yes
- BRAKES:
- SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 220mm/200mm six bolt Centreline rotors
- REAR DERAILLEUR:
- SRAM Eagle 70 T-Type mechanical, 12 speed
- CHAIN:
- SRAM Eagle 70, 12 speed
- NUMBER OF GEARS:
- 12 Speed
- PEDALS:
- Fibre reinforced composite platform
- EXTRAS:
- N/A
- TYPE OF BIKE:
- Enduro
- DESIGNED FOR:
- Conquering challenging terrain that mixes technical climbs with rough, steep descents. Its superb balance of weight and downhill capability making it a firm favourite with more aggressive riders.
- IDEAL TERRAIN:
- Excels on downhill sections with features like drops, jumps, rock gardens, and loose scree. Whether you're racing enduro, hitting the bike park, or tackling a black run, an enduro MTB can handle it all.
- PLEASE NOTE:
- Although Whyte have taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.
