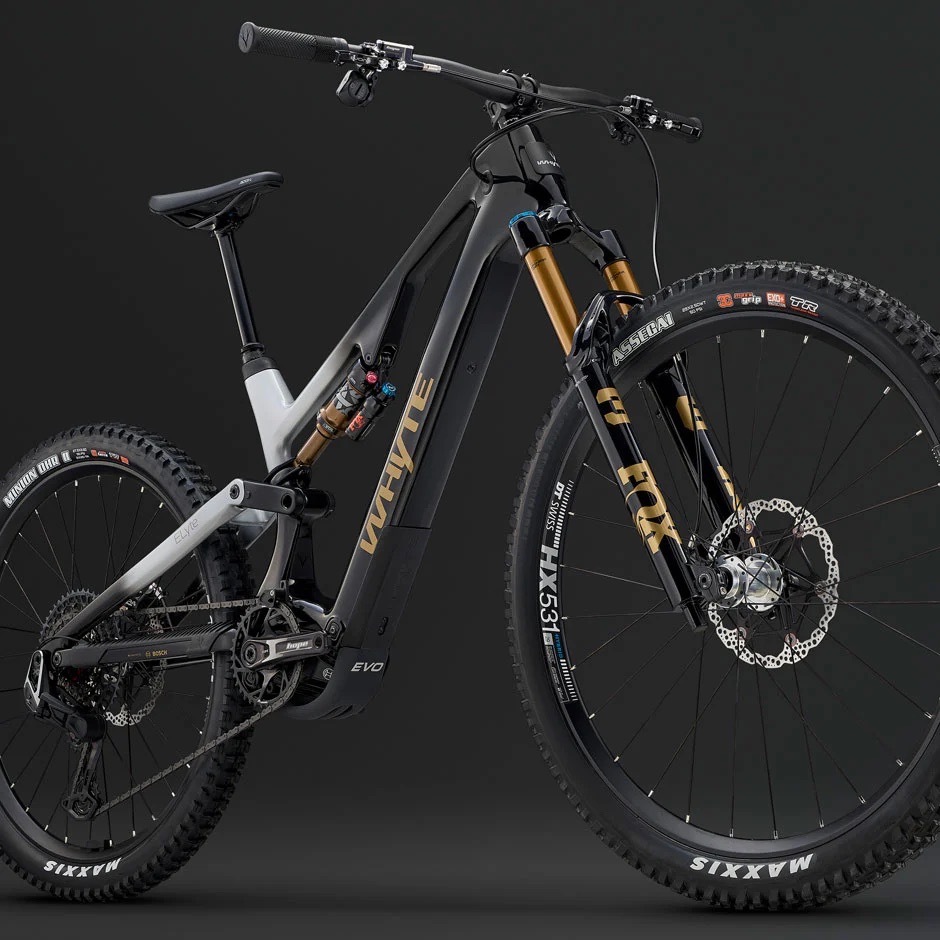

Whyte ELyte EVO Stag Works
The Whyte ELyte EVO Stag Works is a serious entry into the world of high-performance electric mountain biking. Designed for riders who demand both agility on technical descents and efficiency on long climbs, this full suspension e-MTB blends Whyte’s renowned geometry with a powerful, seamlessly integrated motor system.
Built around a lightweight, stiff carbon frame, the ELyte EVO Stag Works offers 150mm of travel front and rear, delivering confident handling over rough trails and technical terrain. The bike’s geometry is tuned for stability at speed, yet remains responsive when threading through tighter singletrack sections.
Whyte's lowest centre of gravity ever
The heart of the ELyte EVO Stag Works is a lightweight yet strong carbon fibre chassis that carefully packages Bosch's powerful Performance Line CX full-torque, full power motor – and the 400Wh internal battery – seamlessly together with the 250Wh PowerMore range extender. All to achieve the lowest centre of gravity as possible (492.28mm off the ground) and deliver you the finest handling and most confidence-inspiring ride in every situation – whether you’re running the PowerMore or not.
Refined Bosch performance and reliability
Bosch’s all-new Performance Line CX motor delivers up to 100 Nm of torque, offering full power in a system that is quieter, lighter, and more refined than ever before. It achieves an exceptional balance of power, control, and range, enabling riders to tackle demanding terrain with confidence and efficiency. Backed by Bosch’s renowned reliability and enhanced by the eBike Flow app—which provides intelligent customization and valuable ride insights—it sets a new standard for performance e-mountain biking.
No compromises, no half measures
The ELyte EVO Stag Works is specced to perform flawlessly from the shop floor so you can focus on what really matters: getting the most from your ride. Top-shelf Fox Factory suspension front and rear tames the roughest trails with ease; SRAM's XO T-Type AXS electronic gearing gives you reliably impeccable shifting performance; Hope’s latest powerful EVO GR4 four-piston hydraulic disc brakes deliver the ultimate in braking control; Hope cranks and hubs, provide market leading performance.

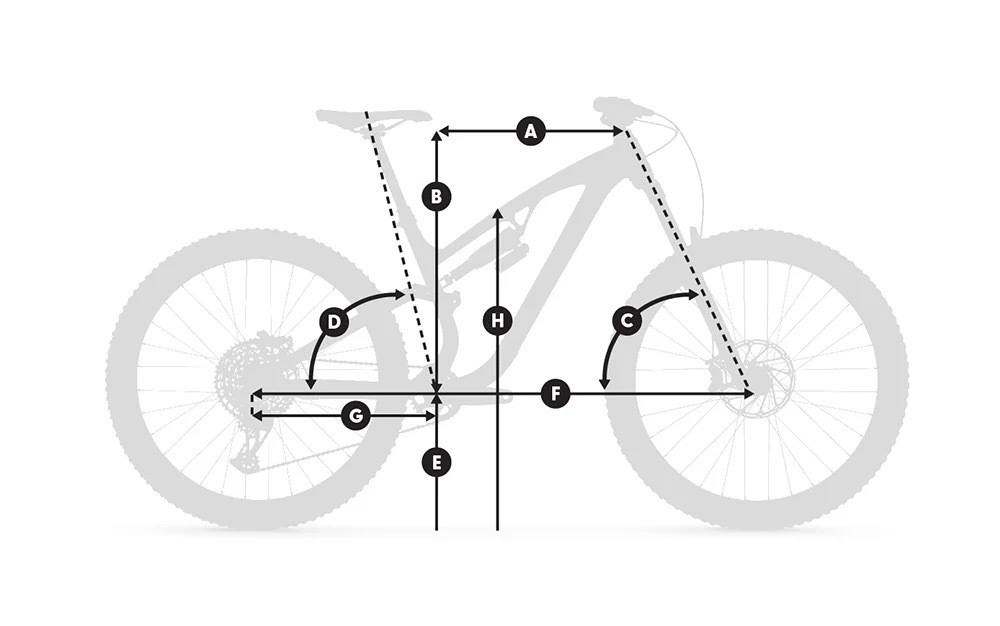

Geometry
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A - Reach (mm) | 431 | 456 | 481 | 506 |
| B - Stack (mm) | 628.7 | 640.5 | 652.3 | 663.2 |
| C - Head Angle (°) | 64.6 (64) | 64.6 (64) | 64.6 (64) | 64.6 (64) |
| D - Seat Angle (°) | 77.5 | 77.3 | 77.1 | 76.9 |
| E - BB Height (mm) | 341.9 (333.9) | 341.9 (333.9) | 341.9 (333.9) | 341.9 (333.9) |
| F - Wheelbase (mm) | 1211.6 | 1242.1 | 1272.6 | 1302.7 |
| G - Rear Centre (mm) | 450.4 | 450.4 | 450.4 | 450.4 |
| H - Standover Height (mm) | 741 | 741 | 741 | 741 |
| I - Seat Tube Length (mm) | 395 | 420 | 445 | 470 |
| J - Head Tube Length (mm) | 114 | 127 | 140 | 152 |
- FRAME:
- Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
- FRAME MATERIAL:
- Carbon
- FORK BRAND:
- Fox
- FORK:
- 2026 Fox Float 36 Factory 29in, 150mm travel, 44mm offset, Grip X2 custom tuned damper, tapered steerer, 110m x 15mm Kabolt axle
- FORK TRAVEL:
- 150 mm
- REAR SHOCK:
- Fox Float X Factory Series, EVOL, lock out, 210mm x 50mm, custom tuned for Whyte
- MOTOR:
- Bosch
- MOTOR CONTROLLER:
- Bosch Smart System Mini Remote & System Controller
- DISPLAY:
- Bosch Kiox 400
- DRIVE UNIT:
- Bosch Performance Line CX Gen 5 (100 Nm ) Smart System
- BATTERY:
- Bosch CompactTube 400 Wh Battery
- RANGE EXTENDER:
- Bosch PowerMore 250Wh Available for Purchase
- CHARGER:
- x2 4A (230V) chargers (one for bike, one for PowerMore)
- WHEEL SIZE:
- 27.5 R 29 F
- WHEELS:
- Rims: DT HX531, 30mm Internal / Spokes: DT Swiss elemental / Rearhub: Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole / Front Hub: Hope Pro 5, six bolt, 15mm x 110mm Boost spacing, 28 hole
- TYRES:
- TBC
- DROPPER SEATPOST:
- Yes
- SEATPOST:
- Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever
- SADDLE:
- Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
- CRANKSET:
- Hope E-Bike Cranks, 155mm length, Bosch mounting, 36T chainring T-type
- STEM:
- Whyte Trail full CNC, 32mm extension, 35mm bar bore
- GRIPS:
- Whyte Enduro lock-on
- SHIFTERS:
- SRAM AXS Pod, right, MMX, 12 speed
- BRAKE BRAND:
- Hope
- BRAKES:
- Front: Hope EVO GR4, four piston hydraulic, 200mm diameter floating disc rotor / Rear: Hope EVO GR4, four piston hydraulic, 200mm diameter floating disc rotor
- HYDRAULIC BRAKES:
- Yes
- REAR DERAILLEUR:
- SRAM XO T-Type AXS, 12 speed, powered off Bosch CX Motor
- CHAIN:
- SRAM XO T-Type, 12 speed
- NUMBER OF GEARS:
- 12 Speed
- PEDALS:
- Fibre reinforced composite platform
- FRONT MUDGUARD:
- MTB Monster Mudguard
- EXTRAS:
- N/A
- TYPE OF BIKE:
- Enduro
- DESIGNED FOR:
- Conquering challenging terrain that mixes technical climbs with rough, steep descents. Its superb balance of weight and downhill capability making it a firm favourite with more aggressive riders.
- IDEAL TERRAIN:
- Excels on downhill sections with features like drops, jumps, rock gardens, and loose scree. Whether you're racing enduro, hitting the bike park, or tackling a black run, an enduro MTB can handle it all.
- PLEASE NOTE:
- Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.
