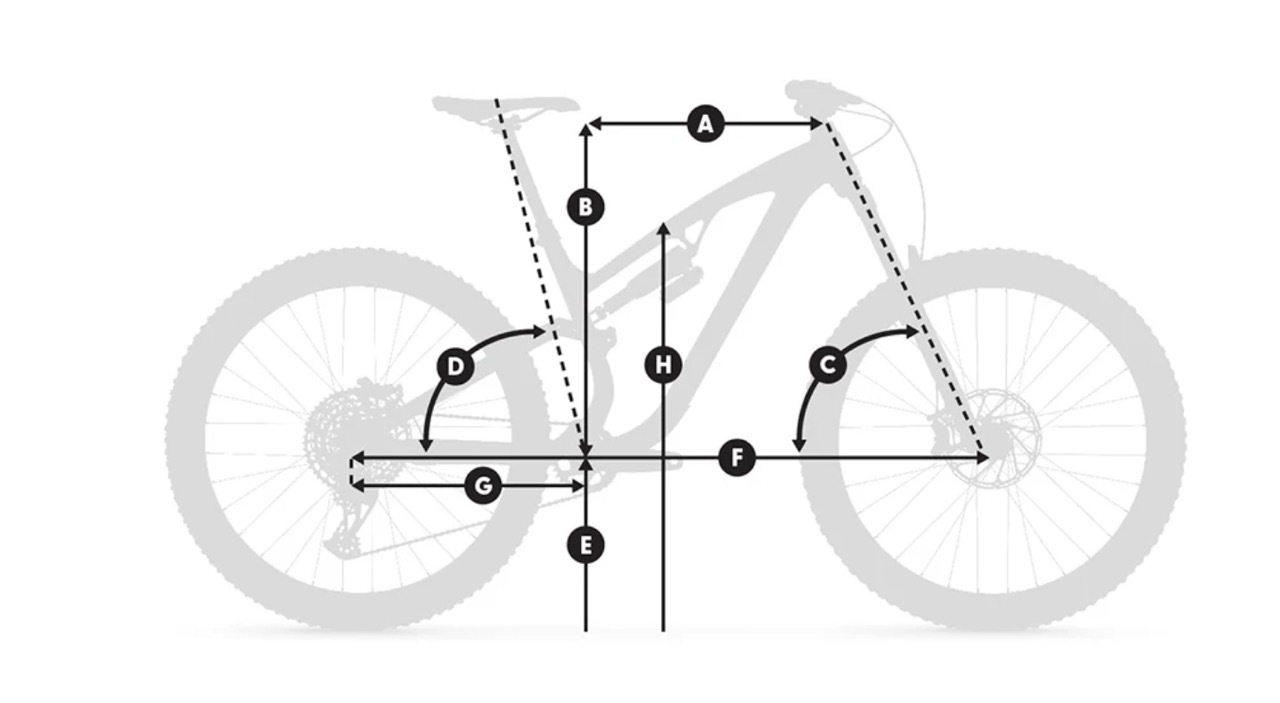

| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A – Reach (mm) | 431 | 456 | 481 | 506 |
| B – Stack (mm) | 628.7 | 640.5 | 652.3 | 663.2 |
| C – Head Angle (° degrees) | 64.6 (64) | 64.6 (64) | 64.6 (64) | 64.6 (64) |
| D – Seat Angle (° degrees) | 77.5 | 77.3 | 77.1 | 76.9 |
| E – BB Height (mm) | 341.9 (333.9) | 341.9 (333.9) | 341.9 (333.9) | 341.9 (333.9) |
| F – Wheelbase (mm) | 1211.6 | 1242.1 | 1272.6 | 1302.7 |
| G – Rear Centre (mm) | 450.4 | 450.4 | 450.4 | 450.4 |
| H – Standover Height (mm) | 741 | 741 | 741 | 741 |
| I – Seat Tube Length (mm) | 395 | 420 | 445 | 470 |
| J – Head Tube Length (mm) | 114 | 127 | 140 | 152 |
FAQs: Whyte Elyte EVO RS 2026
Basics
What size bike do I need?
What is Frame Protection and is it worth fitting it to the Elyte Evo RS?
What is tubeless setup and can the Elyte Evo RS be set up tubeless?
What equipment & info will the bike arrive with?
Is it possible to see the Elyte Evo RS in your showroom & is it possible to have a test ride or demo it?
What type of bike is the Elyte Evo RS and what is it designed for?
What type of terrain is the Elyte Evo RS ideally suited towards?
Can the Whyte Elyte EVO RS 2026 get wet and muddy?
How should you clean & maintain the Whyte Elyte EVO RS 2026?
Can you tell me about the Whyte Brand?
I'm new to riding, what essential bits of kit do I need to get going?
Where can I ride the Whyte Elyte EVO RS 2026?
Technical
Where can I find all of the major components that come on the bike?
Can you fit a water bottle on the Whyte Elyte EVO RS 2026?
What warranty comes on the Whyte Elyte EVO RS 2026?
Does the Whyte Elyte EVO RS 2026 come with pedals?
Can I get hold of spare / replacement parts easily for the Whyte Elyte EVO RS 2026?
Are electric bikes legal? How fast can the Whyte Elyte EVO RS 2026 go?
Do I need a license to ride the Whyte Elyte EVO RS 2026 in the UK?
Can I add upgrades to the bike?
Electric / Battery
How should I store the bike?
What is the battery lifespan on a Whyte Elyte EVO RS 2026?
Are Lithium-Ion batteries safe?
Is the internal battery removable on the Whyte Elyte EVO RS 2026?

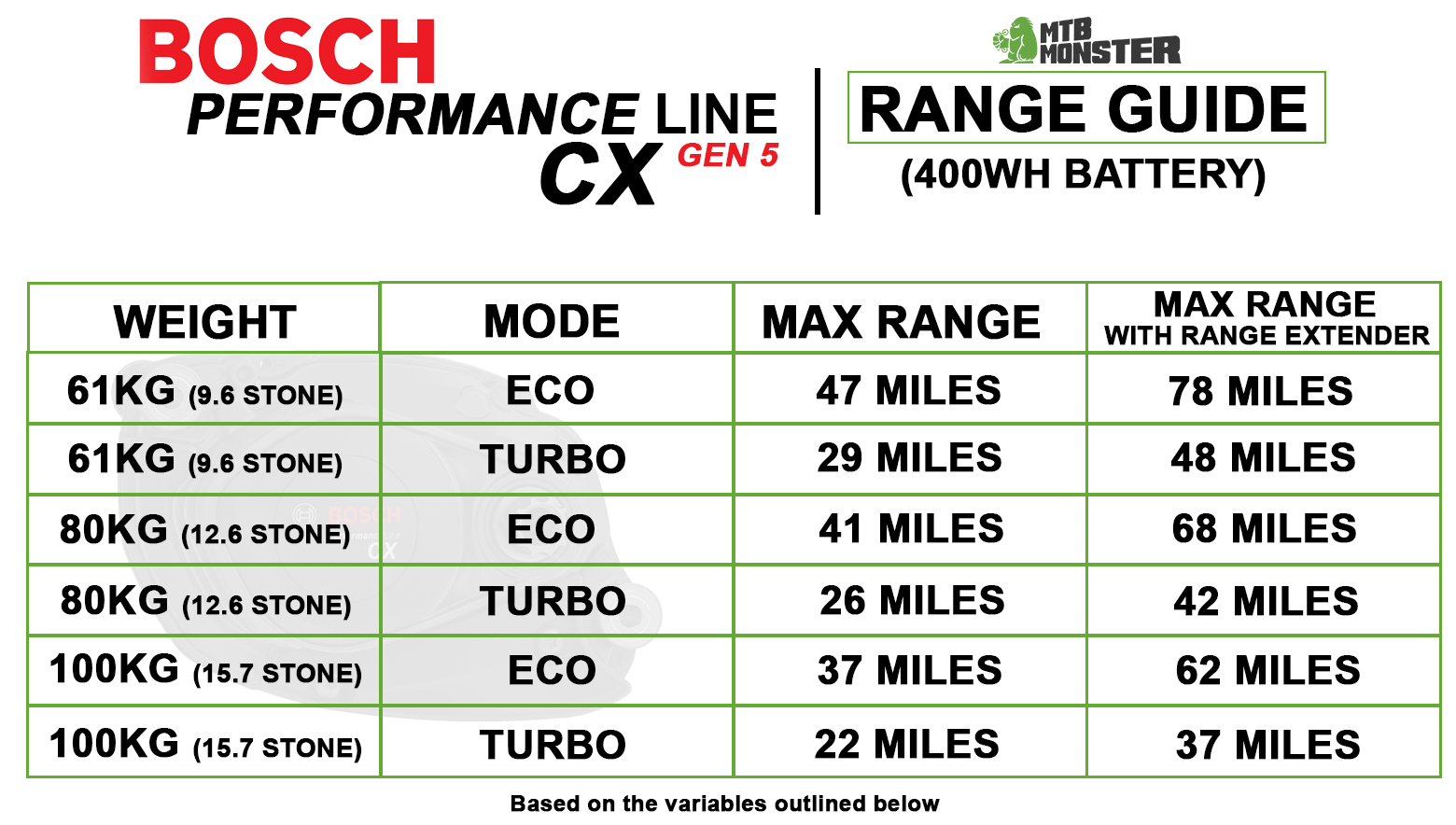

What is the expected range of the battery on the Whyte Elyte EVO RS 2026?
What is a range extender and can you add one to the Whyte Elyte EVO RS 2026?
Does the bike arrive fully charged and ready to go?
How to charge the battery on the Whyte Elyte EVO RS 2026?
How long does it take to charge the battery?
How is the motor protected ?
Purchasing
Why choose MTB Monster?
Do you offer 0% finance for the Whyte Elyte EVO RS 2026?
Do you accept Cycle To Work vouchers? How does it work?
I'm still sorting my payment method, can I reserve a bike?
The bike is not yet in stock, can I pre-order one?
How will the bike be delivered & what are the setup requirements?
What are the delivery options?
Can I collect the bike in the store?
I still have more questions, can I speak to someone?
- FRAME:
- Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
- FRAME MATERIAL:
- Carbon
- FORK BRAND:
- RockShox
- FORK:
- RockShox Lyrik Select+, 150mm travel, DebonAir+, Charger 3.1 Damper, Fast Black coating, tapered steerer, 110 x 15mm Boost
- FORK TRAVEL:
- 150 mm
- REAR SHOCK:
- RockShox Deluxe Select + RT, DebonAir, Fast Black coating, adjustable rebound and two position compression adjustment, 210x 50mm, custom tuned for Whyte
- MOTOR:
- Bosch
- MOTOR CONTROLLER:
- Bosch Smart System Mini Remote & System Controller
- DISPLAY:
- Not Included
- DRIVE UNIT:
- Bosch Performance Line CX Gen 5 (85 Nm ) Smart System
- BATTERY:
- Bosch CompactTube 400 Wh Battery
- RANGE EXTENDER:
- Bosch PowerMore 250Wh (Included)
- CHARGER:
- Charger 4A (230V)
- WHEEL SIZE:
- 27.5 R 29 F
- WHEELS:
- WTB ST Tough 29in (front), HTZ Trail 27.5in (rear), 30mm internal width
- TYRES:
- Maxxis Minion
- DROPPER SEATPOST:
- Yes
- SEATPOST:
- TranzX +RAD 30.9mm, Adjustable, 125 drop (S), 150 drop (M), 170mm drop (L), 200mm drop (XL)
- SADDLE:
- Whyte Custom
- CRANKSET:
- Whyte 155mm ISIS arms, SRAM Direct Mount 36T chainring, T-Type
- STEM:
- Whyte Trail, 35mm extension, 35mm bar bore
- GRIPS:
- Whyte Enduro lock-on
- SHIFTERS:
- SRAM Eagle 90 mechanical, 12 speed
- BRAKE BRAND:
- SRAM
- HYDRAULIC BRAKES:
- Yes
- BRAKES:
- SRAM DB8, four piston hydraulic, 200mm diameter disc rotor
- REAR DERAILLEUR:
- SRAM Eagle 90 T-Type Mechanical
- CHAIN:
- SRAM GX T-Type, 12 speed
- NUMBER OF GEARS:
- 12 Speed
- PEDALS:
- Fibre reinforced composite platform
- FRONT MUDGUARD:
- MTB Monster Mudguard
- EXTRAS:
- N/A
- TYPE OF BIKE:
- Trail
- DESIGNED FOR:
- Exploring new trails or going on longer rides where you encounter varied terrain. More relaxed geometry than a Cross Country bike and an excellent balance of climbing ability and downhill capability making it a great all-rounder
- IDEAL TERRAIN:
- Conquering challenging terrain that mixes technical climbs with rough, steep descents. Its superb balance of weight and downhill capability making it a firm favourite with more aggressive riders.
- PLEASE NOTE:
- Although Whyte have taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.
