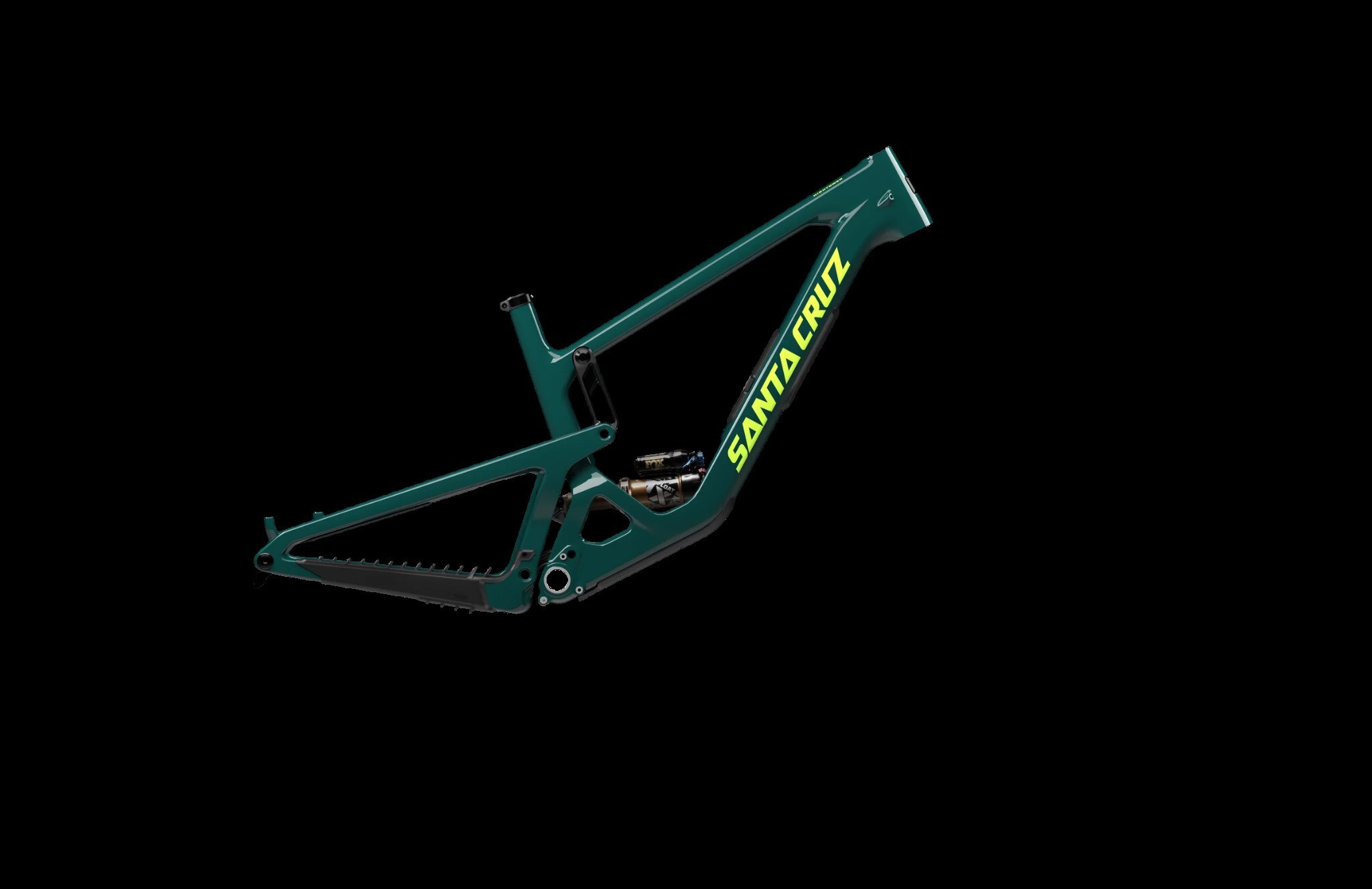

Santa Cruz Hightower Carbon CC (Frame Only)
The Santa Cruz Hightower Carbon CC frame sets a high benchmark for riders seeking a versatile, high-performance chassis capable of excelling across a wide range of trail conditions. Built from Santa Cruz’s premium CC-grade carbon, the frame offers exceptional stiffness-to-weight efficiency, delivering precise handling, reliable responsiveness and the durability required for demanding all-mountain use. Its modern geometry strikes a balance between stability on steep terrain and agility in tighter, technical sections, making the Hightower an ideal platform for riders who want a single frame that can confidently take on everything from long trail loops to aggressive enduro-style descents.
Refined suspension kinematics, anchored by the lower-link VPP system, ensure a highly supportive pedaling position, improved small-bump sensitivity and controlled progression deeper into the travel. Generous frame protection, internal cable routing and practical hardware choices contribute to a clean, service-friendly design that stands up to long-term use. As a frame-only option, the Hightower Carbon CC gives riders complete freedom to tailor their build—whether targeting a lightweight trail setup or a more robust configuration for bigger mountain days.

The Hightower Carbon CC frame delivers the foundation serious trail riders look for when building a bike without compromise. With its premium CC-level carbon layup, refined VPP suspension platform, and balanced 145mm rear travel, this chassis offers the ideal blend of pedaling efficiency and confident descending capability. It’s engineered for riders who want a frame that can be built light, built aggressive, or built for all-day adventure—while still maintaining the unmistakable composure and durability Santa Cruz is known for. Whether you’re piecing together a custom dream build or upgrading from an older platform, the Hightower frame provides a versatile, future-proof starting point for a truly capable mountain bike.

Key Features
- Premium Carbon CC frame | offering Santa Cruz’s highest strength-to-weight performance.
- 145mm VPP® rear suspension | for excellent pedaling support and big-hit composure.
- Compatible with 150–160mm forks | for a balanced all-mountain feel.
- Updated lower-link VPP design | for improved sensitivity and mid-stroke support.
- Tuned for 29-inch wheels | maximising rollover and stability on rough terrain.

| Metric | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Reach (Hi/Lo) | 435/432 | 460/457 | 480/477 | 500/497 | 525/522 |
| Stack (Hi/Lo) | 623/625 | 632/634 | 641/643 | 659/661 | 668/670 |
| Head Tube Angle (Hi/Lo) | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° |
| Head Tube Length | 110 | 120 | 130 | 150 | 160 |
| Rear Center | 434 | 436 | 439 | 442 | 445 |
| Front Center | 771 | 800 | 825 | 853 | 883 |
| BB Height (Hi/Lo) | 344/341 | 344/341 | 344/341 | 344/341 | 344/341 |
| BB Drop Front (Hi/Lo) | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| BB Drop Rear (Hi/Lo) | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| Wheelbase | 1206 | 1237 | 1264 | 1296 | 1328 |
| Top Tube Length | 572 | 595 | 614 | 636 | 662 |
| Seat Tube Length | 380 | 405 | 430 | 460 | 500 |
| Seat Tube Angle (Hi/Lo) | 77.6°/77.3° | 77.9°/77.6° | 78.2°/77.9° | 78.3°/78° | 78.4°/78.1° |
| Standover Height | 721 | 723 | 725 | 727 | 731 |
FAQs: Santa Cruz Hightower Carbon CC (Frame Only)
Basics
What size bike do I need?
What is Frame Protection and is it worth fitting it to the Hightower?
What is tubeless setup and can the Hightower be set up tubeless?
What equipment & info will the bike arrive with?
Is it possible to see the Hightower in your showroom & is it possible to have a test ride or demo it?
What type of bike is the Santa Cruz Hightower Carbon CC (Frame Only) and what is it designed for?
What type of terrain is the Hightower ideally suited towards?
How should you clean & maintain the Santa Cruz Hightower Carbon CC (Frame Only)?
Can you tell me about the Santa Cruz brand?
I'm new to riding, what essential bits of kit do I need to get going?
Where can I ride the Santa Cruz Hightower Carbon CC (Frame Only)?
Technical
Where can I find all of the major components that come on the bike?
Can you fit a water bottle on the bike?
What warranty comes on the Santa Cruz Hightower Carbon CC (Frame Only)?
Does the Santa Cruz Hightower Carbon CC (Frame Only) come with pedals?
Can I get hold of spare / replacement parts easily for the Santa Cruz Hightower Carbon CC (Frame Only)?
Can I add upgrades to the bike?
Purchasing
Why choose MTB Monster?
Do you offer 0% finance for the Santa Cruz Hightower Carbon CC (Frame Only)?
Do you accept Cycle To Work vouchers? How does it work?
I'm still sorting my payment method, can I reserve a bike?
The bike is not yet in stock, can I pre-order one?
How will the bike be delivered & what are the setup requirements?
What are the delivery options?
Can I collect the bike in the store?
I still have more questions, can I speak to someone?
- FRAME:
- Carbon CC 150mm Travel
- FRAME MATERIAL:
- Carbon
- REAR SHOCK:
- FOX Float X Factory, 230x57.5
- EXTRAS:
- N/A
- TYPE OF BIKE:
- Trail
- DESIGNED FOR:
- Exploring new trails or going on longer rides where you encounter varied terrain. More relaxed geometry than a Cross Country bike and an excellent balance of climbing ability and downhill capability making it a great all-rounder
- IDEAL TERRAIN:
- Singletrack trails with some technical descents. Up to and including red routes at trail centres.
- PLEASE NOTE:
- Santa Cruz reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.
