Mondraker Crafty Carbon R 2026
The Crafty Carbon is the ultimate enduro machine in our full-power electric mountain bike (e-MTB) lineup. Designed for riders who demand maximum performance. This full suspension e-MTB features 29” wheels and 160mm front / 150mm rear travel—perfect for tackling steep descents, technical trails, and everything in between.
Built around a lightweight yet robust carbon fibre frame, the new Crafty Carbon range comes in five distinct builds, each engineered to deliver superior control, power and durability on the toughest terrain.
Key to its trail-taming performance is the latest generation of the Zero Suspension System, now enhanced with a flip chip at the lower shock mount for fine-tuning geometry and ride feel. To ensure optimal balance and handling across all sizes, the Crafty Carbon uses two different swingarm lengths: 455mm for sizes S, M, and ML; 465mm for L and XL.
From big-mountain adventures to all-day epics, Crafty Carbon redefines what a full suspension e-MTB can do.
New Bosch CX
This top-tier e-Bike wouldn’t be complete without the latest evolution of the Bosch Performance Line CX motor. Now 100g lighter and more compact thanks to an updated internal architecture, it maintains the familiar 85Nm of torque and 600W peak power - but with noticeably smoother power delivery and improved control.

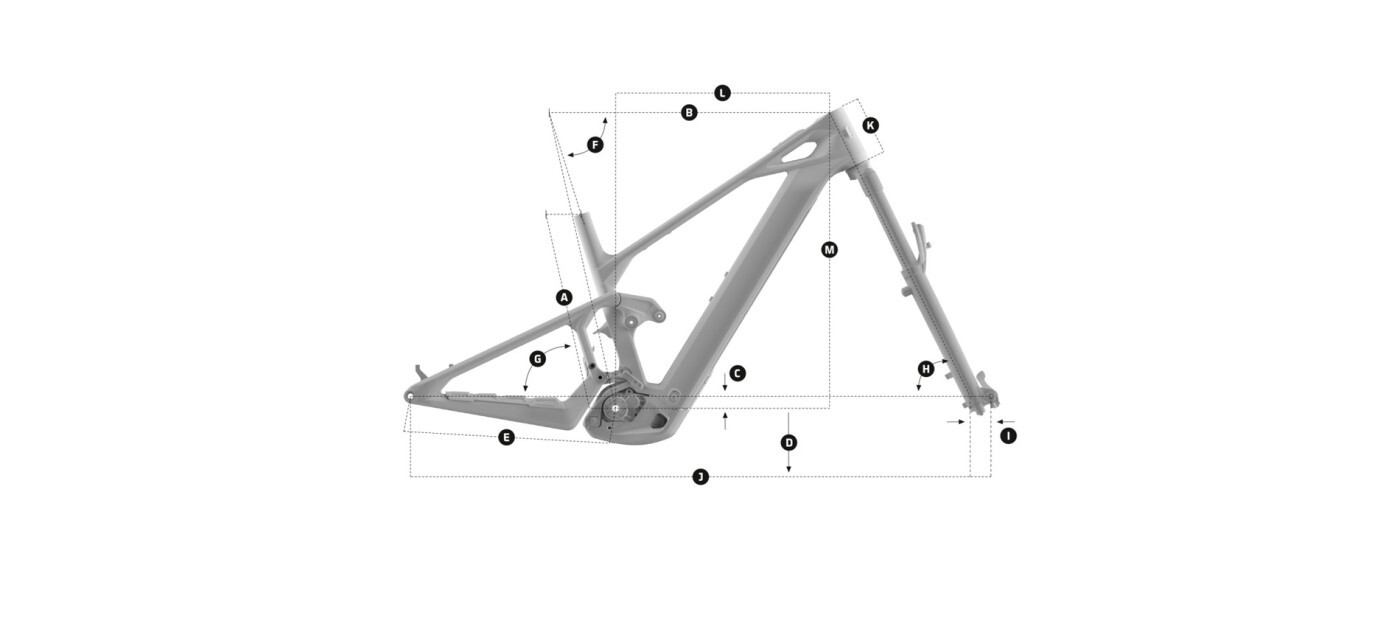

Geometry
| FRAME SIZE | S [STD/LOW] | M [STD/LOW] | M/L [STD/LOW] | L [STD/LOW] | XL [STD/LOW] | |
|---|---|---|---|---|---|---|
| A | Seattube length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| B | Toptube length | 581 mm/582 mm | 596 mm/597 mm | 618 mm/619 mm | 640 mm/641 mm | 662 mm/663 mm |
| C | Bottom bracket drop | -25 mm/-30 mm | -25 mm/-30 mm | -25 mm/-30 mm | -25 mm/-30 mm | -25 mm/-30 mm |
| D | Bottom bracket height | 350 mm/345 mm | 350 mm/345 mm | 350 mm/345 mm | 350 mm/345 mm | 350 mm/345 mm |
| E | Chainstay length | 455 mm/456 mm | 455 mm/456 mm | 455 mm/456 mm | 465 mm/466 mm | 465 mm/466 mm |
| F | Seat tube angle | 73.92°/73.65° | 73.92°/73.65° | 73.92°/73.65° | 73.92°/73.65° | 73.92°/73.65° |
| G | Effective seattube angle | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° |
| H | Headtube angle | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° |
| I | Fork Offset | 44 mm | 44 mm | 44 mm/44 mm | 44 mm/44 mm | 44 mm/44 mm |
| J | Wheelbase | 1240 mm/1241 mm | 1255 mm/1256 mm | 1280 mm/1281 mm | 1314 mm/1315 mm | 1338 mm/1339 mm |
| K | Headtube length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| L | Reach | 445 mm/441 mm | 460 mm/456 mm | 480 mm/476 mm | 500 mm/496 mm | 520 mm/516 mm |
| M | Stack | 638 mm/641 mm | 638 mm/641 mm | 647 mm/650 mm | 656 mm/659 mm | 665 mm/668 mm |
- FRAME:
- Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link,
- FRAME MATERIAL:
- Carbon Main Frame / Alloy Rear Triangle
- FORK BRAND:
- Fox
- FORK:
- Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
- FORK TRAVEL:
- 160 mm
- REAR SHOCK:
- Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
- MOTOR:
- Bosch
- MOTOR CONTROLLER:
- Bosch Smart System Mini Remote & System Controller
- DISPLAY:
- Bosch Kiox 400
- DRIVE UNIT:
- Bosch Performance Line CX Gen 5 (85 Nm ) Smart System
- BATTERY:
- Bosch PowerTube 800 Wh Battery
- RANGE EXTENDER:
- Bosch PowerMore 250Wh Available for Purchase
- CHARGER:
- Included
- WHEEL SIZE:
- 29
- WHEELS:
- Rims: Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes Front Hub: Mavic, Boost 15x110mm, IS 6 bolts / Rear Hub: Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub ? Spokes: Mavic J-bend double butted, co
- TYRES:
- Front: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead / Rear: Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
- DROPPER SEATPOST:
- Yes
- SEATPOST:
- Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
- SADDLE:
- Ergon SM-10
- CRANKSET:
- Race Face Aeffect-R ebike, 160mm
- STEM:
- Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
- GRIPS:
- Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
- SHIFTERS:
- Sram Eagle AXS Pod MMX, 12s
- BRAKE BRAND:
- Sram
- HYDRAULIC BRAKES:
- Yes
- BRAKES:
- Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
- REAR DERAILLEUR:
- Sram S1000 Eagle AXS T-Type, 12s
- CHAIN:
- Sram GX Eagle T-Type, 12s, Powerlock
- NUMBER OF GEARS:
- 12 Speed
- PEDALS:
- Available for Purchase
- FRONT MUDGUARD:
- MTB Monster Mugduard
- EXTRAS:
- N/A
- TYPE OF BIKE:
- Enduro
- DESIGNED FOR:
- Conquering challenging terrain that mixes technical climbs with rough, steep descents. Its superb balance of weight and downhill capability making it a firm favourite with more aggressive riders.
- IDEAL TERRAIN:
- Excels on downhill sections with features like drops, jumps, rock gardens, and loose scree. Whether you're racing enduro, hitting the bike park, or tackling a black run, an enduro MTB can handle it all.
- PLEASE NOTE:
- Mondraker reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials
