New Cube Stereo Hybrid One77 Race 800 2026
Full Power. No Limits.

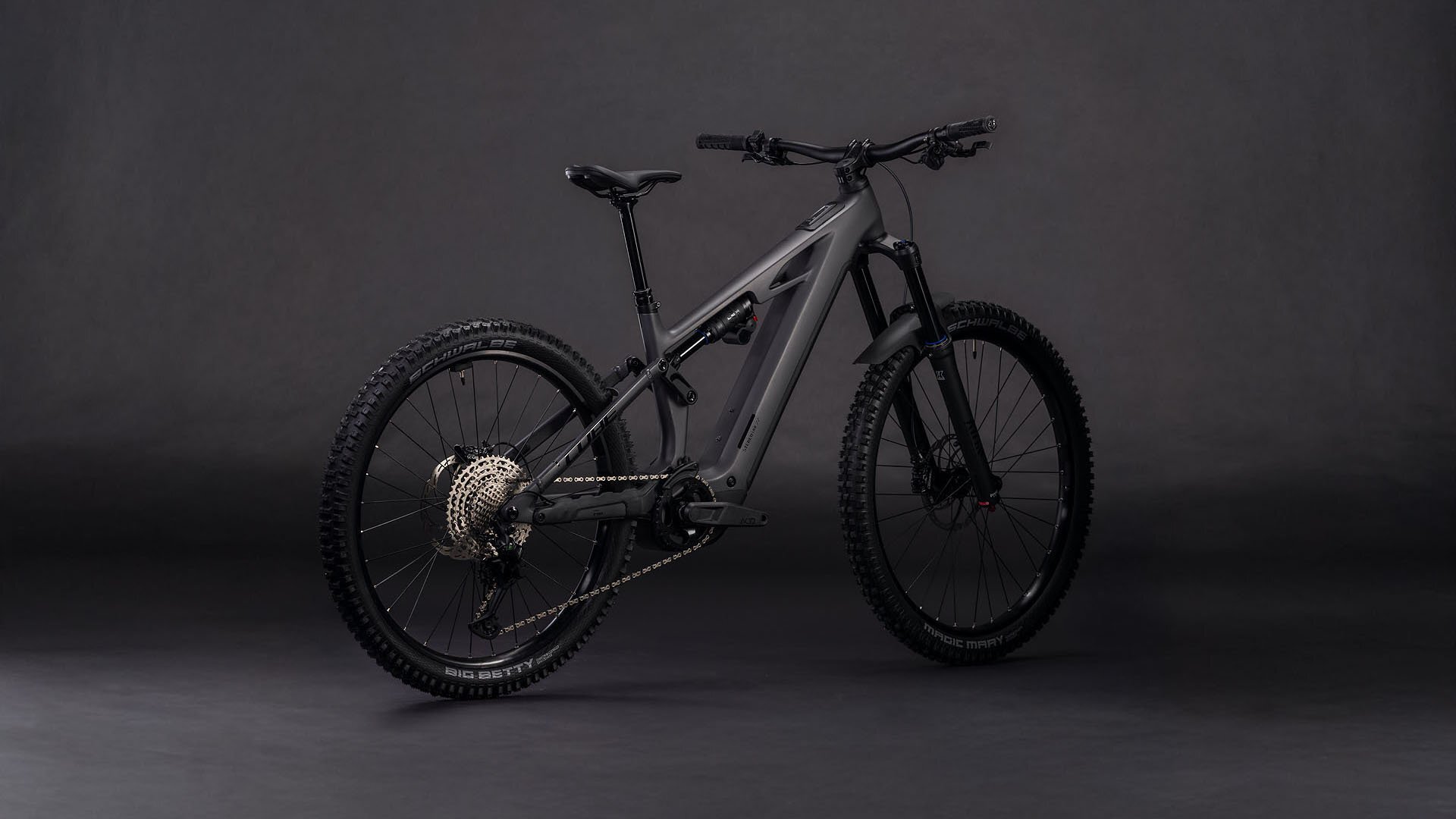

Big mountain terrain demands an emtb that can rise to the challenge, and the Cube Stereo ONE77 HPC Race is built to do exactly that. With 170mm of travel front and rear and a mullet wheel setup – 29in up front for roll-over confidence and 27.5in at the rear for agility – this full-suspension electric mountain bike is engineered for riders who push hard on demanding trails and long alpine descents.
The carbon main frame is not only light and stiff but also refined in its detail. Integrated Cable Routing keeps the lines clean, while an angle-adjustable headset allows you to fine-tune handling to your riding style and terrain. A UDH dropout adds future-proof durability, and a Direct Mount chain guide ensures reliability when the trails turn rough.

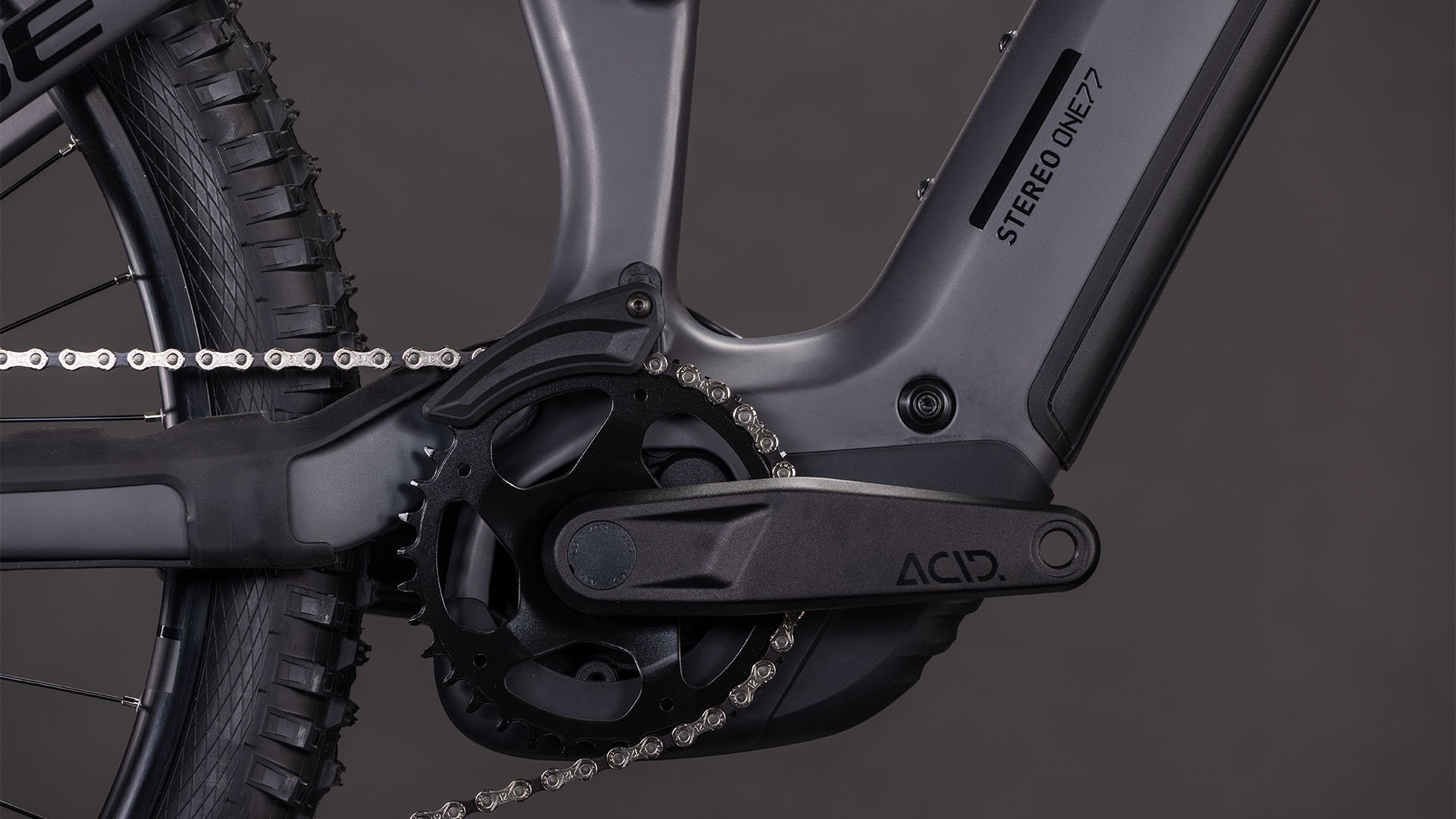

At its core lies Bosch’s fourth-generation Performance CX drive unit, paired with an 800Wh PowerTube battery neatly housed in the down tube. The result is seamless, intuitive power delivery with the range to keep you riding further and exploring higher.
Bosch Drive Unit Performance Line CX max. 100Nm
The Performance Line CX Gen 5 takes riding dynamics and agility to a whole new level. It is powerful, light and quiet. Ten years of experience and countless trail rides all over the world have gone into its further development.
Big travel. Bosch power. Trail ready.
FRAME MATERIAL
BATTERY
MOTOR
WHEELS
Stereo ONE77 Race - in depth

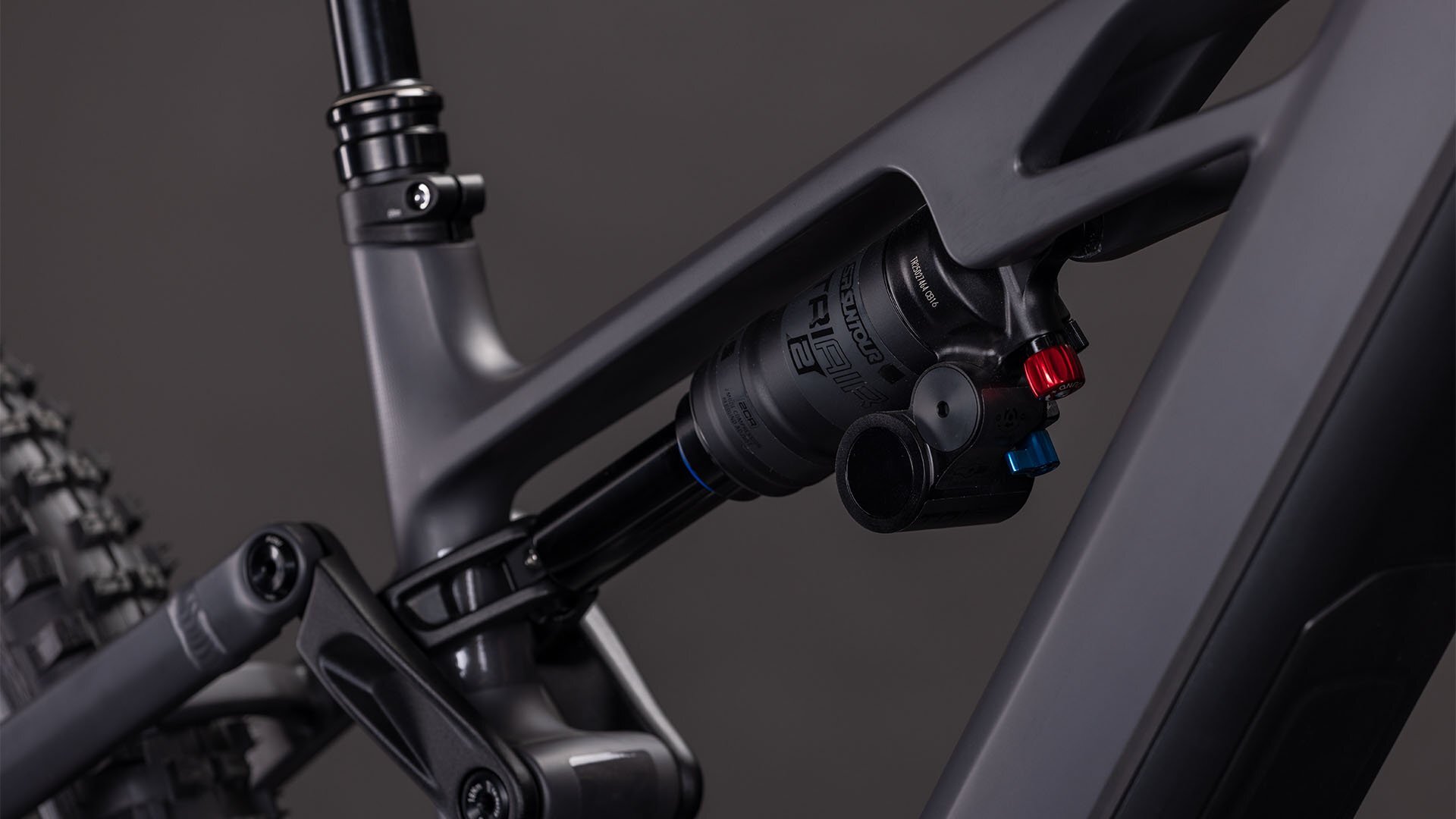

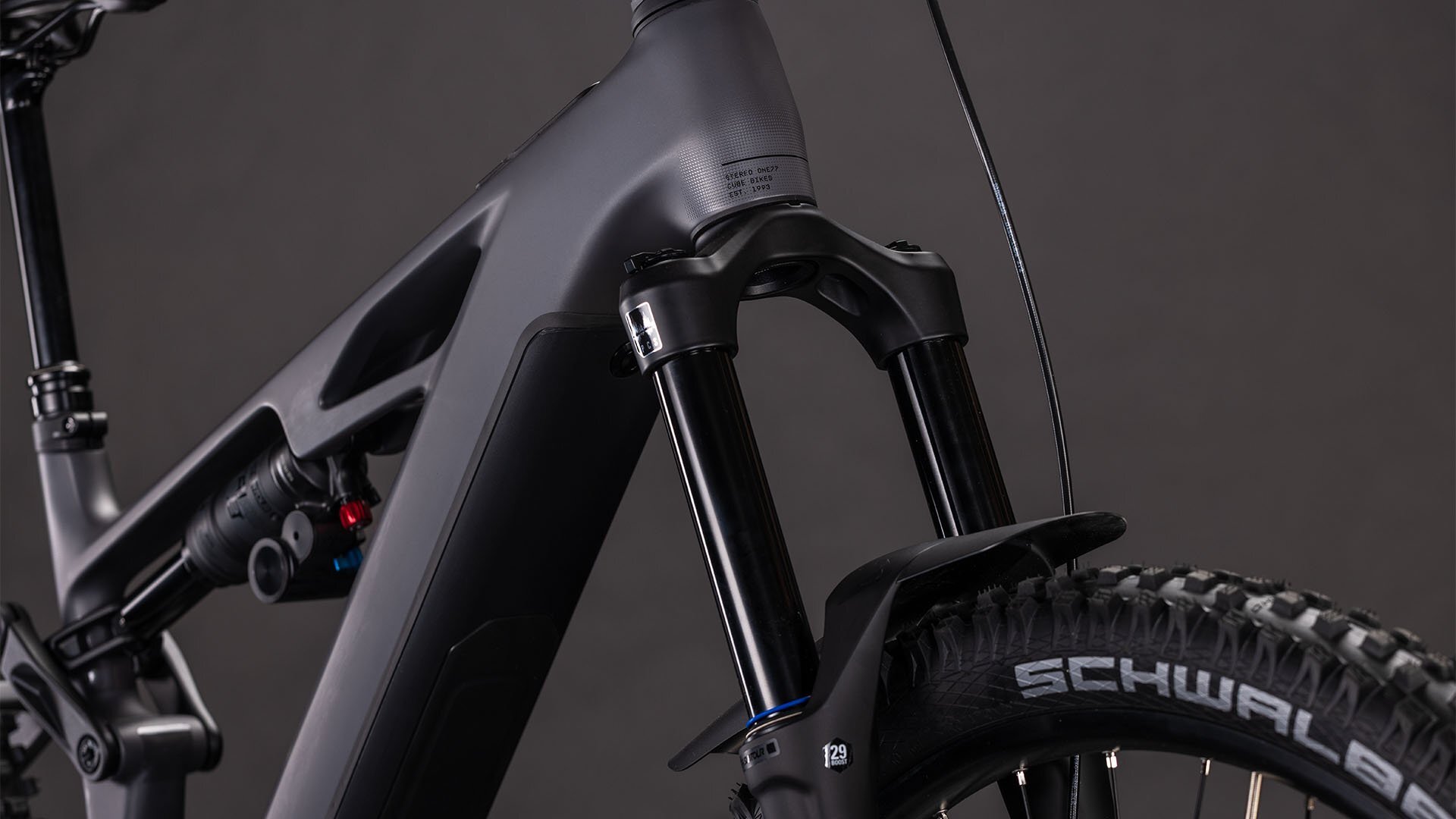

You can tell from its purposeful stance and mullet wheel sizing that the Stereo Hybrid ONE77 HPC Race means business. But the devil, as always, is in the detail. The Bosch CX drive and 800Wh PowerTube battery work with Shimano's XT 12-speed gears to swallow tricky routes whole. Meanwhile, a pair of Magura MT Louise hydraulic disc brakes and 2.4in Schwalbe Magic Mary and Big Betty tyres have the grip you need to stay in control, whatever the trail throws your way. A Suntour Aion 38X fork and Triair 2CR piggyback shock help keep the rubber side down and rolling. And, with a remote dropper post thrown into the mix, the only question is which line you'll take back down the mountain.
Geometry
Slack/Moderate | S | M | L | XL |
---|---|---|---|---|
Seat tube | 370 | 405 | 420 | 480 |
Top Tube Horizontal | 572 / 573 | 597 / 598 | 625 / 626 | 659 / 661 |
Seat angle | 76.7° / 76.5° | 76.7° / 76.5° | 76.7° / 76.5° | 76.7° / 76.5° |
Head tube angle | 63.8° / 64.4° | 63.8° / 64.4° | 63.8° / 64.4° | 63.8° / 64.4° |
Chainstays | 443 | 443 | 443 | 443 |
Head tube | 103 | 103 | 115 | 130 |
Wheelbase | 1213 / 1206 | 1238 / 1231 | 1269 / 1261 | 1305 / 1297 |
BB-Height to Hub | 13 | 13 | 13 | 13 |
Protrusion height - 80mm | 758 | 754 | 753 | 752 |
Reach | 427 / 425 | 452 / 450 | 477 / 475 | 506 / 505 |
Stack | 635 / 637 | 635 / 637 | 645 / 648 | 659 / 661 |
S | M | L | XL | |
---|---|---|---|---|
Stem length | 50 | 50 | 50 | 50 |
Angle stem | 12° | 12° | 12° | 12° |
Handlebar width | 780 | 780 | 780 | 780 |
Crank length | 165 | 165 | 165 | 165 |
Length seat post | 411 | 476 | 476 | 541 |
Diameter seatpost | 31.6 | 31.6 | 31.6 | 31.6 |
Max. insertion depth seat post | 215 | 255 | 270 | 315 |
Stroke seatpost | 150 | 180 | 180 | 210 |
Diameter tire maximum | 721 | 721 | 721 | 721 |
Width tire maximum | 66 | 66 | 66 | 66 |
Rear suspension travel | 172 | 172 | 172 | 172 |
FAQs: Cube Stereo Hybrid One77 HPC Race 800
Basics
What size bike do I need?
What is Frame Protection and is it worth fitting it to the Stereo?
What is tubeless setup and can the Stereo be set up tubeless?
What equipment & info will the bike arrive with?
Is it possible to see the Stereo in your showroom & is it possible to have a test ride or demo it?
What type of bike is the Stereo and what is it designed for?
What type of terrain is the Stereo ideally suited towards?
Can the Cube Stereo Hybrid One77 HPC Race 800 get wet and muddy?
How should you clean & maintain the Cube Stereo Hybrid One77 HPC Race 800?
Can you tell me about the Cube brand?
I'm new to riding, what essential bits of kit do I need to get going?
Where can I ride the Cube Stereo Hybrid One77 HPC Race 800?
Technical
Where can I find all of the major components that come on the bike?
Can you fit a water bottle on the Cube Stereo Hybrid One77 HPC Race 800?
What warranty comes on the Cube Stereo Hybrid One77 HPC Race 800?
Does the Cube Stereo Hybrid One77 HPC Race 800 come with pedals?
Can I get hold of spare / replacement parts easily for the Cube Stereo Hybrid One77 HPC Race 800?
Are electric bikes legal? How fast can the Cube Stereo Hybrid One77 HPC Race 800 go?
Do I need a license to ride the Cube Stereo Hybrid One77 HPC Race 800 in the UK?
Can I add upgrades to the bike?
Electric / Battery
How should I store the bike?
What is the battery lifespan on a Cube Stereo Hybrid One77 HPC Race 800?
Are Lithium-Ion batteries safe?
Is the internal battery removable on the Cube Stereo Hybrid One77 HPC Race 800?
What is the expected range of the battery on the Cube Stereo Hybrid One77 HPC Race 800?
What is a range extender and can you add one to the Cube Stereo Hybrid One77 HPC Race 800?
Does the bike arrive fully charged and ready to go?
How to charge the battery on the Cube Stereo Hybrid One77 HPC Race 800?
How long does it take to charge the battery?
How is the motor protected ?
Purchasing
Why choose MTB Monster?
Do you offer 0% finance for the Cube Stereo Hybrid One77 HPC Race 800?
Do you accept Cycle To Work vouchers? How does it work?
I'm still sorting my payment method, can I reserve a bike?
The bike is not yet in stock, can I pre-order one?
How will the bike be delivered & what are the setup requirements?
What are the delivery options?
Can I collect the bike in the store?
I still have more questions, can I speak to someone?
- FRAME:
- C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
- FRAME MATERIAL:
- Carbon
- FORK BRAND:
- SR Suntour
- FORK:
- SR Suntour Aion 38X 2CR Air, Tapered, 15x110mm, Lockout, 170mm
- FORK TRAVEL:
- 170 mm
- REAR SHOCK:
- SR Suntour TRIAir 2CR 230x65mm
- MOTOR:
- Bosch
- MOTOR CONTROLLER:
- Bosch Smart System Mini Remote & System Controller
- DISPLAY:
- Not Included
- DRIVE UNIT:
- Bosch Performance Line CX Gen 5 (85 Nm - 100 Nm ) Smart System
- BATTERY:
- Bosch PowerTube 800 Wh Battery
- RANGE EXTENDER:
- Available for Purchase
- CHARGER:
- Bosch 2A
- WHEEL SIZE:
- 27.5 R 29 F
- WHEELS:
- ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
- TYRES:
- Front: Schwalbe Magic Mary, Performance, 2.4 / Rear: Schwalbe Big Betty, Performance, 2.4
- DROPPER SEATPOST:
- Yes
- SEATPOST:
- CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
- SADDLE:
- ACID Venec EMTB Trail 140
- CRANKSET:
- ACID MTB Hybrid Pro, 36T
- STEM:
- CUBE Performance Stem E-MTB 35, FPI-Link
- GRIPS:
- ACID Disrupt, Soft Compound
- SHIFTERS:
- Shimano Deore SL-M6100, Rapidfire-Plus
- BRAKE BRAND:
- Magura
- HYDRAULIC BRAKES:
- Yes
- BRAKES:
- Magura Louise, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
- REAR DERAILLEUR:
- Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
- CHAIN:
- KMC e12
- NUMBER OF GEARS:
- 12 Speed
- PEDALS:
- ACID PP MTB
- FRONT MUDGUARD:
- MTB Monster Front Mudguard
- EXTRAS:
- N/A
- TYPE OF BIKE:
- Enduro
- DESIGNED FOR:
- Conquering challenging terrain that mixes technical climbs with rough, steep descents. Its superb balance of weight and downhill capability making it a firm favourite with more aggressive riders.
- IDEAL TERRAIN:
- Excels on downhill sections with features like drops, jumps, rock gardens, and loose scree. Whether you're racing enduro, hitting the bike park, or tackling a black run, an enduro MTB can handle it all.
- PLEASE NOTE:
- Cube reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials
