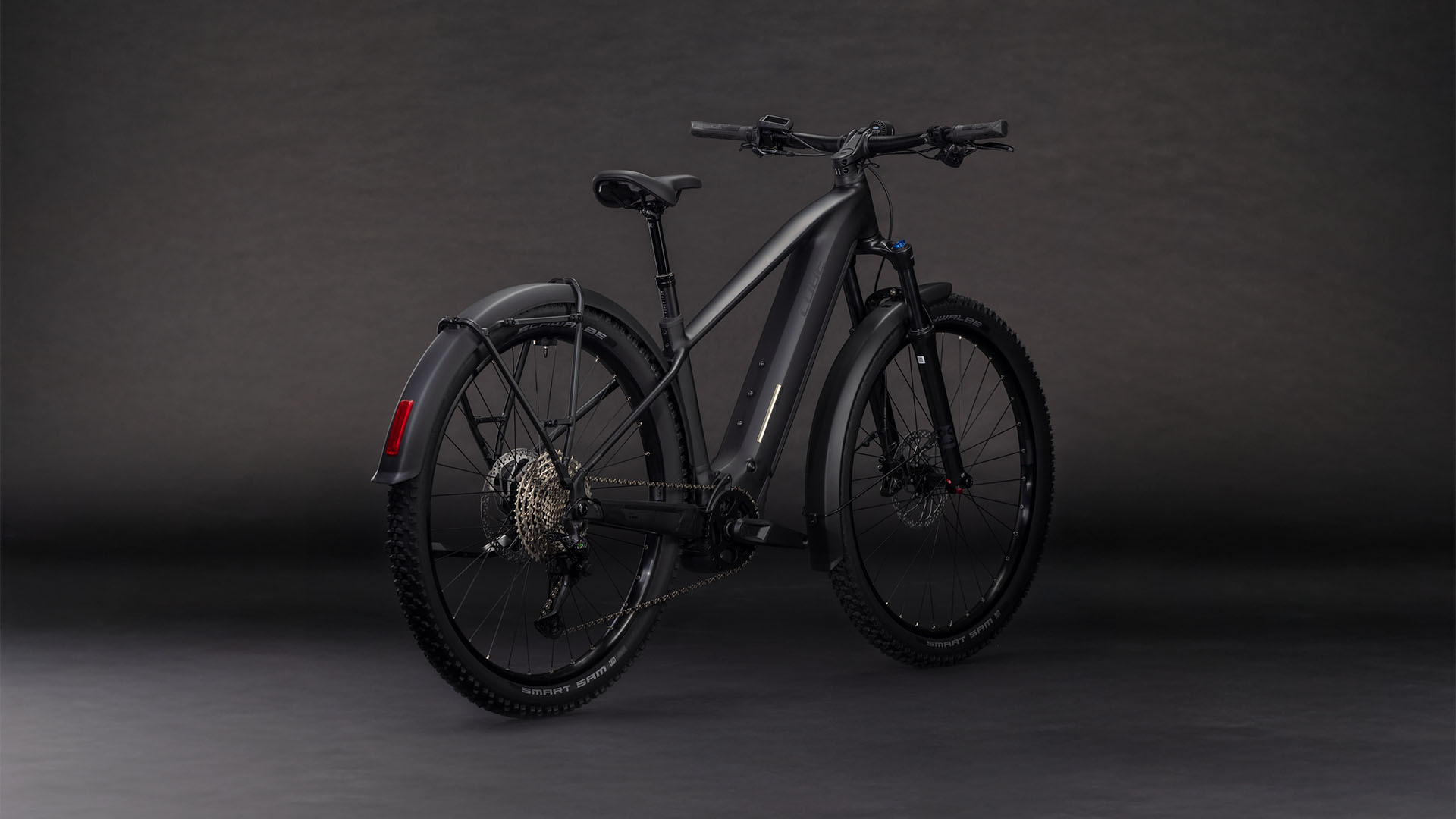

New Cube Reaction Hybrid Pro FE 800 2026
Reaction - Urban and off road capable
The Cube Reaction Hybrid 2026 combines the efficiency of a hardtail with the seamless support of Bosch’s Performance CX drive unit, making it a highly capable electric mountain bike for trail riding, commuting, or weekend adventures. The 800Wh PowerTube battery is neatly integrated into the frame, giving the bike clean lines and long-range performance.
Attention to detail is everywhere: an integrated seat clamp and internal cable routing enhance the sleek design, while a pre-installed chain guide adds reliability on rougher terrain. The frame is ready to accept ACID mudguards and a luggage carrier, and with X-Connect, adding a compatible ACID front light is as simple as plugging it into the headset.
For riders who want to go even further, the Reaction Hybrid is PowerMore-ready, allowing the addition of an optional 250Wh range extender. And thanks to Cube’s Size Split system, there’s a perfectly proportioned frame for almost every rider.
Bosch Purion 200 display
Control unit with compact colour display and fully networked in the smart system: that's the Purion 200. The all-in-one solution ensures an uncluttered handlebar, is in close proximity to the thumb and offers a razor-sharp display of ride data as well as simple, ergonomic control of all eBike functions. Combine the Purion 200 with an additional display – for even greater convenience.
Big travel. Bosch power. Trail ready.
FRAME MATERIAL
BATTERY
MOTOR
Reaction Hybrid Pro FE 800 - in depth
Best of all worlds: the Reaction Hybrid Pro FE combines the versatility of a fully equipped tourer and the ruggedness of a mountain bike, with added Bosch power. The mudguards, luggage carrier, kickstand and lights are just the start. You can also tackle any route, off-road or on, with ease thanks to an 800Wh battery and powerful Bosch CX drive. Combined with Shimano's easy-to-use XT 12-speed gears, it's all you need to comfortably ride any hill. For coming back down the other side, we fitted strong Shimano 4-piston hydraulic disc brakes and grippy Schwalbe 2.6in tyres. There's also an air-sprung fork with 120mm of travel (100mm for small frame sizes and for all Easy Entry models), and a remote dropper seatpost for extra comfort and control on rougher trails.

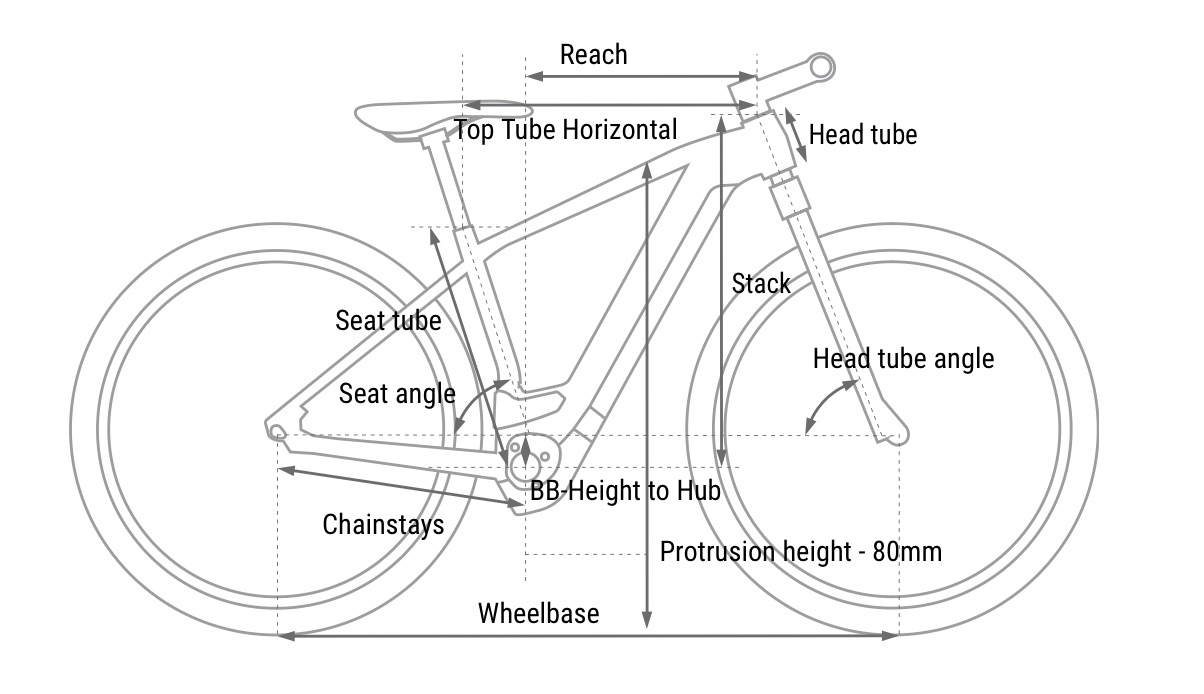

Geometry
S | M | L | XL | XXL | |
---|---|---|---|---|---|
Seat tube | 370 | 405 | 450 | 495 | 545 |
Top Tube Horizontal | 587 | 607 | 627 | 647 | 667 |
Seat angle | 74.5° | 74° | 74° | 74° | 74° |
Head tube angle | 67.5° | 67.5° | 67.5° | 67.5° | 67.5° |
Chainstays | 456 | 470 | 470 | 470 | 470 |
Head tube | 159 | 110 | 120 | 130 | 145 |
Wheelbase | 1157 | 1176 | 1198 | 1218 | 1240 |
BB-Height to Hub | 46 | 65 | 65 | 65 | 65 |
Protrusion height - 80mm | 755 | 778 | 782 | 787 | 824 |
Reach | 409 | 420 | 437 | 455 | 471 |
Stack | 646 | 653 | 662 | 674 | 685 |
S | M | L | XL | XXL | |
---|---|---|---|---|---|
Stem length | 60 | 60 | 60 | 60 | 60 |
Angle stem | 12° | 12° | 12° | 12° | 12° |
Handlebar width | 740 | 740 | 740 | 740 | 740 |
Crank length | 165 | 175 | 175 | 175 | 175 |
Length seat post | 350 | 350 | 400 | 400 | 400 |
Diameter seatpost | 31.6 | 31.6 | 31.6 | 31.6 | 31.6 |
Max. insertion depth seat post | 205 | 250 | 280 | 230 | 270 |
Stroke seatpost | 100 | 100 | 130 | 130 | 130 |
Diameter tire maximum | 722 | 760 | 760 | 760 | 760 |
Width tire maximum | 66 | 66 | 66 | 66 | 66 |
FAQs: Cube Reaction Hybrid Pro 800 FE 2026
Basics
What size bike do I need?
What is Frame Protection and is it worth fitting it to the reaction?
What is tubeless setup and can the reaction be set up tubeless?
What equipment & info will the bike arrive with?
Is it possible to see the reaction in your showroom & is it possible to have a test ride or demo it?
What type of bike is the reaction and what is it designed for?
What type of terrain is the reaction ideally suited towards?
Can the Cube Reaction Hybrid Pro 800 FE 2026 get wet and muddy?
How should you clean & maintain the Cube Reaction Hybrid Pro 800 FE 2026?
Can you tell me about the Cube brand?
I'm new to riding, what essential bits of kit do I need to get going?
Where can I ride the Cube Reaction Hybrid Pro 800 FE 2026?
Technical
Where can I find all of the major components that come on the bike?
Can you fit a water bottle on the Cube Reaction Hybrid Pro 800 FE 2026?
What warranty comes on the Cube Reaction Hybrid Pro 800 FE 2026?
Does the Cube Reaction Hybrid Pro 800 FE 2026 come with pedals?
Can I get hold of spare / replacement parts easily for the Cube Reaction Hybrid Pro 800 FE 2026?
Are electric bikes legal? How fast can the Cube Reaction Hybrid Pro 800 FE 2026 go?
Do I need a license to ride the Cube Reaction Hybrid Pro 800 FE 2026 in the UK?
Can I add upgrades to the bike?
Electric / Battery
How should I store the bike?
What is the battery lifespan on a Cube Reaction Hybrid Pro 800 FE 2026?
Are Lithium-Ion batteries safe?
Is the internal battery removable on the Cube Reaction Hybrid Pro 800 FE 2026?
What is the expected range of the battery on the Cube Reaction Hybrid Pro 800 FE 2026?
What is a range extender and can you add one to the Cube Reaction Hybrid Pro 800 FE 2026?
Does the bike arrive fully charged and ready to go?
How to charge the battery on the Cube Reaction Hybrid Pro 800 FE 2026?
How long does it take to charge the battery?
How is the motor protected ?
Purchasing
Why choose MTB Monster?
Do you offer 0% finance for the Cube Reaction Hybrid Pro 800 FE 2026?
Do you accept Cycle To Work vouchers? How does it work?
I'm still sorting my payment method, can I reserve a bike?
The bike is not yet in stock, can I pre-order one?
How will the bike be delivered & what are the setup requirements?
What are the delivery options?
Can I collect the bike in the store?
I still have more questions, can I speak to someone?
- FRAME:
- Aluminium Superlite, Gravity Casting Technology, Agile Ride Geometry, Boost148, Fully Integrated Battery, Advanced Internal Cable Routing, 1.5 Headtube, Kickstand/Fender/Carrier Mounting Points
- FRAME MATERIAL:
- Aluminium
- FORK BRAND:
- SR Suntour
- FORK:
- SR Suntour X1-32 LO-R Air, Tapered, 15x110mm, 120mm (27.5: 100mm)
- FORK TRAVEL:
- 120 mm
- MOTOR:
- Bosch
- MOTOR CONTROLLER:
- Bosch Smart System Purion 200
- DISPLAY:
- Not Included
- DRIVE UNIT:
- Bosch Performance Line CX Gen 5 (85 Nm - 100 Nm ) Smart System
- BATTERY:
- Bosch PowerTube 800 Wh Battery
- RANGE EXTENDER:
- Available for Purchase
- CHARGER:
- Bosch 2A
- WHEEL SIZE:
- 29
- WHEELS:
- ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
- TYRES:
- Schwalbe Smart Sam, Active, 2.6
- DROPPER SEATPOST:
- Yes
- SEATPOST:
- CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
- SADDLE:
- ACID Sequence 160
- CRANKSET:
- ACID MTB Hybrid Pro, 38T
- STEM:
- CUBE Performance Stem E-MTB 35, FPI-Link
- GRIPS:
- ACID Hybrid Perform
- SHIFTERS:
- Shimano Deore SL-M6100-IR, Direct Attach
- BRAKE BRAND:
- Shimano
- HYDRAULIC BRAKES:
- Yes
- BRAKES:
- Shimano BR-MT420, Hydr. Disc Brake (203/203)
- REAR DERAILLEUR:
- Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
- CHAIN:
- KMC e12
- NUMBER OF GEARS:
- 12 Speed
- PEDALS:
- ACID PP Trekking
- FRONT LIGHT:
- ACID Front Light PRO-E 150 X-Connect, 12V, DC
- REAR LIGHT:
- ACID Mudguard Rear Light PRO-E, 12V, DC
- KICKSTAND:
- ACID FM Pure Kickstand
- FRONT MUDGUARD:
- ACID 85 BB-Mount
- REAR MUDGUARD:
- ACID 85 BB-Mount
- BELL:
- Knog Oi
- PANNIER CARRIER:
- ACID Carrier SIC 2.0 Rail Boost
- EXTRAS:
- N/A
- TYPE OF BIKE:
- Cross Country
- DESIGNED FOR:
- Speed and efficiency on the climbs, perfect for covering longer distances quickly due to a lightweight frame.
- IDEAL TERRAIN:
- Smoother, single-track off-road trails with minimal technical features. Can be used for both road and off-road riding.
- PLEASE NOTE:
- Cube reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials
