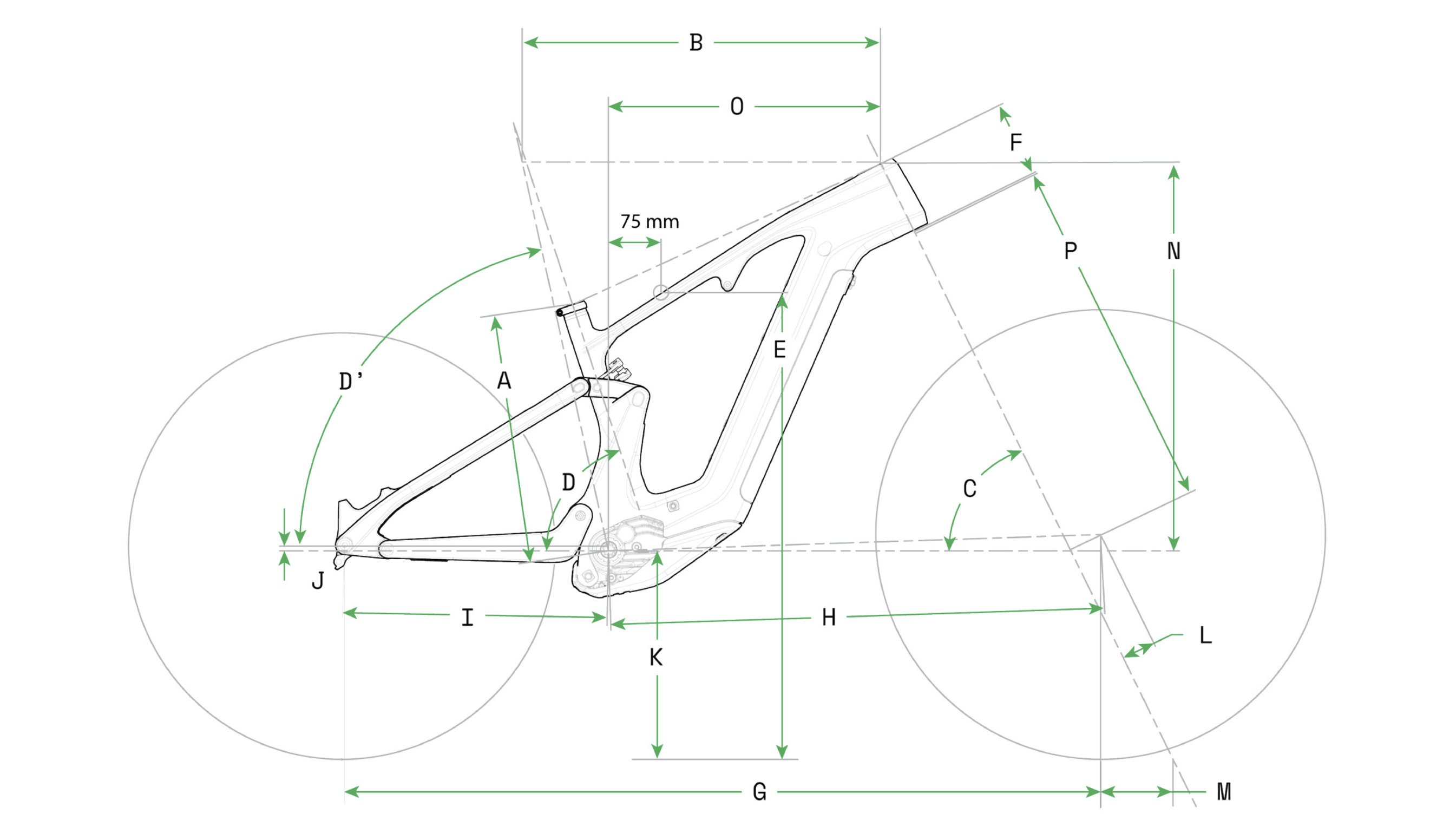

Geometry
| Measurement | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheel Size | 29 F | 29 F | 29 F | 29 F |
| A - Seat Tube Length (cm) | 38.0 | 40.0 | 42.0 | 46.0 |
| B - Top Tube Horizontal (cm) | 57.0 | 59.5 | 62.2 | 65.8 |
| C - Head Tube Angle | 64.4° | 64.4° | 64.4° | 64.4° |
| D¹ - Seat Tube Angle Effective | 77.7° | 77.7° | 77.7° | 77.7° |
| D - Seat Tube Angle Actual | 72.1° | 72.2° | 72.4° | 72.4° |
| E - Standover (cm) | 75.2 | 76.2 | 77.5 | 78.5 |
| F - Head Tube Length (cm) | 12.5 | 12.5 | 13.5 | 14.5 |
| G - Wheelbase (cm) | 122.5 | 125.0 | 128.4 | 132.3 |
| H - Front Center (cm) | 77.2 | 79.7 | 82.6 | 86.5 |
| I - Chain Stay Length (cm) | 45.5 | 45.5 | 46.0 | 46.0 |
| J - Bottom Bracket Drop (cm) | 3.3 | 3.4 | 3.4 | 3.4 |
| K - Bottom Bracket Height (cm) | 34.6 | 34.6 | 34.6 | 34.6 |
| L - Fork Rake (cm) | 4.4 | 4.4 | 4.4 | 4.4 |
| M - Trail (cm) | 13.3 | 13.3 | 13.3 | 13.3 |
| N - Stack (cm) | 64.4 | 64.4 | 65.3 | 66.1 |
| O - Reach (cm) | 43.0 | 45.5 | 48.0 | 51.5 |
| P - Reach (cm) | 57.6 | 57.6 | 57.6 | 57.6 |
- FRAME:
- Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtu
- FRAME MATERIAL:
- Carbon
- FORK BRAND:
- Fox
- FORK:
- Fox Float Factory 38, 160mm, GripX2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
- FORK TRAVEL:
- 160 mm
- REAR SHOCK:
- Fox Float X Factory, Kashima coating, 2 pos adj, EVOL LV, 230x62.5mm
- MOTOR:
- Bosch
- MOTOR CONTROLLER:
- Bosch Smart System Mini Remote & System Controller
- DISPLAY:
- Bosch Smart System Kiox 500
- DRIVE UNIT:
- Bosch Performance Line CX Gen 5 (85 Nm ) Smart System
- BATTERY:
- Bosch PowerTube 800 Wh Battery
- RANGE EXTENDER:
- Bosch PowerMore 250Wh (Purchased Separately) Currently out of stock
- CHARGER:
- Bosch 4A
- WHEEL SIZE:
- 29
- WHEELS:
- Rims: DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready) Hubs:(F) DT Swiss 370, 15×110mm thru-axle / (R) DT Swiss 370 Ratchet System routing, 34.9, 150mm (S), 170mm 18, 12×148mm thru-axle, 6-bolt / Spokes: DT Swiss Competition, straight p
- TYRES:
- (F) Continental Kryptotal-F, 29×2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29×2.4", Enduro Soft Black Foldable
- DROPPER SEATPOST:
- Yes
- SEATPOST:
- Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
- SADDLE:
- Fizik Terra Aidon X5, 145mm
- CRANKSET:
- e'thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T
- STEM:
- Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0°
- GRIPS:
- Cannondale TaperRidge
- SHIFTERS:
- SRAM Eagle AXS T-Type Pod Controller
- BRAKE BRAND:
- Magura
- HYDRAULIC BRAKES:
- Yes
- BRAKES:
- Magura MT7 4-piston hydraulic disc, 220/203mm MDR-P rotors
- REAR DERAILLEUR:
- SRAM XO Eagle AXS, T-Type
- CHAIN:
- SRAM GX T-Type, 12-speed
- NUMBER OF GEARS:
- 12 Speed
- PEDALS:
- Available for Purchase
- FRONT MUDGUARD:
- MTB Monster Mudguard
- EXTRAS:
- Tubeless Valve Stems
- TYPE OF BIKE:
- Enduro
- DESIGNED FOR:
- Conquering challenging terrain that mixes technical climbs with rough, steep descents. Its superb balance of weight and downhill capability making it a firm favourite with more aggressive riders.
- IDEAL TERRAIN:
- Excels on downhill sections with features like drops, jumps, rock gardens, and loose scree. Whether you're racing enduro, hitting the bike park, or tackling a black run, an enduro MTB can handle it all.
- PLEASE NOTE:
- Cannondale reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.
