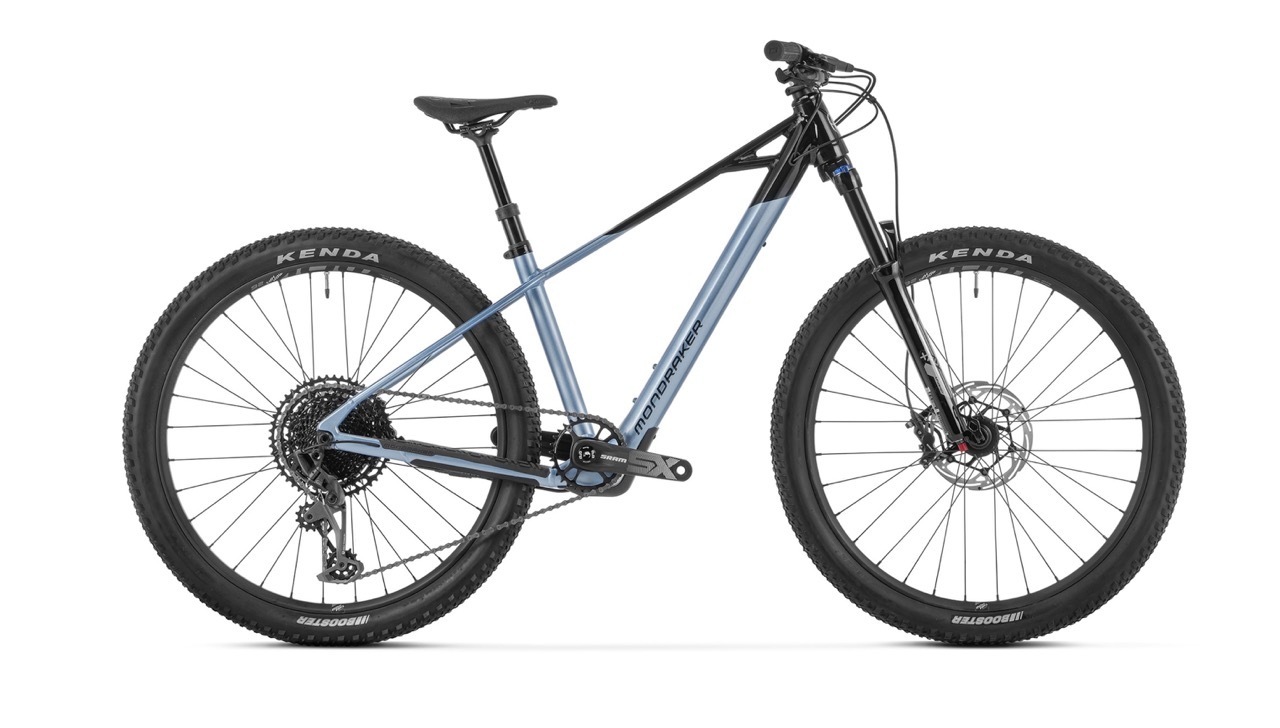

Mondraker Play 26 – Kids’ Electric Hardtail Mountain Bike
Built for Young Trail Riders
The Mondraker Play 26 is a purpose-built kids’ electric hardtail mountain bike designed for ambitious young riders who are ready to take their trail skills to the next level. With larger 26” wheels, more suspension travel and upgraded components, it strikes the perfect balance of capability, control and confidence for juniors stepping up from smaller bikes.
Frame & Drive System
At the core of the Play 26 is a 6061 Alloy Stealth Evo hardtail frame, built with hydroformed tubing and fully integrated internal cable routing for a clean, premium look. The 250Wh Mahle Ebikemotion battery sits seamlessly in the downtube, paired with the Mahle X-35 motor system for smooth, natural pedal-assist support. A slimline Ebikemotion display keeps controls simple, making this junior e-MTB easy to use on any ride.
Braking & Drivetrain
Braking is handled by SRAM G2 R four-piston callipers with a 180mm front rotor and 160mm rear rotor, delivering powerful and consistent stopping control with tool-free reach adjustment for smaller hands. The drivetrain comes from SRAM’s renowned Eagle system, with a GX rear derailleur, NX shifter and SX crankset running a 12-speed 11-52T cassette and 30T chainring. This gives the Play 26 a huge gear range, perfect for both steep climbs and fast descents.
Suspension & Wheels
The Play 26 features a X-Fusion Velvet RL 26 fork with 120mm of air-sprung travel, offering extra capability and control over rougher trails. The larger 26” wheels roll on MDK-HP1 rims, paired with wide Kenda Booster 2.4” tyres to give the right mix of rolling speed, grip and stability — a noticeable step up in performance compared to smaller-wheeled kids’ mountain bikes.
More Than a Scaled-Down Bike
The Mondraker Play 26 isn’t just a scaled down adult bike – it’s a carefully engineered kids’ hardtail e-MTB that equips young riders with the tools to push their riding further. With more suspension, larger wheels, a wider gear range and dropper post functionality, it’s the perfect choice for juniors who want to ride harder, faster and with more confidence on challenging terrain.

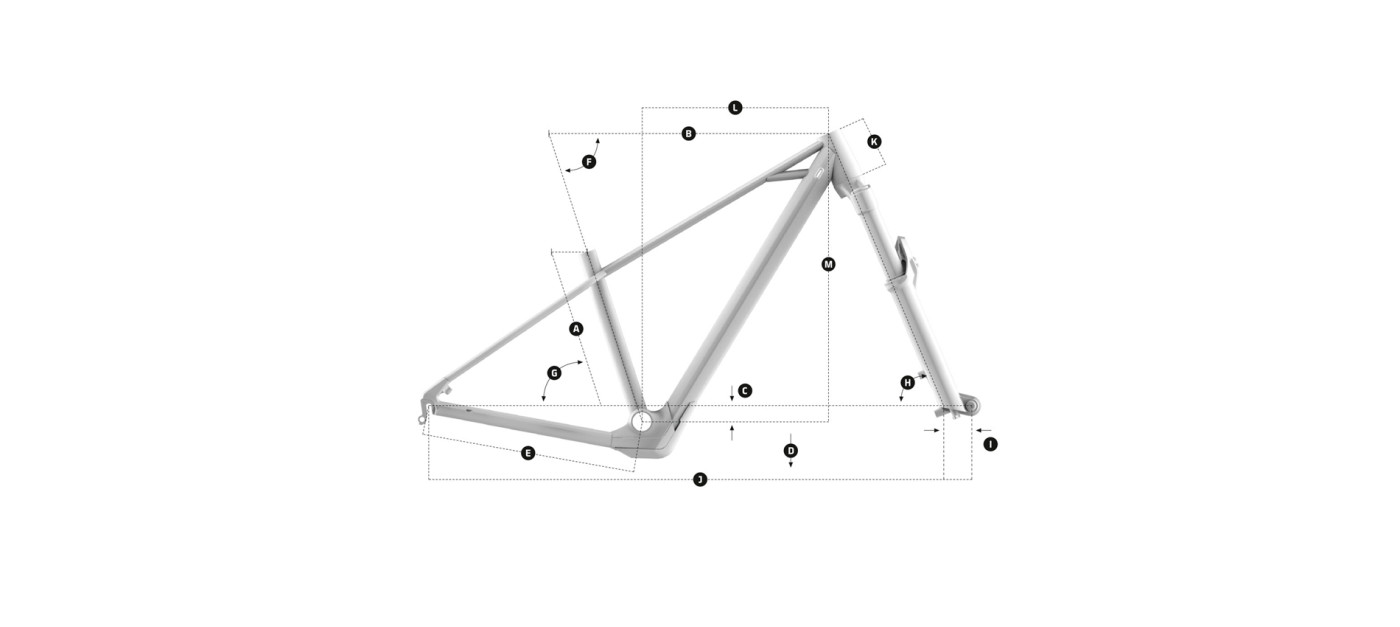

Geometry
|
Frame size
| Play 26 | |
|---|---|---|
| A | Seattube length | 350mm |
| B | Toptube length | 567 mm |
| C | Bottom bracket drop | -30mm |
| D | Bottom bracket height | 300 mm |
| E | Chainstay length | 420 mm |
| F | Seat tube angle | 72º |
| G | Effective seattube angle | 72º |
| H | Headtube angle | 68º |
| I | Fork Offset | 39mm |
| J | Wheelbase | 1060 mm |
| K | Headtube length | 100 mm |
| L | Reach | 390 mm |
| M | Stack | 546 mm |
- FRAME:
- Play 26 6061 Alloy Stealth evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
- FRAME MATERIAL:
- Aluminium
- FORK BRAND:
- X-Fusion
- FORK:
- X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
- FORK TRAVEL:
- 120 mm
- MOTOR:
- Mahle
- MOTOR CONTROLLER:
- Included
- DISPLAY:
- Mahle-Ebikemotion
- DRIVE UNIT:
- Mahle X35
- BATTERY:
- Mahle 250Wh
- RANGE EXTENDER:
- N/A
- WHEEL SIZE:
- 26"
- WHEELS:
- MDK-HP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes
- TYRES:
- Kenda Booster 26x2.4 single compound 30TPI, wire bead
- DROPPER SEATPOST:
- Yes
- SEATPOST:
- X-Fusion Manic LC internal, diameter 31.6mm, 1X Remote lever, 100mm
- SADDLE:
- SDG Fly JR
- CRANKSET:
- Sram SX Eagle, DUB axle, Direct mount chain ring, 155mm
- STEM:
- Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
- GRIPS:
- Onoff Beehive, 1lock-on, 135mm
- SHIFTERS:
- Sram Trigger NX Eagle, 12s, X-Actuation 1:1
- BRAKE BRAND:
- Sram
- HYDRAULIC BRAKES:
- Yes
- BRAKES:
- Sram G2 R, 4-piston caliper, Onoff Cnc 180mm IS 6 bolts two-piece rotor, steel-backed organic pads
- REAR DERAILLEUR:
- Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
- CHAIN:
- Sram SX Eagle, 12s, Powerlock
- NUMBER OF GEARS:
- 12 Speed
- PEDALS:
- SDG Slater JR
- FRONT MUDGUARD:
- MTB Monster Mudguard
- PLEASE NOTE:
- Mondraker reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.
