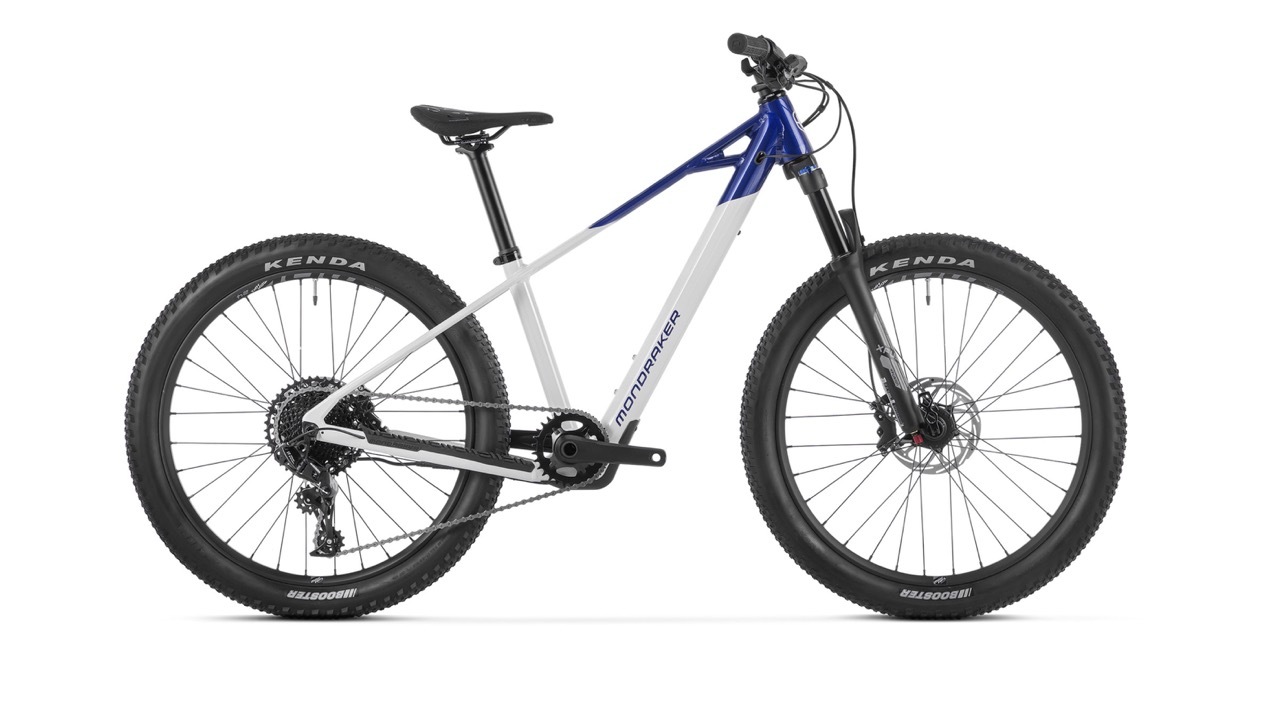

Mondraker Play 24 – Kids’ Electric Hardtail Mountain Bike
Built for Young Trail Riders
The Mondraker Play 24 is a purpose-built kids’ electric hardtail mountain bike designed to open up the trails for younger riders. Combining a lightweight alloy frame with proven e-bike technology, it delivers the perfect balance of confidence, control and capability for aspiring mountain bikers who want to take their riding further.
Frame & Drive System
At the heart of the Play 24 is a 6061 Alloy Stealth Evo hardtail frame, crafted with hydroformed tubing and fully integrated internal cable routing for a clean, modern look. The non-removable 250Wh Mahle Ebikemotion battery is seamlessly housed within the downtube, paired with the Mahle X-35 motor system for smooth, natural pedal-assist power. The slimline Ebikemotion display keeps things simple, giving young riders just the information they need from their junior e-MTB.
Suspension & Wheels
Suspension duties are handled by the X-Fusion Velvet RL 26 fork, offering 100mm of air-sprung travel with adjustable rebound and lockout, tuned specifically for lighter riders. The compact 24” wheels are built around tubeless-ready MDK-HP1 rims and wrapped in grippy Kenda Booster 2.4” tyres, delivering a confident ride with the right mix of rolling efficiency and trail traction – ideal for a kids’ hardtail mountain bike.
Braking & Drivetrain
Braking is provided by powerful Sram DB4 four-piston callipers with 160mm rotors front and rear, ensuring reliable control with lever reach adjustability for smaller hands. The drivetrain is equally trail-focused, with an 11-speed SRAM NX groupset (11-42T cassette and 28T chainring) offering smooth shifting and a wide gear range for technical climbs and fast descents – making the Play 24 a versatile junior e-MTB hardtail.
More Than a Scaled-Down Bike
The Mondraker Play 24 isn’t just a scaled-down adult bike – it’s a properly engineered kids’ hardtail e-MTB, designed to help younger riders build confidence and keep pace on family or group rides. With trail-ready components, modern geometry and Mondraker’s signature ride quality, it delivers the fun, performance and capability the brand is known for.

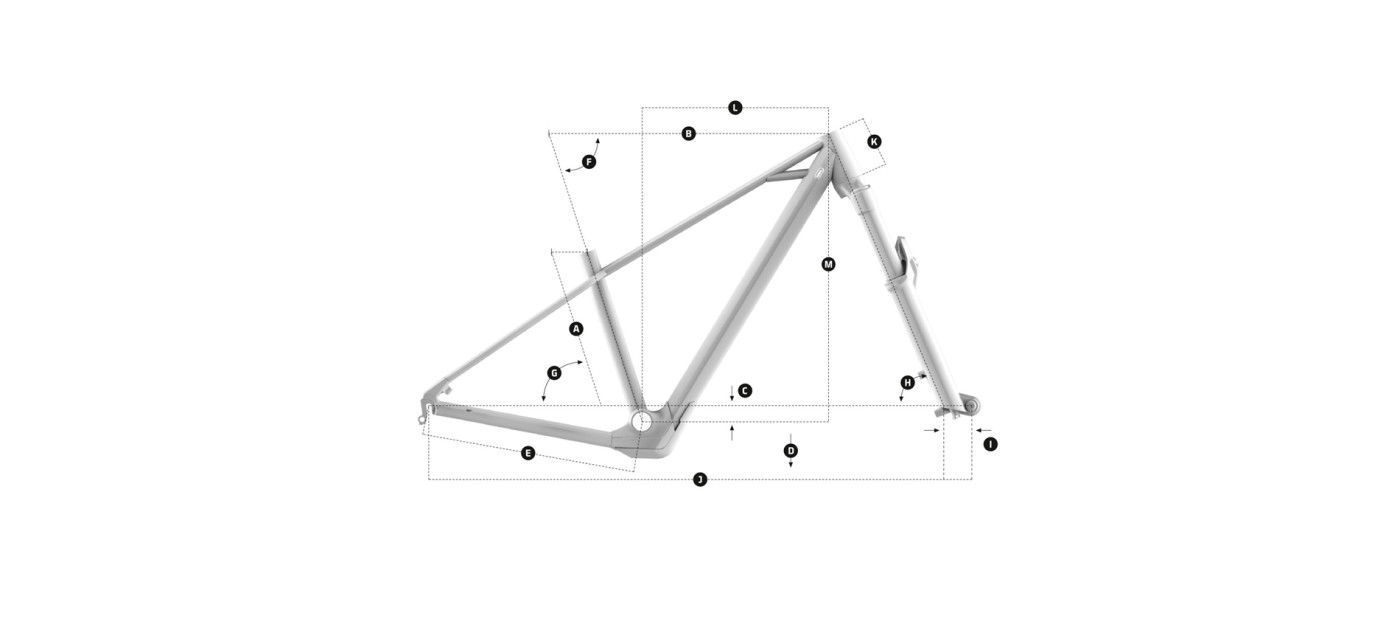

Geometry
|
Frame size
| Play 24 | |
|---|---|---|
| A | Seattube length | 320 mm |
| B | Toptube length | 517 mm |
| C | Bottom bracket drop | -30 mm |
| D | Bottom bracket height | 280 mm |
| E | Chainstay length | 405 mm |
| F | Seat tube angle | 72º |
| G | Effective seattube angle | 72º |
| H | Headtube angle | 68º |
| I | Fork Offset | 39 mm |
| J | Wheelbase | 994 mm |
| K | Headtube length | 100 mm |
| L | Reach | 350 mm |
| M | Stack | 537 mm |
- FRAME:
- Play 24 6061 Alloy Stealth evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
- FRAME MATERIAL:
- Aluminium
- FORK BRAND:
- X-Fusion
- FORK:
- X-Fusion Velvet RL 26, 100mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
- FORK TRAVEL:
- 100 mm
- MOTOR:
- Mahle
- MOTOR CONTROLLER:
- Included
- DISPLAY:
- Mahle-Ebikemotion
- DRIVE UNIT:
- Mahle X35
- BATTERY:
- Mahle 250Wh
- RANGE EXTENDER:
- N/A
- WHEEL SIZE:
- 24"
- WHEELS:
- MDK-HP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes
- TYRES:
- Kenda Booster 24x2.4 single compound 30TPI, wire bead
- DROPPER SEATPOST:
- No
- SEATPOST:
- MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 300mm
- SADDLE:
- SDG Fly JR
- CRANKSET:
- Samox DM 28T steel, 127mm
- STEM:
- Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
- GRIPS:
- Onoff Beehive, 1lock-on, 135mm
- SHIFTERS:
- Sram Trigger NX Eagle, 12s, X-Actuation 1:1
- BRAKE BRAND:
- Sram
- HYDRAULIC BRAKES:
- Yes
- BRAKES:
- Sram G2 R, 4-piston caliper, Onoff Cnc 180mm IS 6 bolts two-piece rotor, steel-backed organic pads
- REAR DERAILLEUR:
- Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
- CHAIN:
- Sram SX Eagle, 12s, Powerlock
- NUMBER OF GEARS:
- 12 Speed
- PEDALS:
- SDG Slater JR
- FRONT MUDGUARD:
- MTB Monster Mudguard
- PLEASE NOTE:
- Mondraker reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.
