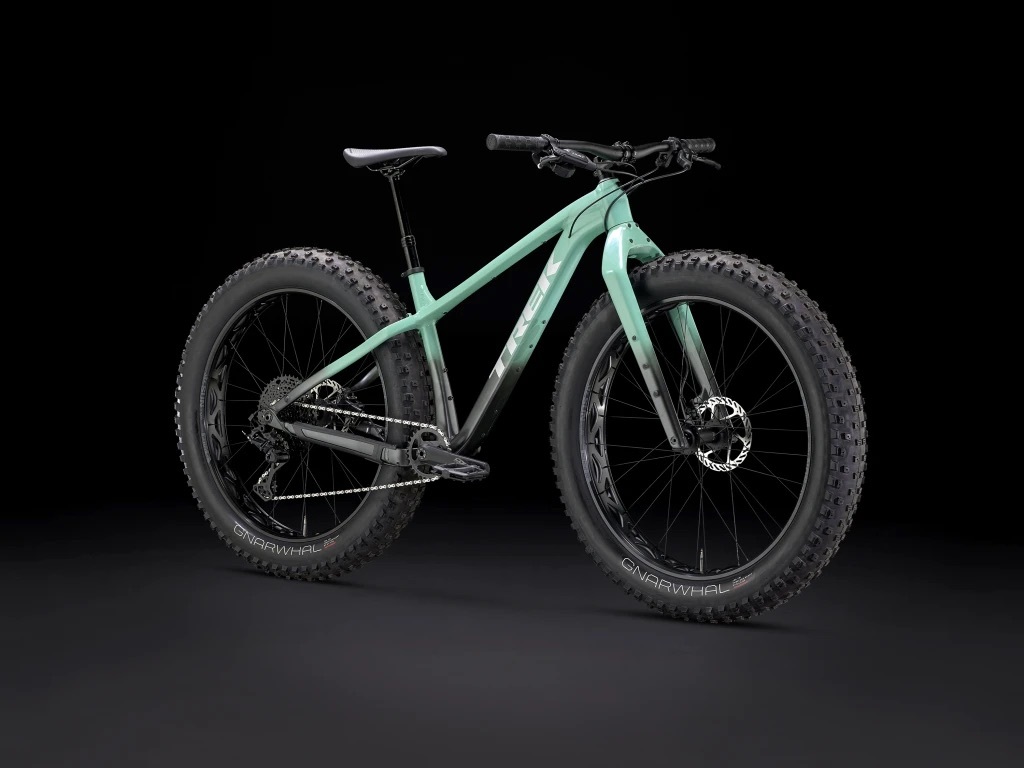

Trek Farley 5 - NO BOUNDARIES
The Trek Farley 5 is a versatile fat bike that can handle a variety of terrain, from snowy trails to sandy deserts. It's new progressive trail geometry makes it even more capable than before, with a slacker head tube angle for stability and a steeper seat tube angle for efficient pedaling. It's carbon fork has plenty of mounts, so you can load up gear for your next adventure.
It's right for you if...
You don't want to limit your adventures to one season. Come snow, sand or singletrack, you're ready to rip and want a bike that can handle it all. You like your days long, and your adventures longer. You appreciate the thoughtful details, like plenty of mounts for hauling a week's worth of gear to keep you going far beyond the last lamp post.
The tech you get
A rugged alloy frame with all-new geometry that's built to handle it all. Huge 4.5-inch tyres that keep you floating over snow, sand, mud and dirt. A carbon fork with plenty of mounts for loading up racks and bags. An internally routed dropper post that lets you get behind the saddle on descents. A wide-range 10-speed Microshift drivetrain with a big cog for taking the sting out of steep climbs when your bike is fully loaded.
The Final Word
For the explorer who knows no bounds, the Farley 5 is the perfect go-anywhere adventure machine. It's built for you to choose your own adventure and load it with all of the racks and bags you need to get you there.
Why you'll love it
1. All the mounts make it easy to add accessories and customise Farley for how you want to roam.
2. It comes with a carbon fork that has lower leg mounts for gear cages, mounts for our custom front rack and rubber bumpers to protect the dropouts when the front wheel is removed.
3. Its huge 4.5-inch tyres will keep you floating over snow, sand, mud and dirt,
4. The new progressive trail geometry feels more capable and confident than ever.
The internally routed dropper post lets you move around on the bike and get behind the saddle on steep descents.
Geometry
Frame Size Letter | S | M | L | XL |
---|---|---|---|---|
Wheel Size | 27.5" | 27.5" | 27.5" | 27.5" |
A - Seat tube length | 38.0 | 42.0 | 45.0 | 49.0 |
B - Seat tube angle | 72.5° | 72.5° | 72.5° | 72.5° |
Effective seat tube angle | 74.0° | 74.0° | 74.0° | 74.0° |
C - Head tube length | 9.0 | 10.0 | 11.5 | 13.0 |
D - Head angle | 68.5° | 68.5° | 68.5° | 68.5° |
E - Effective top tube length | 56.5 | 59.8 | 63.3 | 67.2 |
F - Bottom bracket height | 32.0 | 32.0 | 32.0 | 32.0 |
G - Bottom bracket drop | 6.5 | 6.5 | 6.5 | 6.5 |
H - Chainstay length | 45.0 | 45.0 | 45.0 | 45.0 |
I - Offset | 4.2 | 4.2 | 4.2 | 4.2 |
J - Trail | 10.7 | 10.7 | 10.7 | 10.7 |
K - Wheelbase | 109.7 | 113.1 | 116.6 | 120.7 |
L - Standover | 73.0 | 74.0 | 76.0 | 78.0 |
M - Frame reach | 40.0 | 43.0 | 46.0 | 49.5 |
N - Frame stack | 58.9 | 59.9 | 61.3 | 62.6 |
- FRAME:
- Alpha Platinum Aluminium, tapered head tube, top tube bag mounts, strapless full frame bag mounts, downtube mudguard mount, lower downtube accessory mount, seat stay rear rack mounts, internal rear derailleur and dropper post routing, threaded BB, UD
- FRAME MATERIAL:
- Aluminium
- FORK BRAND:
- Trek (Rigid)
- FORK:
- Farley carbon, tapered alloy steerer, crown rack mounts, lower leg cage mounts, 150x15 mm thru axle
- FORK TRAVEL:
- Rigid Fork
- WHEEL SIZE:
- 27.5 +
- WHEELS:
- Rim: SUNRingle Mulefut 80 SL, 32-hole cutout / Front Hub: Bontrager alloy, sealed bearing, 6-bolt disc, 150x15 mm thru axle / Rear Hub: Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano 10 freehub, 197x12 mm thru axle
- TYRES:
- Bontrager Gnarwhal Team Issue, Tubeless Ready, Inner Strength sidewalls, studdable, aramid bead, 120 tpi, 27.5x4.50'"'
- DROPPER SEATPOST:
- Yes
- SEATPOST:
- Size S: TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length / Size M: TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length / Size L, XL: TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
- SADDLE:
- Bontrager Verse P3, steel rails
- CRANKSET:
- Size S, M, L: FSA Comet, 30T, 170 mm length / Size XL: FSA Comet, 30T, 175 mm length
- STEM:
- Size S: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length / Size M: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length / Size L, XL: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
- GRIPS:
- Bontrager XR Trail Comp, nylon lock-on
- SHIFTERS:
- microSHIFT Advent X SL-M9605, 10-speed
- BRAKE BRAND:
- SRAM
- HYDRAULIC BRAKES:
- Yes
- BRAKES:
- SRAM Level hydraulic disc
- REAR DERAILLEUR:
- microSHIFT Advent X RD-M6205AM, 48T max cog
- CHAIN:
- KMC X10, 10-speed
- NUMBER OF GEARS:
- 10 Speed
- PEDALS:
- Available for Purchase
- FRONT MUDGUARD:
- MTB Monster Mudguard
- EXTRAS:
- N/A
- PLEASE NOTE:
- Trek reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.
