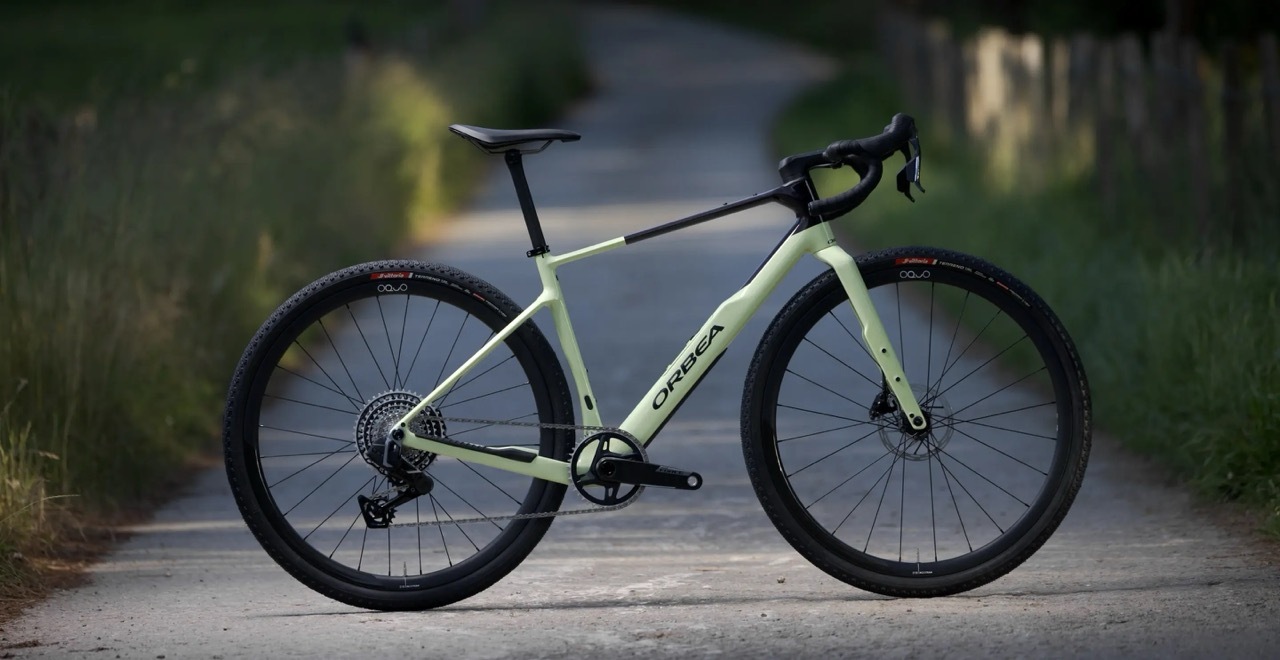

Orbea Terra 2026
Do you yearn to roam off the map or crave the challenge of your next long-distance gravel race? The Terra gravel bike is ready to conquer any adventure. With generous tyre clearance and a vibration-damping frame design, this gravel bike smooths out rough terrain and keeps you riding harder for longer. Multiple mounting points provide plenty of options to secure your gear, making it as capable for bikepacking as it is for racing. Whether you’re pushing the pace to the horizon or exploring far beyond the beaten path, the Terra gravel bike is built to take you wherever the ride leads.
Simplified Performance
Equipped with a 1x drivetrain, the Terra delivers a wide gear range with simplified shifting — ideal for long rides over mixed terrain. Clearance for wide tyres gives you the freedom to run rubber that matches your riding style, from fast-rolling 38s to adventure-ready 45s, while internal cable routing and sleek tube profiles keep the lines clean and modern.
Comfort for the Long Haul
The Terra isn’t just about performance — it’s engineered for all-day comfort too. Compliance in the frame, carefully considered geometry, and a carbon fork ensure a smooth ride even when the ground beneath you is anything but. With mounting points for extra bottles and bikepacking gear, it’s as capable of going fast on a Sunday blast as it is heading off-grid for a weekend escape.
Ride Beyond the Road
Whether you’re chasing speed, building endurance, or simply seeking new horizons, the Orbea Terra 2026 is a gravel bike that expands your riding beyond the limits of the road.

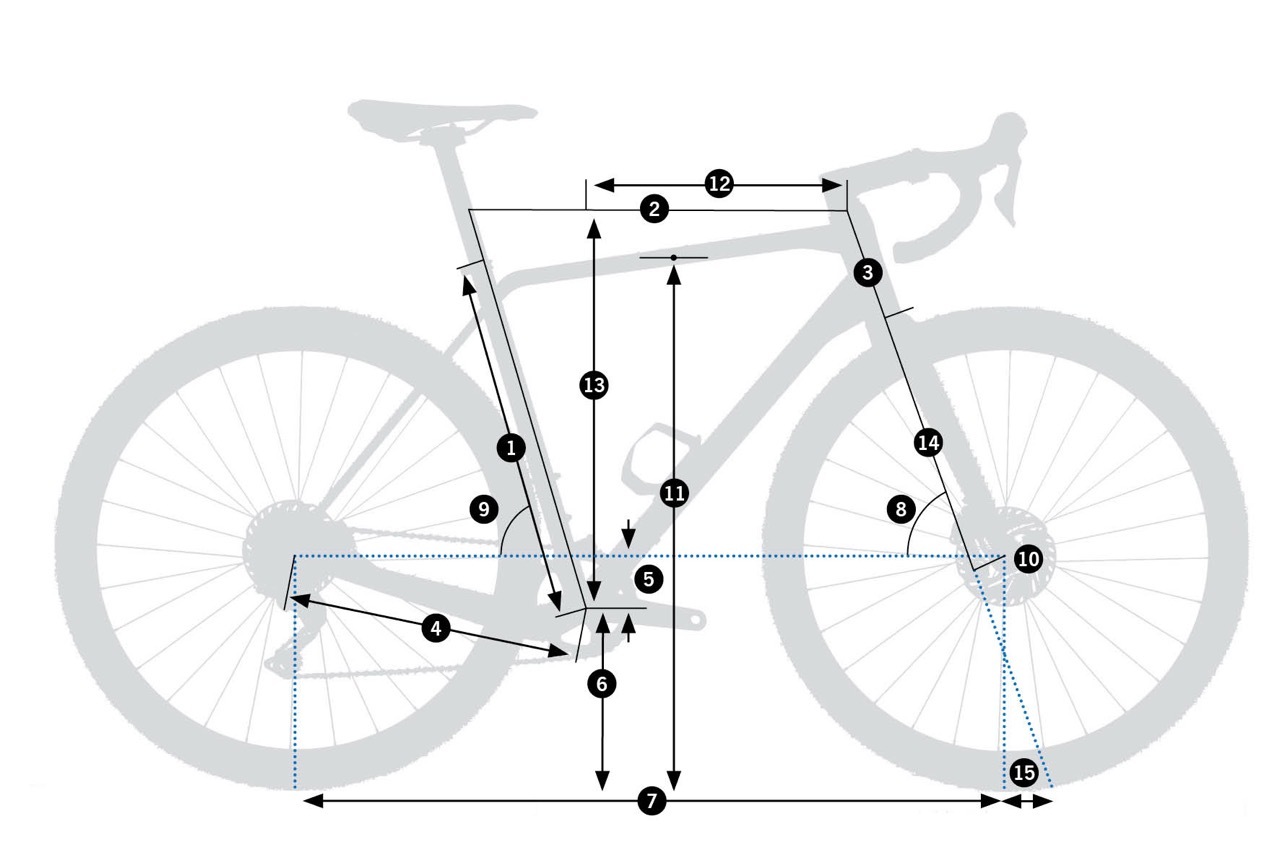

Geometry
| XS | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|
| Seat Tube (C-T) | 425 | 458 | 491 | 524 | 557 | 590 |
| Top Tube (EFF) | 526 | 539 | 558 | 570 | 590 | 603 |
| Head Tube | 110 | 131 | 152 | 178 | 199 | 220 |
| Chainstay | 430 | 430 | 430 | 430 | 430 | 430 |
| BB Drop | 78 | 78 | 78 | 76 | 76 | 76 |
| BB Height | 263/278 | 263/278 | 263/278 | 265/280 | 265/280 | 265/280 |
| Wheelbase | 1020 | 1030 | 1039 | 1054 | 1063 | 1072 |
| Head Angle | 70° | 70.5° | 71° | 71° | 71.5° | 72° |
| Seat Angle | 74° | 74° | 73.5° | 73.5° | 73° | 73° |
| Rake | - | - | - | - | - | - |
| Standover | 704/718 | 731/746 | 759/773 | 788/803 | 815/830 | 838/853 |
| Reach | 375 | 382 | 389 | 395 | 402 | 409 |
| Stack | 526 | 548 | 570 | 592 | 614 | 636 |
| Fork Length | 390 | 390 | 390 | 390 | 390 | 390 |
| Trail | 66/71 | 62/68 | 59/64 | 59/64 | 56/61 | 53/58 |
- FRAME:
- Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system
- FRAME MATERIAL:
- Aluminium
- FORK BRAND:
- Orbea (Rigid)
- FORK:
- Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
- FORK TRAVEL:
- Rigid Fork
- WHEEL SIZE:
- 700 c
- WHEELS:
- Alloy, Tubeless, 700c, 21c
- TYRES:
- Vittoria Terreno Dry Gravel 700x38c
- DROPPER SEATPOST:
- No
- SEATPOST:
- SP 0.2 Carbon, 27.2mm, Setback 20
- SADDLE:
- Prologo Akero AGX black rails size 155mm
- CRANKSET:
- Shimano GRX RX610 40t
- STEM:
- OC Road Performance RP22, -5º
- TAPE:
- Orbea Eva
- SHIFTERS:
- Shimano GRX RX610
- BRAKE BRAND:
- Shimano
- HYDRAULIC BRAKES:
- Yes
- BRAKES:
- Shimano RX400 Hydraulic disc
- FRONT DERAILLEUR:
- N/A
- REAR DERAILLEUR:
- Shimano GRX RX822 GS
- CHAIN:
- Shimano M6100
- NUMBER OF GEARS:
- 12 Speed
- PEDALS:
- Available for Purchase
- FRONT MUDGUARD:
- MTB Monster Mudguard
- EXTRAS:
- N/A
- PLEASE NOTE:
- Orbea reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.
