Orbea Kemen Adv
The Orbea Kemen Adv 10 is just as comfortable navigating city streets as it is exploring the hills. It's robust Shimano EP motor and 630Wh battery unlock endless possibilities, while a versatile selection of accessories lets you easily tailor the Kemen to suit any adventure your day may bring.
Key Features:
Powerful EP6 Motor: The powerful EP motor sytem offers 85Nm of assistance to help speed you up the steepest climbs or carry heaby loads.
630Wh Battery: Integrated into the downtube, using the latest cell technology to pack more charge into a smaller space.
Intelligent Lighting System: Every Kemen has a built in, high-tech lighting system which automatically lights the way ahead.

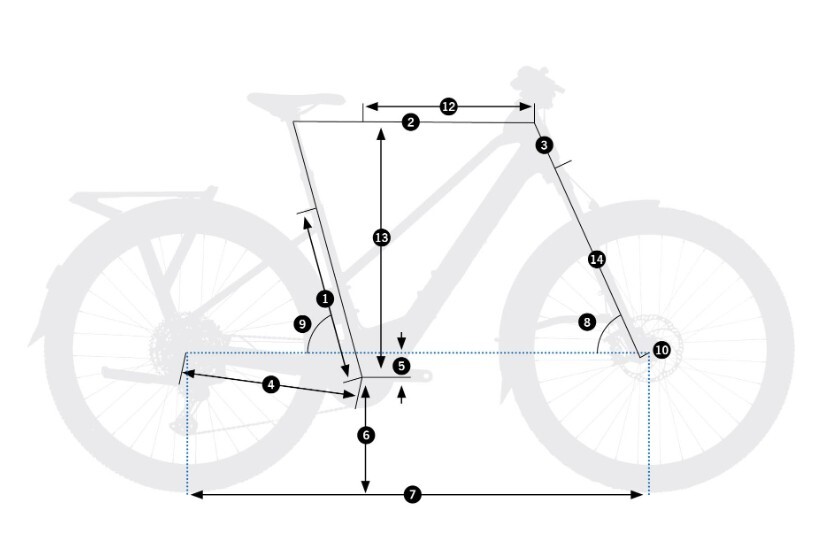

Geometry

S | M | L | |
---|---|---|---|
1 SEAT TUBE (C-T) | 428 | 442,7 | 457,3 |
2 TOP TUBE (EFF) | 585,5 | 613,8 | 643 |
3 HEAD TUBE | 129,5 | 138,6 | 150,6 |
4 CHAINSTAY | 450 | 450 | 450 |
5 BB DROP | 59,8 | 59,8 | 59,8 |
6 BB HEIGHT | 303 | 303 | 303 |
7 WHEELBASE | 1175 | 1198 | 1233 |
8 HEAD ANGLE | 66,5 | 66,6 | 66,6 |
9 SEAT ANGLE | 74 | 74 | 74 |
10 RAKE | 47,5 | 47,5 | 47,5 |
11 STANDOVER | - | - | - |
12 REACH | 409,5 | 436,5 | 463 |
13 STACK | 639 | 649,5 | 660,5 |
14 FORK LENGTH | 523,8 | 523,8 | 523,8 |
15 TRAIL | - | - | - |
FAQs: Orbea Kemen Adv 10 Mid 2025
Basics
What size bike do I need?
What is Invisiframe and is it worth fitting it to the Kemen?
What is tubeless setup and can the Kemen be set up tubeless?
What equipment & info will the bike arrive with?
Is it possible to see the Kemen in your showroom & is it possible to have a test ride or demo it?
How should you clean & maintain the Orbea Kemen?
I'm new to riding, what essential bits of kit do I need to get going?
Where can I ride the Orbea Kemen?
Technical
Where can I find all of the major components that come on the bike?
Can you fit a water bottle on the bike?
What warranty comes on the Orbea Kemen?
Does the Orbea Kemen come with pedals?
Can I get hold of spare / replacement parts easily for the Orbea Kemen?
Can I add upgrades to the bike?
Purchasing
Why choose MTB Monster?
Do you offer 0% finance for the Orbea Kemen?
Do you accept Cycle To Work vouchers? How does it work?
I'm still sorting my payment method, can I reserve a bike?
The bike is not yet in stock, can I pre-order one?
How will the bike be delivered & what are the setup requirements?
What are the delivery options?
Can I collect the bike in the store?
I still have more questions, can I speak to someone?
- FRAME:
- Orbea Kemen Mid Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
- FRAME MATERIAL:
- Aluminium
- FORK BRAND:
- Fox
- FORK:
- Fox 34 Float AWL 100 RAIL QR15x110
- FORK TRAVEL:
- 100 mm
- MOTOR:
- Shimano
- MOTOR CONTROLLER:
- Shimano EN600
- DISPLAY:
- Shimano EN600
- DRIVE UNIT:
- Shimano EP600 (60 Nm)
- BATTERY:
- 630 Wh Battery
- RANGE EXTENDER:
- N/A
- CHARGER:
- Orbea 2.Generation eBike Smart charger 42V/2-4A
- WHEEL SIZE:
- 29
- WHEELS:
- Alloy, Tubeless, 29", 29c, 32H
- TYRES:
- Schwalbe Johnny Watts LR, 60-622, Reflective Tape
- SEATPOST:
- OC Mountain Control MC22, 31.6mm, Dropper
- SADDLE:
- Selle Royal Vivo Ergo
- CRANKSET:
- Shimano Steps EM600
- STEM:
- TBC
- GRIPS:
- TBC
- SHIFTERS:
- Shimano XT M8130 Link Glide
- BRAKE BRAND:
- Magura
- HYDRAULIC BRAKES:
- Yes
- BRAKES:
- Magura MT5N(f)/MT4N(r) Hydraulic Disc Easy Route Connection
- REAR DERAILLEUR:
- Shimano XT M8130 Link Glide SGS Shadow Plus
- CHAIN:
- KMC eGlide
- NUMBER OF GEARS:
- 11 Speed
- PEDALS:
- VP-537 Black
- FRONT LIGHT:
- Supernova Starstream Pro, High Beam
- REAR LIGHT:
- Supernova TL3 Z
- KICKSTAND:
- Massload rear adjustable
- FRONT MUDGUARD:
- Curana Apollo Orbit 70mm
- REAR MUDGUARD:
- Curana Apollo Orbit 70mm
- BELL:
- TBC
- PANNIER CARRIER:
- TBC
- EXTRAS:
- N/A
- PLEASE NOTE:
- Orbea reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.
