Mountain Bike Suspension Fork Guide

Posted by Paul Hoyle on 3rd Oct 2025

Mountain Bike Suspension Fork Guide

Forks are the front suspension on a bike. Forks like all suspension moves up and down in a controlled manner to track ground and absorb impacts.

There are multiple components that go into making a fork and these affect its specification and sometimes its intended use.

Damper:

The damper is a key component of all suspension, this is used to regulate how fast the fork moves into its travel (Compression) and how fast it returns to full travel (Rebound).

  • The low speed circuit affects behaviour during slower movements. Such as climbing, cornering, and small bumps. This affects sensitivity and overall feel.
  • The high speed circuit affects response to sudden,  high-impact hits, like drops, jumps, and large rocks. This impacts the suspension's ability to absorb and dissipate energy from big impacts, preventing harsh bottom outs, maintaining control.
  • Lock out: The lockout closes off the compression, making the suspension a lot firmer for ease when pedalling.

Stanchion:

The forks stanchions are the smoothed cylindrical part that ‘travels’ into the fork lowers, these contain both the damper and the air spring / physical spring on either side of the fork. These are one of the main structural components of the fork and they play a crucial part in bike support, the bikes travel and the overall shock absorption.

Stanchion Width:

  • This is just the diameter of a stanchion. This affects stiffness and usually the overall travel of a bike, as a stiffer fork will take bigger loads allowing it to be able to travel further.

Stanchion Coating:

  • Designed to reduce friction allowing the fork to move slowly through its travel.

Why do these things have such an impact on choosing a fork and what are the key points I should consider when looking at my fork options?

What terrain are you riding?

  • If you’re riding along bridle paths and canals, you would want a smaller stanchion, less travel fork as this will provide comfort whilst also keeping the overall weight of the bike down.
  • If you’re riding the downhill track all day you’ll need a big stanchion, long travel fork that can take the big impacts and fast corners.
  • If you’re looking at a good all rounder that copes well on most trails especially trail centres you'll be looking at the mid range such as a 36mm diameter stanchion.
  • For bigger riders, thicker stanchions will provide better stiffness and support. The larger diameter doesn't necessarily hold higher pressure (the internal air spring does that), but it makes the fork less likely to flex or twist under your weight and during hard braking or cornering. This results in more precise steering and better overall control, giving you more confidence on the trail.

    Do you require a lot of adjustability?

    • Minimal adjustability - best for riders who tend to set their bike up once, then leave the setup without often adjusting it.
    • High adjustability - best for riders who like to adjust and fine tuning their bikes depending on terrain and gradients.

    Fox

    Fox are regarded as one of the premier suspension providers and their products are often seen fitted to some of the best bikes on the market. That being said they do have a fork designed for every use and rider.

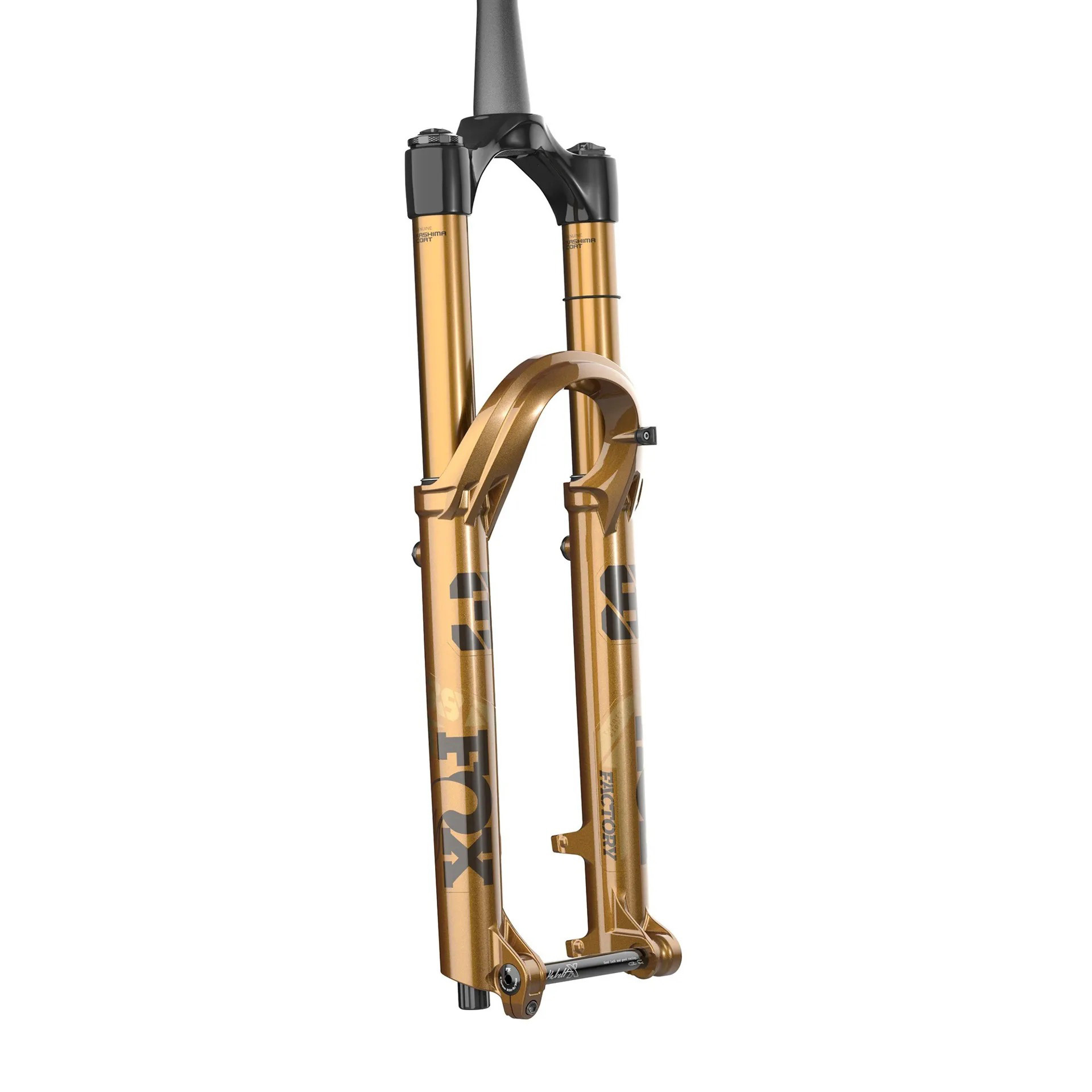

    Fox 38 Factory Gold Fork

    There are a few key components that make up these suspension platforms and they also give them their specification:

    Kashima: This coating gives the stanchions its gold appearance. It is a porous coating that holds oil meaning the suspension can move through its travel smoother.

    Grip X damper: Adjustable compression and rebound with one point of adjustment for each.

    Grip X2 damper: Features adjustable high and low speed on both compression and rebound.

    Fox Fork Series Levels
    Series Damper Kashima Best For
    Performance Base damper No Entry-level to mid-tier
    Performance Elite Best damper No High performance without Kashima price
    Factory Best damper Yes Top-tier performance & finish

    The below table shows the current 2025 Fox models and how they differ, these almost all come in all three spec levels.

    Fox Fork Models (2025)
    Fox Fork models Stanchion size Available Travel Rotor compatibility Discipline EST Weight
    Taper-Cast 32mm 40-50 160-180 Gravel 1161g
    32 Step-Cast 32mm 100 160-180 XC 1288g
    34 Step-Cast 34mm 100-120 160-180 XC 1435g
    34 34mm 130-140 180-203 Trail 1800g
    AWL 34mm - 36mm 100-140 180-203 Ebike 1650g
    36 36mm 150-160 180-203 Trail/Enduro 2015g
    36E 36mm 150-160 180-203 Ebike 3560.7g
    38 38mm 160-180 203 Enduro 2440g
    40 40mm 200 203 Downhill 2770g

    Marzocchi

    Marzocchi was taken over by Fox and their products contains some of the Fox technologies we discussed earlier.

    Marzocchi products are known for their reliability, their components are often slightly heavier but the materials are often very durable.

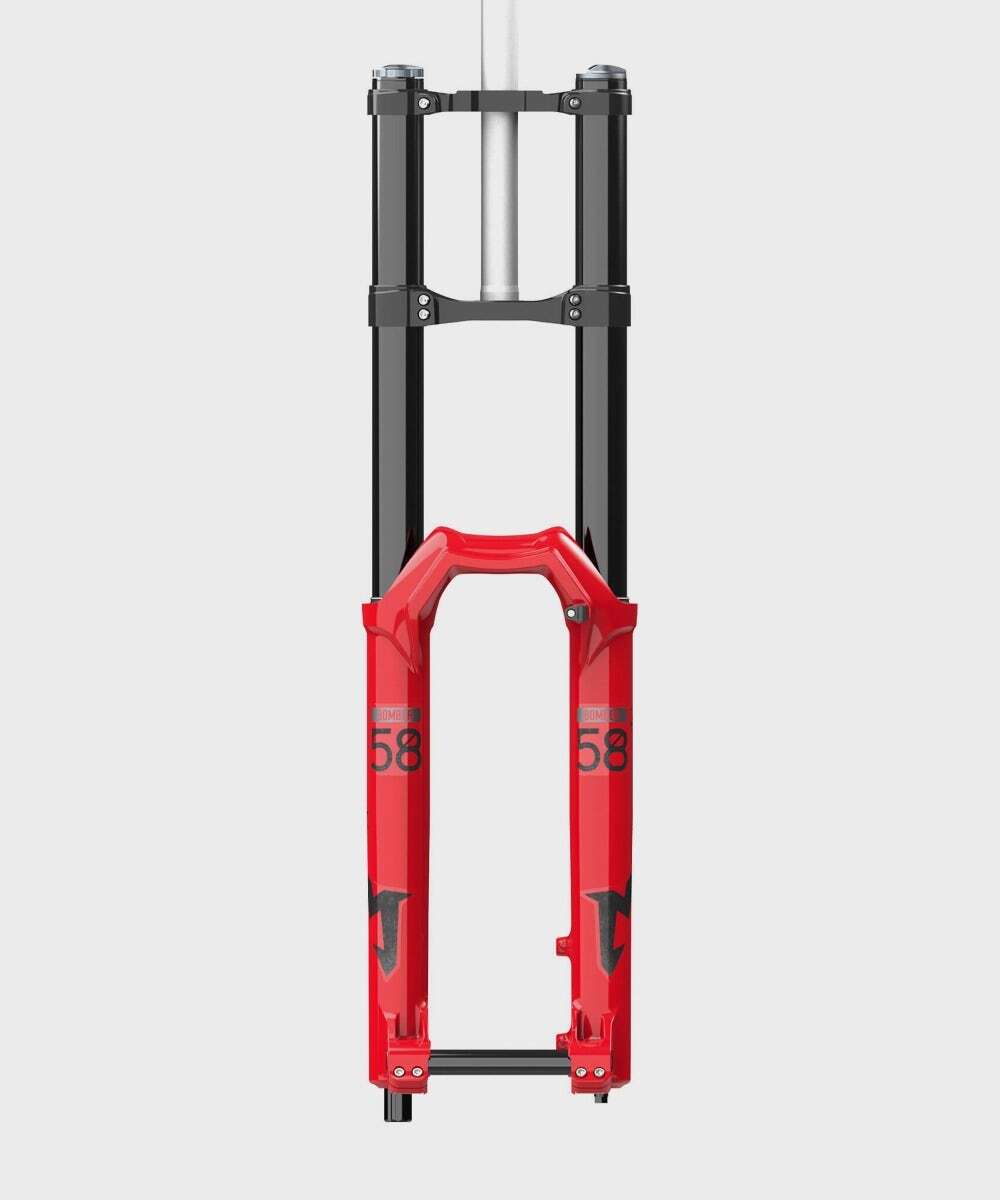

    Marzocchi suspension fork

    Marzocchi Fork Models
    Marzocchi Fork models Stanchion size Available Travel Rotor compatibility Discipline EST Weight
    Bomber Z2 34mm 120-150 180-203 XC / Trail 1995g
    Bomber Z2 E 34mm 120-150 180-203 Trail / Ebike 1995g
    Bomber Z1 Coil 36mm 140-170 180-203 Trail 2245g
    Bomber Z1 36mm 140-170 180-203 Trail/Enduro 2245g
    Bomber Z2 E 36mm 140-170 180-203 Trail / Ebike 2245g
    Bomber DJ 36mm 100 160 Dirt Jump 2095g
    Super Z 38mm 170-190 203 Enduro / Freeride 2180g
    Bomber 58 40mm 203 203 Freeride 2800g

    RockShox

    Like Fox, Rockshox are world renowned for their suspension platforms and they offer a huge range to cover any customer's needs from entry-level to world cup winning technology.

    Again we will see some main technologies, especially in the higher spec levels:

    Charger 2.1 RC2

    • a high-performance mountain bike fork damper that offers independent high and low-speed compression adjustment for precise control and a customizable ride.

    Charger 3 RC2:

    • high-performance mountain bike fork damper that offers independent high and low-speed compression adjustment, along with a lockout feature for firming up the suspension on smooth terrain.
    • More detailed High speed compression control.

    Debonaire+:

    • type of air spring system used in mountain bike forks and shocks. It's designed to provide a more plush and responsive ride, especially over small bumps.
    • Debonaire+ air spring offers a balance of comfort and support, making it suitable for a wide range of riding styles and conditions.

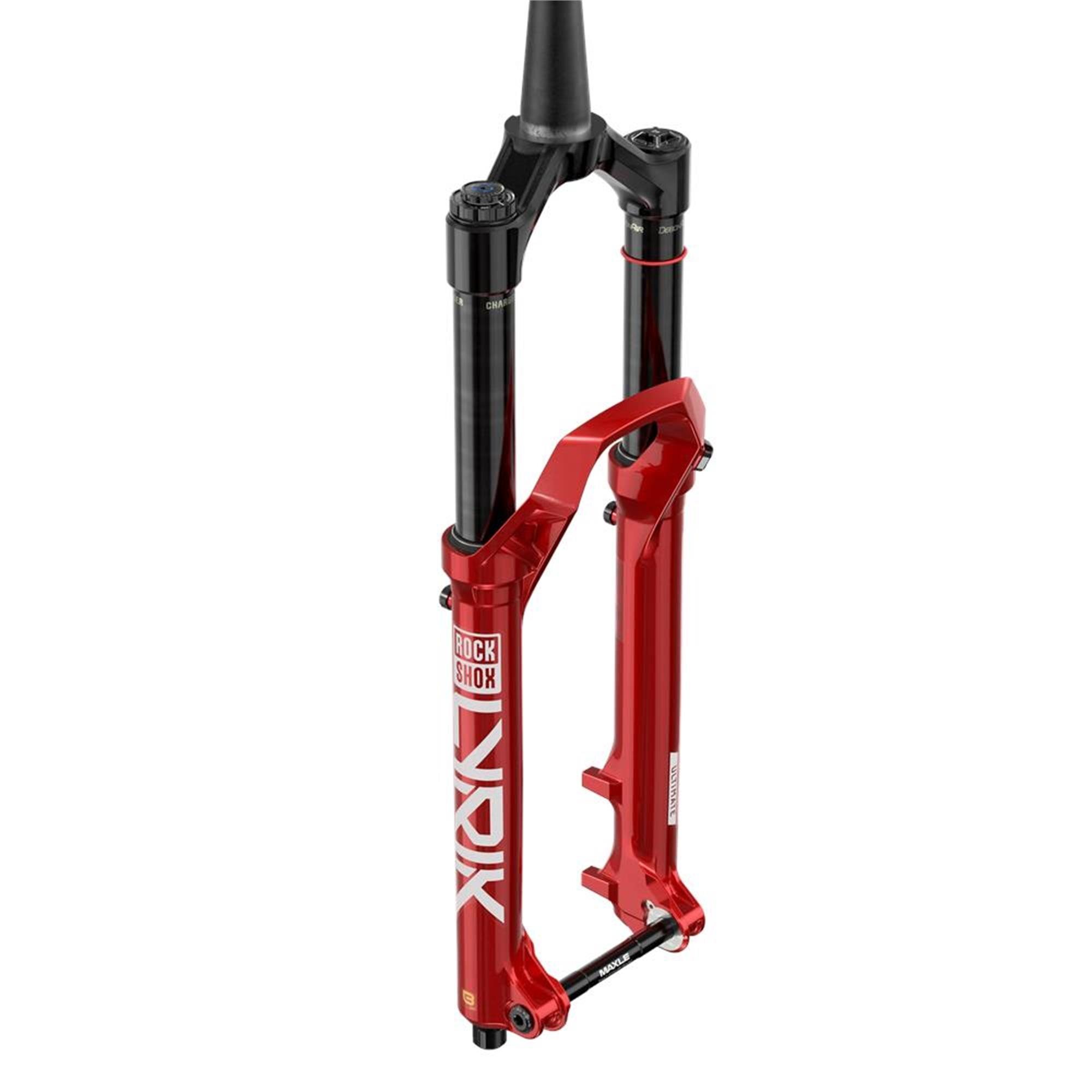

    Rockshox Lyric Ultimate

    We will again see three main spec levels to these forks:

    RockShox Spec Levels
    Level Features
    Select Rebound adjust only
    Select+ Compression + rebound, Charger 2.1 RC2
    Ultimate High/low compression & rebound, Charger 3 RC2, top-tier parts

    RockShox Fork Models
    RockShox Fork models Stanchion size Available Travel Rotor compatibility Discipline EST Weight
    Judy 30mm 80-120 160-220 Trail / Ebike 2.5kg
    Recon 32mm 80-150 160-220 Trail / Ebike 2.3kg
    35 35mm 100-160 180-220 Trail / Ebike 2.25kg
    Domain 38mm 150-180 200-220 Trail / Ebike 2.6kg
    Sid SL 32mm 100-120 160-200 XC 1.35kg
    Sid 35mm 120 180-220 Downcountry 1.47kg
    Pike 35mm 120-160 180-220 Trail 1.88kg
    Pike DJ 35mm 100-140 160 Dirt Jumps 1.88kg
    Lyrik 35mm 150-160 200-220 Enduro 2.08kg
    Zeb 38mm 160-190 200-220 Enduro 2.3kg
    Boxxer 38mm 180-120 200-220 Downhill / Freeride 2.9kg

    Öhlins

    Ohlins are renowned for their high quality suspension systems in motor sports and they have recently moved into the world of mountain bikes and they are arguably making some of the best suspension on the market.

    Their suspension features the most adjustment points on any fork and below are the main technologies found in these forks:

    TTX Damping:

    • The TTX system separates the compression and rebound damping circuits into two distinct tubes. This allows for more precise adjustment and better control over suspension behaviour
    • Offers high and low speed rebound damping

    Two Chamber air spring:

    • The air spring features the usual chamber to add air and control the spring rate, the second chamber controls the ramp up and acts similar to adding volume spacers

    Easy Coil replacement:

    • Ohlins allows for simple swap out from a air spring to coil spring

    Öhlins only comes in one specification level and features all of their mentioned technologies.

    Ohlins front suspension fork
    Öhlins Rear Shock Models (Note: This table appears to be a duplicate from a rear shock article, check source for accuracy)
    Öhlins Rear Shock models Trunnion compatibility EST Weight Piggy Bank Discipline
    TXC2 Yes 255g No XC
    TTX2 Air Yes 477g Yes Enduro/Trail/DH
    TTX22M.2 (coil) Yes 650g Yes Enduro/Trail/DH

    Please note: This guide by MTB Monster is designed to help you understand the technical aspects of bike components. The information is drawn from industry knowledge and the experience of our team. While we strive for accuracy and unbiased comparisons, occasional errors or updates may occur. We always recommend doing your own research before making a final purchase decision.
