Cube Kathmandu Hybrid - Adventure Awaits
The Cube Kathmandu Hybrid EX 800 2025 Easy Entry is an electric mountain bike designed to redefine your adventures. Crafted with precision and innovation, this e-MTB combines a lightweight aluminium frame with a powerful Bosch Performance Line CX Gen 5 motor, delivering a thrilling and efficient ride. Enjoy a smoother ride and improved control with the 100mm travel suspension fork, absorbing the bumps on the ride. Wether your commuting or touring this EMTB is the perfect companion for your electric mountain biking adventures.
The Kathmandu Hybrid EX 800 from CUBE has got your back, wherever you take it. Its powerful Magura MT C ABS hydraulic disc brakes feature an ABS system to prevent the front wheel from losing grip, helping to keep you safe in all weathers and even under heavy braking. The Bosch CX drive has up to 85 Nm of torque in pedal assistance to dish out, backed up by the 800 Wh PowerTube battery and delivered to the rear wheel via Shimano's easy-to-use Cues 11-speed gears. There's a suspension seatpost, adjustable stem and a Suntour Mobie 34 fork to keep you comfortable. The Integrated Carrier 3.0 is adaptable and sturdy enough to take care of pretty much any load-carrying, whether it's for commuting or touring. And there's a full complement of accessories, so you can just concentrate on the ride.
Alluminium Superlight
CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.
Fully intergrated Battery
The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.
Modular Battery System
In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.
Efficient Comfort Geometry
With our specially designed Efficient Comfort Geometry, cycling is a simple pleasure. Whether you're popping across town or exploring further afield, taking a ride with the family or with friends, for work or for pleasure, we've created a ride experience that will have you coming back for more.

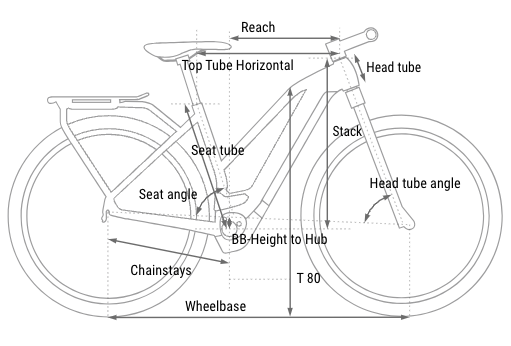

Geometry
| Size | 46 cm | 50 cm | 54 cm | 58 cm |
|---|---|---|---|---|
| Seat tube | 420 | 460 | 510 | 560 |
| Top Tube Horizontal | 590 | 590 | 610 | 630 |
| Seat angle | 73.5° | 73.5° | 73° | 73° |
| Head tube angle | 68° | 68° | 68.5° | 68.5° |
| Chainstays | 499 | 499 | 499 | 499 |
| Head tube | 110 | 110 | 125 | 140 |
| Wheelbase | 1173 | 1173 | 1182 | 1204 |
| BB-Height to Hub | 68 | 68 | 68 | 68 |
| Protrusion height - 80mm | 769 | 777 | 817 | 850 |
| Reach | 401 | 401 | 410 | 426 |
| Stack | 638 | 638 | 654 | 668 |
- FRAME:
- Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube
- FRAME MATERIAL:
- Aluminium
- FORK BRAND:
- SR Suntour
- FORK:
- SR Suntour Mobie 35 EQ Air, ABS, Tapered, 15x110mm, 100mm
- FORK TRAVEL:
- 100 mm
- MOTOR:
- Bosch
- MOTOR CONTROLLER:
- Bosch Smart System LED Remote
- DISPLAY:
- Bosch Smart System Kiox 300
- DRIVE UNIT:
- Bosch Performance Line CX Gen 5 (85 Nm ) Smart System
- BATTERY:
- Bosch PowerTube 800 Wh Battery
- RANGE EXTENDER:
- N/A
- CHARGER:
- Bosch 2A
- WHEEL SIZE:
- 700 c
- WHEELS:
- Rims: CUBE EX25, 32H, Disc, Tubeless Ready / Front Hub: CUBE Engineered By Newmen, 15mm, Boost, 6-Bolt / Rear Hub: CUBE Engineered By Newmen, 12mm, Boost, 6-Bolt
- TYRES:
- Schwalbe Big Apple, Active, 55-622
- SEATPOST:
- CUBE Suspension Seatpost HD, 31.6mm
- SADDLE:
- ACID Sequence Pro Plus
- CRANKSET:
- ACID MTB Hybrid Pro
- STEM:
- CUBE Comfort Stem Pro, 31.8mm, Adjustable
- GRIPS:
- ACID Travel Comfort
- SHIFTERS:
- Shimano Cues SL-U6000, Rapidfire-Plus
- BRAKE BRAND:
- Magura
- HYDRAULIC BRAKES:
- Yes
- BRAKES:
- Magura MT C ABS, Hydr. Disc Brake (203/203)
- REAR DERAILLEUR:
- Shimano Cues RD-U6000-GS, 11-Speed
- CHAIN:
- KMC eGlide
- NUMBER OF GEARS:
- 11 Speed
- PEDALS:
- ACID PP MTB
- FRONT LIGHT:
- ACID Front Light PRO-E 60 X-Connect, 12V, DC
- REAR LIGHT:
- ACID Mudguard Rear Light PRO-E, 12V, DC
- KICKSTAND:
- ACID FM Pure Kickstand
- FRONT MUDGUARD:
- MTB Monster Mudguard
- REAR MUDGUARD:
- ACID 65 Integrated Carrier 3.0
- BELL:
- Easy Bell
- PANNIER CARRIER:
- ACID Integrated Carrier 3.0, CUBE Adapter Compatible
- EXTRAS:
- N/A
- PLEASE NOTE:
- Cube reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.
