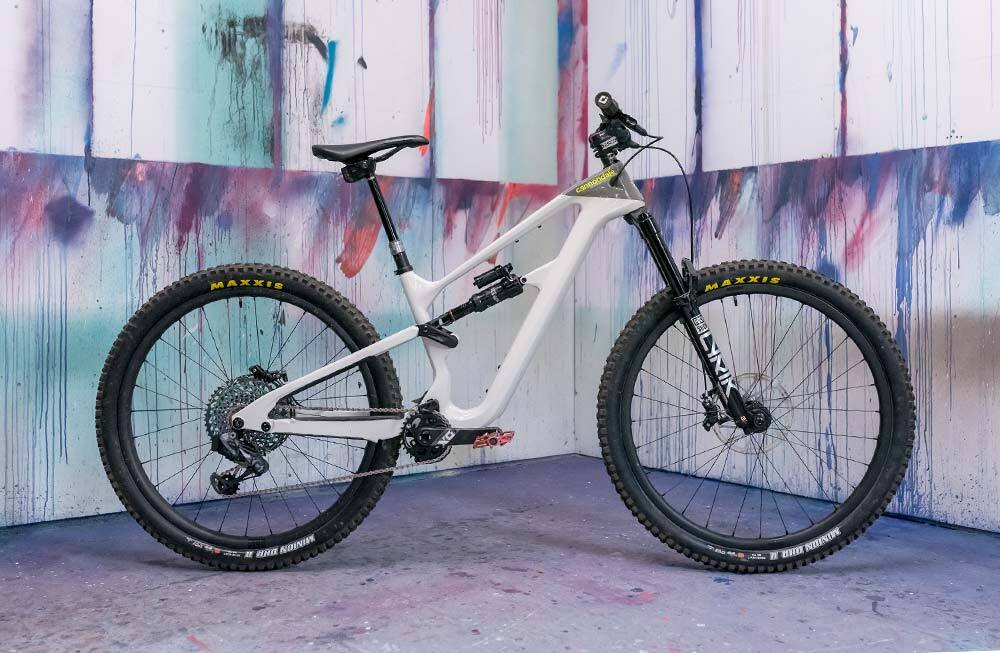

Cannondale Habit Carbon LT 1 - The Thrill Seeker
The Habit CArbon LT 12025 is a progressive trail mountain bike, precisely tuned for controlled chaos. This full suspension MTB is down for the ups but lives to get down, eagerly seeking out challenging terrain and built for the rough and rowdy adventures you crave. Its slacker 64.7° head tube angle and steep 77° seat tube angle put you in an optimal position to shred descents and control your bike with confidence. Plus, thanks to its Proportional Response Design, the geometry, suspension layout and even the chainstay length are all uniquely customized for each size, guaranteeing optimal performance no matter your fit.
Highlights
Full Carbon Frame: Experience the ultimate in lightweight performance and trail-dampening comfort with a full carbon frame.Sram Code R Hydraulic Brakes: With Powerful brakes this MTB ensures immense stopping power when you need it most.
Geometry

SM | MD | LG | XL | |
---|---|---|---|---|
Wheel Size | 29" | 29" | 29" | 29" |
A Seat Tube Length (cm) | 38.0 | 40.0 | 44.5 | 50.0 |
B Top Tube Horizontal (cm) | 56.3 | 59.0 | 61.7 | 65.4 |
C Top Tube Actual (CM) | 53.1 | 55.4 | 57.9 | 61.7 |
D Head Tube Angle | 64.7° | 64.7° | 64.7° | 64.7° |
E1 Seat Tube Angle Actual | 70.1° | 70.6° | 71.6° | 72.6° |
E Seat Tube Angle Effective | 77.1° | 77.1° | 77.1° | 77.1° |
F Standover (cm) | 73.6 | 74.0 | 75.7 | 76.7 |
G Head Tube Length (cm) | 11.0 | 12.0 | 13.0 | 14.0 |
H Wheelbase (cm) | 117.4 | 120.3 | 123.7 | 128.1 |
I Front Center (cm) | 74.1 | 77.0 | 79.9 | 83.8 |
J Chain Stay Length (cm) | 43.5 | 43.5 | 44.0 | 44.5 |
K Bottom Bracket Drop (cm) | 3.4 | 3.4 | 3.4 | 3.4 |
L Bottom Bracket Height (cm) | 34.4 | 34.4 | 34.4 | 34.4 |
M Fork Rake (cm) | 4.2 | 4.2 | 4.2 | 4.2 |
N Trail (cm) | 13.0 | 13.0 | 13.0 | 13.0 |
O Stack (cm) | 62.6 | 63.5 | 64.4 | 65.3 |
P Reach (cm) | 42.5 | 45.0 | 47.5 | 51.0 |
FAQs: Cannondale Habit Carbon LT 1 2025
Basics
What size bike do I need?
What is Invisiframe and is it worth fitting it to the Habit?
What is tubeless setup and can the Habit be set up tubeless?
What equipment & info will the bike arrive with?
Is it possible to see the Habit in your showroom & is it possible to have a test ride or demo it?
What type of bike is the Habit and what is it designed for?
What type of terrain is the Habit ideally suited towards? Singletrack trails with some technical descents. Up to and including red routes at trail centres.
How should you clean & maintain the Habit Carbon LT 1?
I'm new to riding, what essential bits of kit do I need to get going?
Where can I ride the Habit Carbon LT 1?
Technical
Where can I find all of the major components that come on the bike?
Can you fit a water bottle on the bike?
What warranty comes on the Habit Carbon LT 1?
Does the Habit Carbon LT 1 come with pedals?
Can I get hold of spare / replacement parts easily for the Habit Carbon LT 1?
Can I add upgrades to the bike?
Purchasing
Why choose MTB Monster?
Do you offer 0% finance for the Habit Carbon LT 1?
Do you accept Cycle To Work vouchers? How does it work?
I'm still sorting my payment method, can I reserve a bike?
The bike is not yet in stock, can I pre-order one?
How will the bike be delivered & what are the setup requirements?
What are the delivery options?
Can I collect the bike in the store?
I still have more questions, can I speak to someone?
- FRAME:
- Habit Full Carbon, 140mm travel, Proportional Response Suspension and Geo, 55mm chainline, ISCG05, BSA threaded BB, post mount brake, tapered headtube, DirectLine internal cable routing, UDH hanger
- FRAME MATERIAL:
- Carbon
- FORK BRAND:
- RockShox
- FORK:
- RockShox Lyrik Select+, 150mm, DebonAir, 15x110mm thru-axle, tapered steerer, 42mm offset
- FORK TRAVEL:
- 150 mm
- REAR SHOCK:
- RockShox Super Deluxe Select+, DebonAir, 2-pos mode adjust, adjustable reboundRockShox Super Deluxe Select+, DebonAir, 2-pos mode adjust, adjustable rebound
- WHEEL SIZE:
- 29
- WHEELS:
- Rims: WTB KOM Trail i30 TCS, 32h, tubeless ready / Hubs: (F) Formula 15x110mm thru-axle / (R) DT Swiss, Star Ratchet, 12x148mm thru-axle
- TYRES:
- (F) Maxxis Minion DHF, 29x2.5" (27.5x2.5" - XS), 3C, EXO+, tubeless ready / (R) Maxxis Dissector, 29x2.4" (27.5x2.4" - XS), 3C, EXO+, tubeless ready
- DROPPER SEATPOST:
- Yes
- SEATPOST:
- Cannondale DownLow Dropper, internal routing, 31.6, 125mm (XS-S), 150mm (M), 170mm (L-XL)
- SADDLE:
- Cannondale Scoop Shallow Elite, cro-mo rails
- CRANKSET:
- SRAM GX Eagle, DUB, 55mm CL, 30T
- STEM:
- Cannondale 1, 7075 Alloy, 1-1/8", 35mm, 0°
- GRIPS:
- Cannondale TrailShroom
- SHIFTERS:
- SRAM GX Eagle, 12-speed
- BRAKE BRAND:
- Sram
- HYDRAULIC BRAKES:
- Yes
- BRAKES:
- SRAM Code R hydraulic disc, 4-piston, 200/180mm CenterLine rotors, 6-bolt
- REAR DERAILLEUR:
- SRAM GX Eagle Lunar
- CHAIN:
- SRAM GX Eagle, 12-speed
- NUMBER OF GEARS:
- 12 Speed
- PEDALS:
- Available for Purchase
- FRONT MUDGUARD:
- MTB Monster Mudguard
- EXTRAS:
- StrapRack tool/stuff holder
- TYPE OF BIKE:
- Trail
- DESIGNED FOR:
- Exploring new trails or going on longer rides where you encounter varied terrain. More relaxed geometry than a Cross Country bike and an excellent balance of climbing ability and downhill capability making it a great all-rounder
- IDEAL TERRAIN:
- Singletrack trails with some technical descents. Up to and including red routes at trail centres.
- PLEASE NOTE:
- Cannondale reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.
