Posted by Paul Hoyle on 1st Oct 2025
Mountain bike chargers determine how fast you can get back out on your e-bike at 100% charge capacity. It's important to note if you are only going out on 1 ride per day, and you are able to charge your eMTB at home between rides, the rate at which your bike charges is not going to have much impact as all chargers will fully charge between 2-13 hours(from fully drained). However if you are going out on long frequent rides throughout the day, and charging in between these rides, the rate at which your bike charges can impact your time spent in the saddle.
Chargers connect to a port, typically next to or above the motor. They also often connect underneath the downtube.. the port situated at the top or bottom of the frame. This guide covers numerous chargers provided by our brands.
Bosch
Bosch offers 2 chargers currently within their Smart System line up. This guide will compare how fast they charge a 800Wh battery to 100% capacity.
2A Charger
- Lightweight and travel friendly - ideal for smaller batteries or as a portable backup
- Charge time (800Wh) - 12.4 hours to 100%

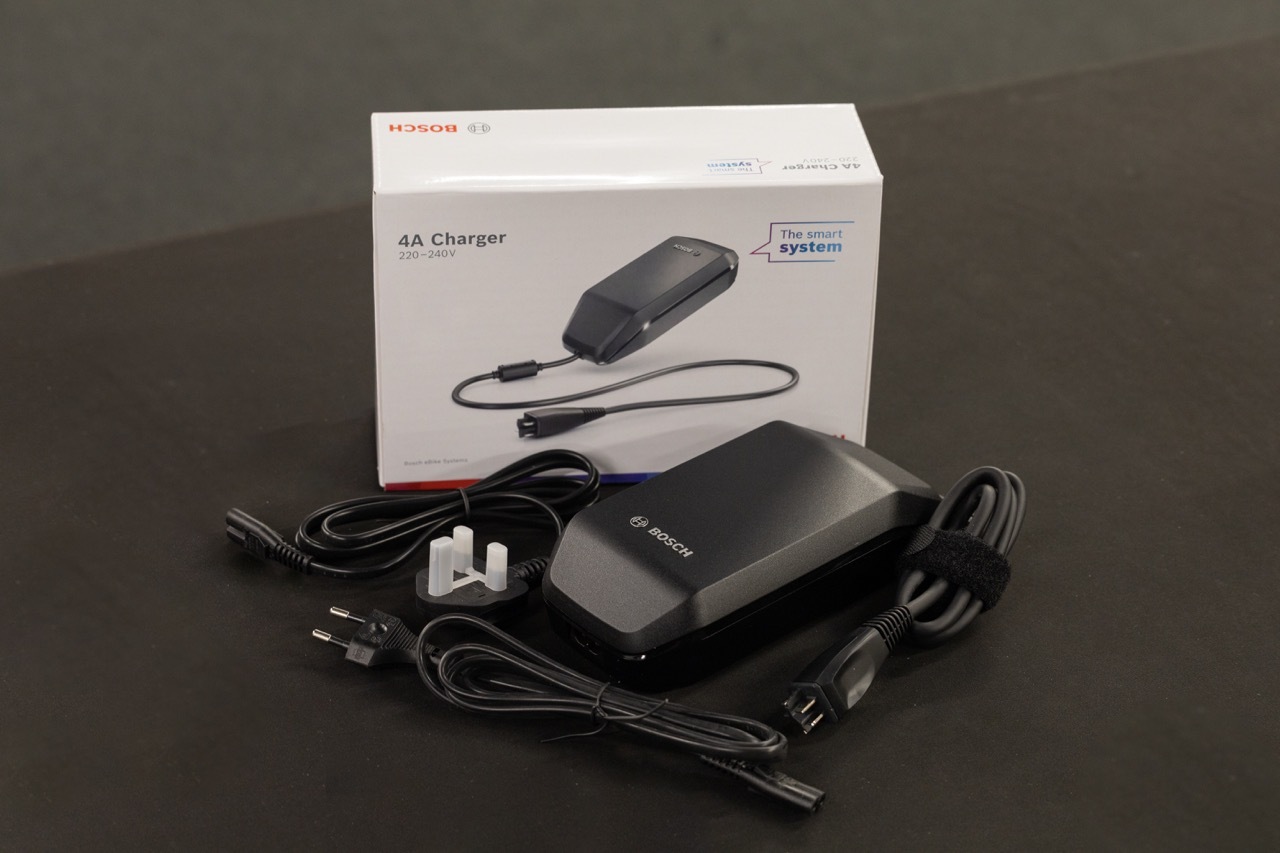

4A Charger -
- The versatile all rounder in Bosch's lineup, offers noticeably faster charge times than the 2A
- Charge time (800Wh) - 6.9 hours to 100%
TQ

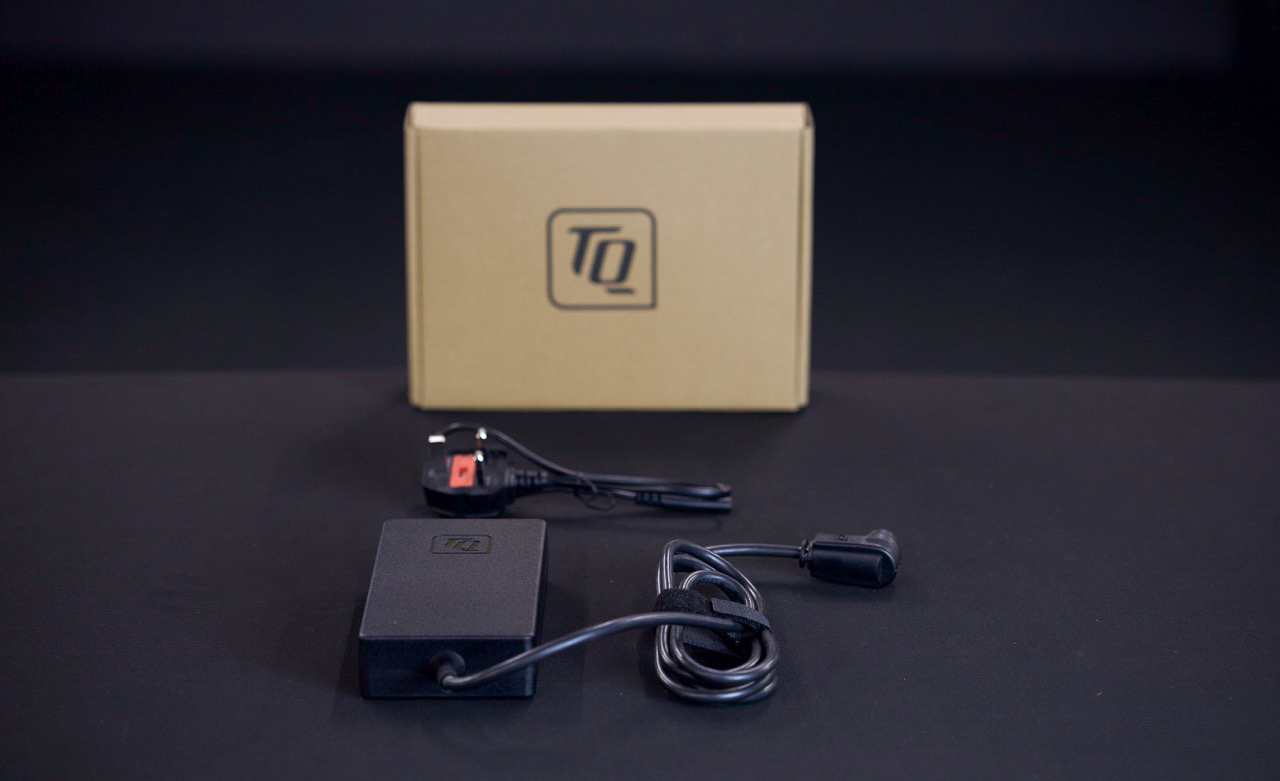

The TQ 4A charger is compact and fast charging, it takes about 2-3 hours to charge the internal battery for the TQ-HPR50 e-bike system.
DJI
The DJI charger uses GaN fast-charging technology with a max output of 508W
- Charge time (800Wh) - 0-75% in about 1.5 hours.
- Highly portable, fits in a frame bag for mid-ride recharges.
Fazua

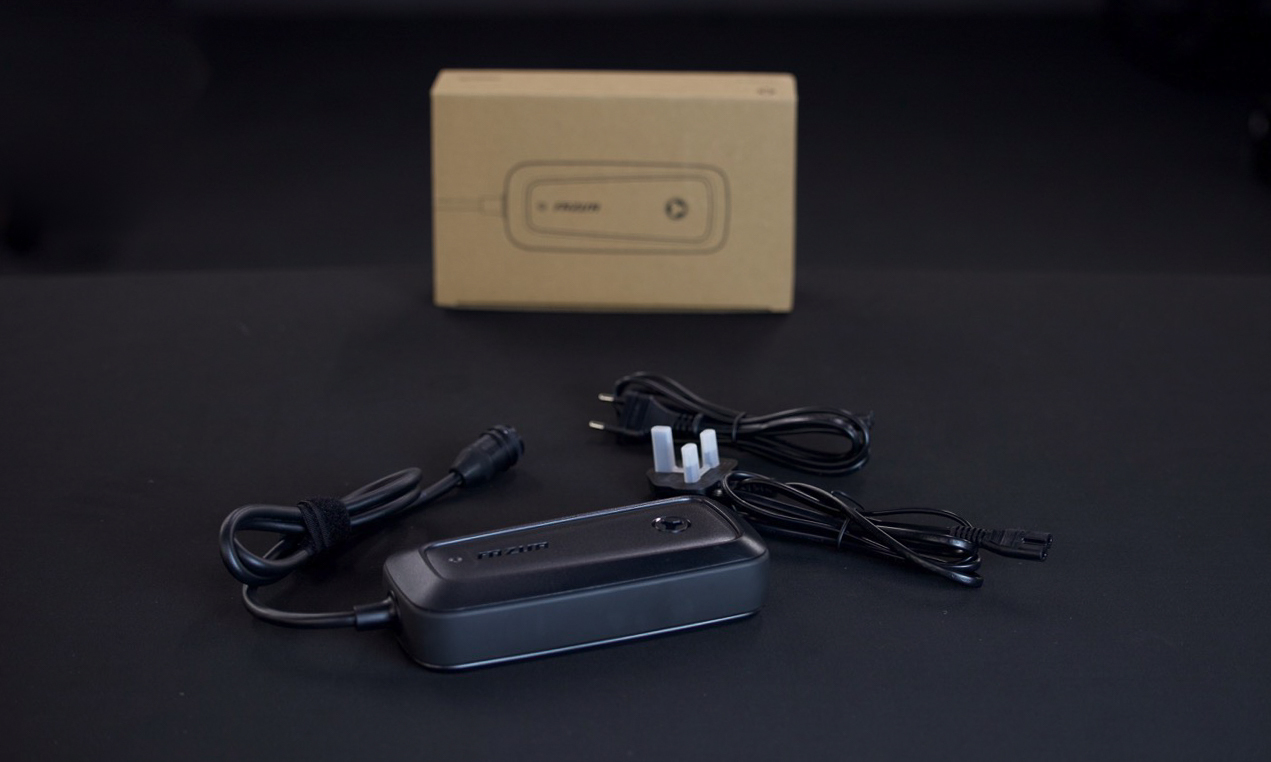

The Fazua Ride 60 Charger is a 3A charger taking 3.5 hours to charge a Fazua battery to 100%.
| Brand / Model | Output | Battery Size Tested | Time to Full Charge | Key Feature |
|---|---|---|---|---|
| Bosch 2A | 2A | 800Wh | ~12.4 hrs | Small & portable |
| Bosch 4A | 4A | 800Wh | ~6.9 hrs | Balanced speed & size |
| TQ 4A | 4A | Internal HPR50 | 2–3 hrs | Compact, trail-friendly |
| DJI GaN | 508W | 800Wh | 75% in 1.5 hrs | Ultra-fast portable charging |
| Fazua Ride 60 | 3A | Fazua Battery | ~3.5 hrs | Lightweight, versatile |
Please note:
This guide by MTB Monster is designed to help you understand the technical aspects of bike components. The information is drawn from industry knowledge and the experience of our team. While we strive for accuracy and unbiased comparisons, occasional errors or updates may occur. We always recommend doing your own research before making a final purchase decision..
