THE PEDAL POWERED DH LEGEND
A heaped shovel of gravity fills the heart of every Evil machine, and our venerated Wreckoning maintains its dark reputation of trail-melting speed. This latest iteration of the 29” wheeled 166mm platform comes Lightly Salted with updates while maintaining the geometry and suspension kinematics that riders love and trust on the burly stuff. Whether racing the clock or punching out to hit the trail, this bike is built to send deep and spin up comfortably for another.
|
 |
|
|

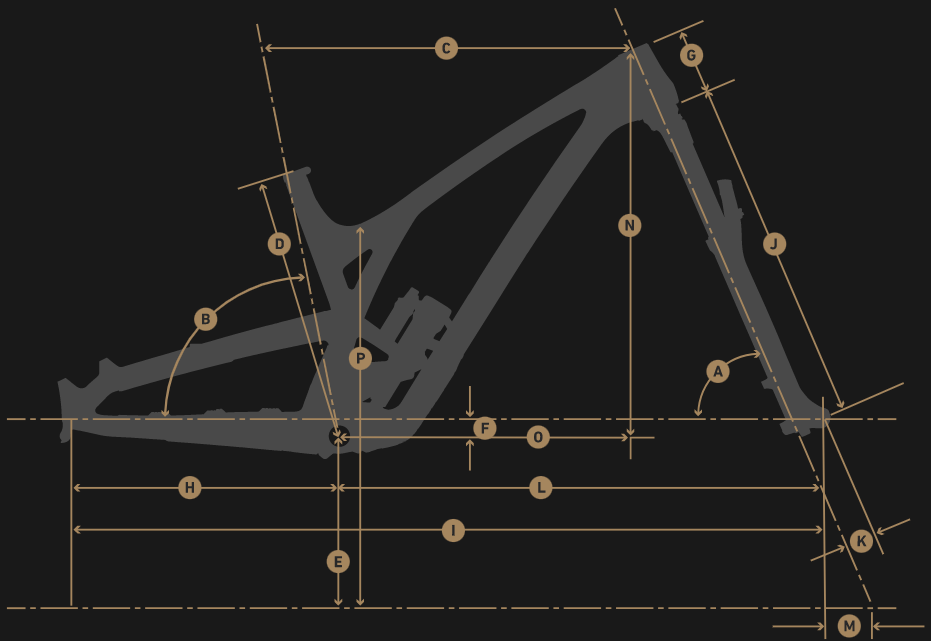

| GEOMETRY - 160MM FORK - LOW |
SMALL |
MEDIUM |
LARGE |
X-LARGE |
| A - Head Tube Angle LOW |
65.2° |
65.2° |
65.2° |
65.2° |
| B - Seat Tube Angle LOW |
77.0° |
77.0° |
77.0° |
77.0° |
| C - Virtual Top Tube Length LOW |
588mm | 23.16" |
608mm | 23.92" |
630mm | 24.81" |
653mm | 25.69" |
| D - Seat Tube Length |
390mm | 15.35" |
425mm | 16.73" |
460mm | 18.11" |
495mm | 19.49" |
| E - Bottom Bracket Height LOW |
351mm | 13.80" |
351mm | 13.80" |
351mm | 13.80" |
351mm | 13.80" |
| F - Bottom Bracket Drop LOW |
23mm | 00.91" |
23mm | 00.91" |
23mm | 00.91" |
23mm | 00.91" |
| G - Head Tube Length |
104mm | 4.09" |
114mm | 4.49" |
127mm | 5.00" |
139mm | 5.47" |
| H - Chain Stay Length LOW |
430mm | 16.93" |
430mm | 16.93" |
430mm | 16.93" |
430mm | 16.93" |
| I - Wheel Base LOW |
1197mm | 47.11" |
1218mm | 47.94" |
1243mm | 48.94" |
|
| J - Axle to Crown |
571mm | 22.48" |
571mm | 22.48" |
571mm | 22.48" |
571mm | 22.48" |
| K - Offset |
42mm | 1.65" |
42mm | 1.65" |
42mm | 1.65" |
42mm | 1.65" |
| L - Front to Center LOW |
767mm | 30.21" |
789mm | 31.05" |
814mm | 32.05" |
839mm | 33.03" |
| M - Trail LOW |
126mm | 4.96" |
126mm | 4.96" |
126mm | 4.96" |
126mm | 4.96" |
| N - Stack LOW |
621mm | 24.43" |
630mm | 24.79" |
641mm | 25.25" |
652mm | 25.68" |
| O - Reach LOW |
445mm | 17.52" |
462mm | 18.19" |
482mm | 18.98" |
502mm | 19.76" |
| P - Standover LOW |
710mm | 27.95" |
719mm | 28.31" |
727mm | 28.62" |
738mm | 29.06" |
| GEOMETRY - 160MM FORK - X LOW |
SMALL |
MEDIUM |
LARGE |
X-LARGE |
| A - Head Tube Angle LOW |
65.2° |
65.2° |
65.2° |
65.2° |
| Head Tube Angle X-LOW |
64.6° |
64.6° |
64.6° |
64.6° |
| Seat Tube Angle X-LOW |
76.5° |
76.5° |
76.5° |
76.5° |
| Virtual Top Tube Length X-LOW |
591mm | 23.27" |
611mm | 24.06 |
633mm | 24.92" |
656mm | 25.83" |
| D - Seat Tube Length |
390mm | 15.35" |
425mm | 16.73" |
460mm | 18.11" |
495mm | 19.49" |
| Bottom Bracket Height X-LOW |
342mm | 13.46" |
342mm | 13.46" |
342mm | 13.46" |
342mm | 13.46" |
| Bottom Bracket Drop X-LOW |
32mm | 1.26" |
32mm | 1.26" |
32mm | 1.26" |
32mm | 1.26" |
| G - Head Tube Length |
104mm | 4.09" |
114mm | 4.49" |
127mm | 5.00" |
139mm | 5.47" |
| Chain Stay Length X-LOW |
432mm | 17.01" |
432mm | 17.01" |
432mm | 17.01" |
432mm | 17.01" |
| Wheel Base X-LOW |
1198mm | 47.17" |
1219mm | 48.00" |
1245mm | 49.00" |
|
| J - Axle to Crown |
571mm | 22.48" |
571mm | 22.48" |
571mm | 22.48" |
571mm | 22.48" |
| K - Offset |
42mm | 1.65" |
42mm | 1.65" |
42mm | 1.65" |
42mm | 1.65" |
| Front to Center X-LOW |
767mm | 30.21" |
789mm | 31.05" |
814mm | 32.05" |
839mm | 33.03" |
| Trail X-LOW |
131mm | 5.15" |
131mm | 5.15" |
131mm | 5.15" |
131mm | 5.15" |
| Stack X-LOW |
626mm | 24.65" |
635mm | 25.01" |
646mm | 25.43" |
657mm | 25.87" |
| Reach X-LOW |
438mm | 17.24" |
455mm | 17.91" |
475mm | 18.70" |
495mm | 19.49" |
| Standover X-LOW |
704mm | 27.72" |
713mm | 28.07" |
721mm | 28.39" |
732mm | 28.82" |
|
- Frame:
- Wreckoning LS 166mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing, Integrated Chain Guide, Threaded BB, UDH Compatible
- Shock:
- Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320
- Headset:
- Cane Creek 40 Series ZS Integrated Tapered Headset - Cups: ZS44/28.6 (Upper) and ZS62/40(Lower), Bearing: 36° x 45° - 41mm (Upper) and 36° x 45° - 52mm (Lower) ZN40 Zinc Coated, Crown Race: 28.6mm x 36° Integrated (Upper) and 40mm x 36° Press Fit (Lo
- Headset Spacers:
- Poly Spacers 5mm black
- Fork:
- Rockshox ZEB Ultimate, Charger 2.1 RC2, 170mm Travel, 44mm Offset
- Handlebar:
- Evil Boomstick 7075 Alloy, Backsweep: 8°, Upsweep: 5° Clamp:35mm, Rise: 35mm, Width: 810mm
- Stem:
- Evil 12 Gauge, Clamp: 35mm, Length: 45mm
- Grips:
- Evil Palmela Handerson Lock-on
- Brake - Front:
- SRAM G2 RS
- Brake - Rear:
- SRAM G2 RS
- Rotor - Front:
- SRAM Center Line, 200mm
- Rotor - Rear:
- SRAM Center Line, 180mm
- Brake Adapter:
- SRAM Post Mount 20mm
- Shifter:
- SRAM GX Eagle, 12sp
- Rear Derailleur:
- SRAM GX Eagle, 12sp
- Cassette:
- SRAM XG-1275-B1 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
- Chain:
- SRAM GX Eagle w/Powerlock
- Crankset:
- SRAM GX Eagle DUB, SUPERBOOST+, 170mm Direct Mount 32t, 56.5mm Chainline, Lunar
- Bottom Bracket:
- SRAM DUB 73mm BSA
- Wheelset - Front:
- Industry Nine Enduro S Hydra Internal Width: 30.5mm, Hub: 110x15mm
- Wheelset - Rear:
- Industry Nine Enduro S Hydra Internal Width: 30.5mm, Hub: 157x12mm
- Tyre - Front:
- Maxxis Minion DHF EXO TR, 29x2.5
- Tyre - Rear:
- Maxxis Minion DHR EXO TR, 29x2.3
- Tubes:
- Stan’s No Tubes Tubeless Sealant
- Seatpost:
- Bike Yoke Revive, S:125mm, M: 160mm, L:185mm XL: 213mm
- Saddle:
- WTB Volt Pro
- Pedals:
- Not included
- Availability:
- Please see above
- Please note:
- Evil reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.
